CAUTION - HAZARD DUE TO INCORRECT OPERATION
Only install software approved by Carl Zeiss Vision on this device.
The device may only be connected to networks protected from public
networks (internet) by state-of-the-art firewalls!

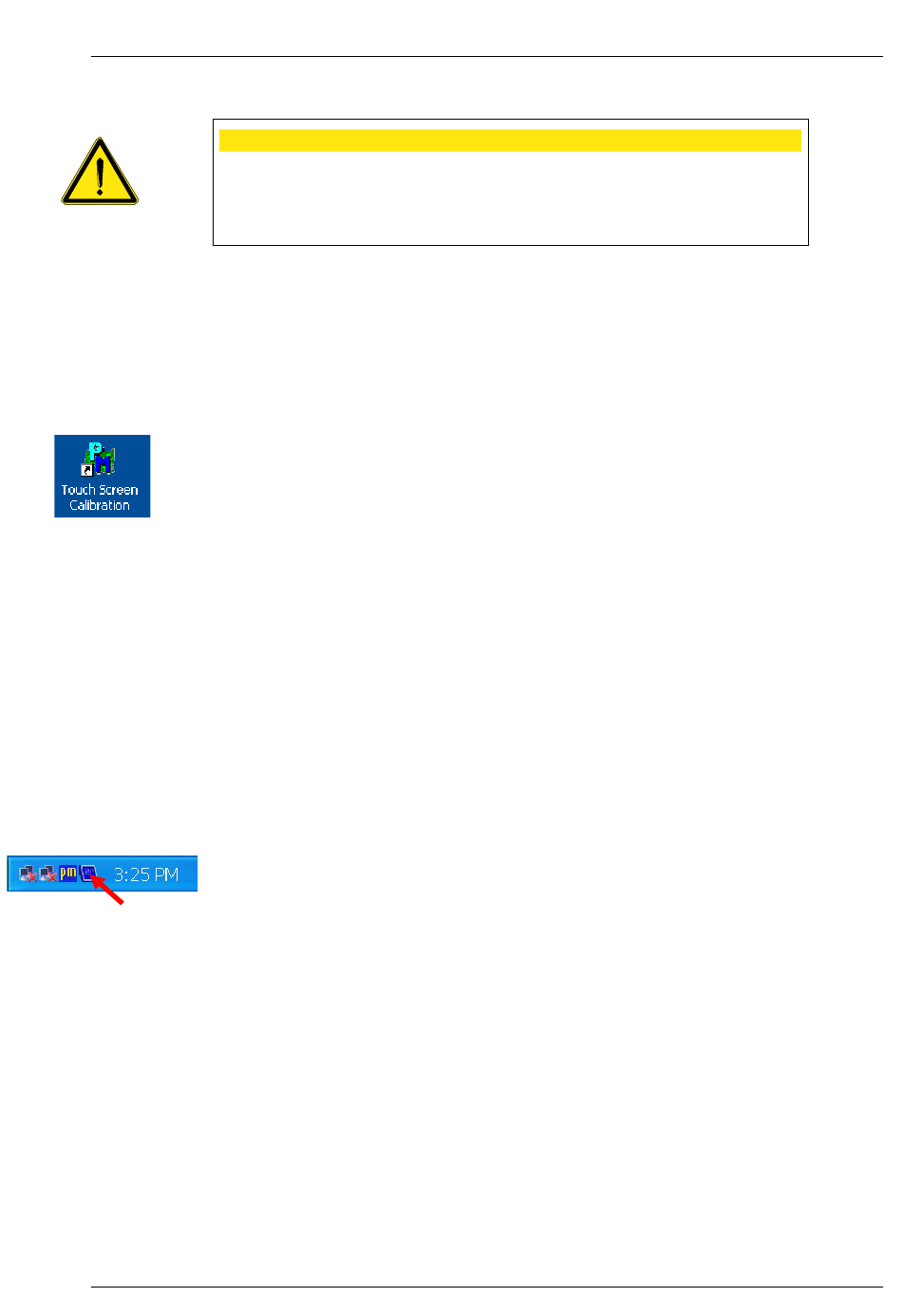

Touch screen calibration

● After starting the i.Profiler
Power down window to switch to the Windows desktop (Administrator
rights required).
● Double click the Touch Screen Calibration icon on the desktop.
● Click the Standard Calibration button in the Calibrate tab.
● Follow the instructions on the screen.
● Confirm the calibration with OK.
● Double click the program icon Save Configurations on the Windows
desktop to save the changed configuration. The device will then restart.

Connecting an external monitor

● Connect the external monitor and the i.Profiler
through the VGA interface (4, Fig. 9).
● First, switch on the monitor and then the i.Profiler
● After starting the i.Profiler
Power down window to switch to the Windows desktop (Administrator
rights required).
● Click the pictogram on the right side of the taskbar.
● Select Graphics Properties... from the menu bar.
● The Intel
® Graphics Media window opens.
● Under Multiple Display on the Display Devices tab, set "Twin" or
"Intel ® Dual Display Clone." Ensure that "Notebook" is selected under
Primary Device, and "Monitor" is selected under Secondary Device.
● Confirm your selection with OK. The Confirm Desktop Change window
opens.
● Confirm with OK.
Installation
plus , use the Close application button in the
plus
plus , use the Close application button in the
using a VGA cable
.
plus
