Altronix Trove Plus kits are pre-wired, pre-assembled and consist of Trove2M2 enclosure/backplane with factory installed Altronix power supply/
charger and sub-assemblies, wire harnesses and finger duct.
Altronix
Model
Number
T2M7XK1V
T2M7XK2V
T2M7XK3V
2.7
T2M7XK1DV
T2M7XK2DV
T2M7XK3DV
• One(1) tamper switch (Altronix Model TS112 or equivalent).
• Cam lock.
• Battery leads.
• 16 Gauge enclosure with ample knockouts for convenient access.
• Enclosure Dimensions (H x W x D): 27.25" x 21.75" x 6.5" (692.2mm x 552.5mm x 165.1mm).
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws in the
wall with the screw heads protruding. Place the enclosure's upper keyholes over the three upper screws, level and secure. Mark the position
of the lower three holes. Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's upper keyholes
over the three upper screws. Install the three lower screws and make sure to tighten all screws.
3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired
location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure
approximately 2" from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the
Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the door of the enclosure.
4. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow104NBV
and corresponding Sub-Assembly Installation Guides for PDS8(CB) and ACMS8(CB) for
further installation instructions.
5. Position Mercury access controller modules over corresponding spacers and depress onto
snap on spacers (Fig. 2-4, pg. 3-5).
6. Connect wire harnesses to Mercury access controller modules (Fig. 2-4, pg. 3-5).
7. Mount backplane to enclosure with hardware.
- 2 -

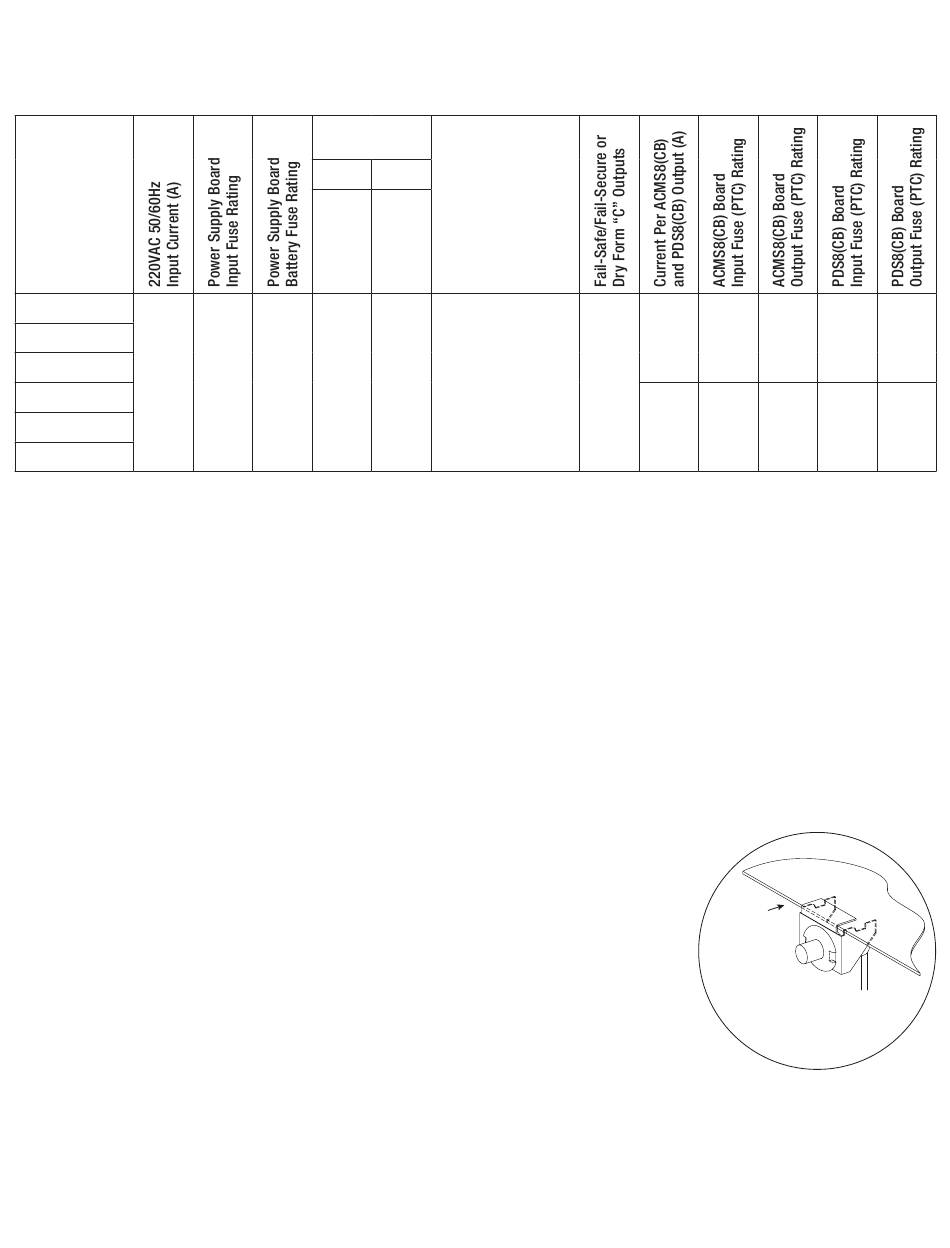

Configuration Chart:

Nominal DC
Output Voltage
[DC] [Aux]
Output Output
Range Range
(VDC) (VDC)
6.3A/ 15A/ 20.17- 20.28-
250V 32V 26.4

Hardware and Accessories:

Installation Instructions:

Overview:
Maximum Supply
Current for Main and
Aux. Outputs on Power
Supply board and
ACMS8(CB) Access
Power Controller's
outputs
24VDC @ 9.4A
26.4
Mechanical:
15A/ 3A/
2.5
250V 250V
8
2.0 9A 2.5A
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
10A/ 3A/
250V 250V
9A 2.5A
Fig. 1
Enclosure
T2M7XKV Kit Installation Guide
