NOTE: to disable this function, it is necessary to select the "OFF" value, which is
one of the allowed values.

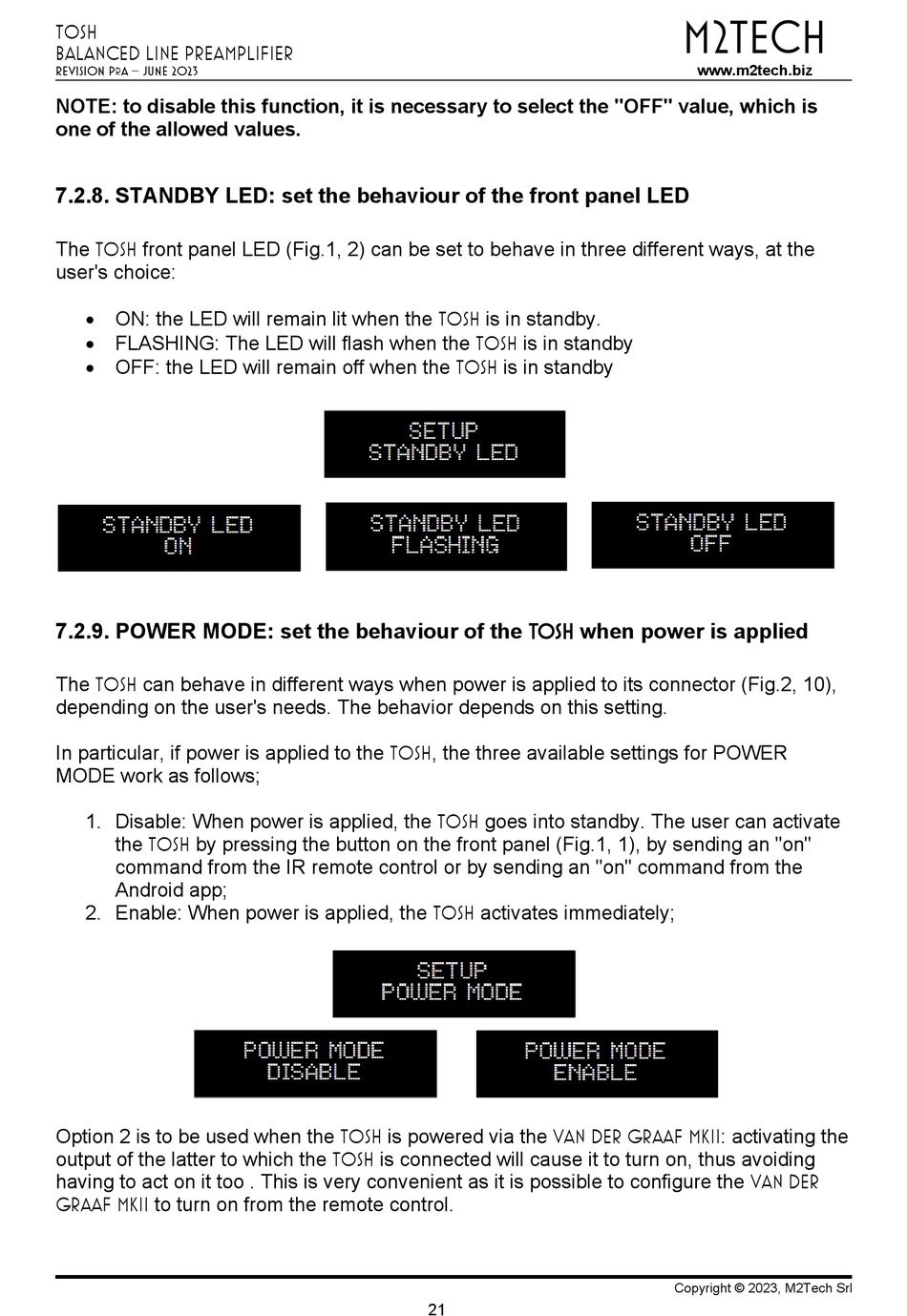

7.2.8. STANDBY LED: set the behaviour of the front panel LED
The TOSH front panel LED (Fig.1, 2) can be set to behave in three different ways, at the
user's choice:
 ON: the LED will remain lit when the TOSH is in standby.
 FLASHING: The LED will flash when the TOSH is in standby
 OFF: the LED will remain off when the TOSH is in standby
7.2.9. POWER MODE: set the behaviour of the TOSH when power is applied
The TOSH can behave in different ways when power is applied to its connector (Fig.2, 10),
depending on the user's needs. The behavior depends on this setting.
In particular, if power is applied to the TOSH, the three available settings for POWER
MODE work as follows;
1. Disable: When power is applied, the TOSH goes into standby. The user can activate
the TOSH by pressing the button on the front panel (Fig.1, 1), by sending an "on"
command from the IR remote control or by sending an "on" command from the
Android app;
2. Enable: When power is applied, the TOSH activates immediately;
Option 2 is to be used when the TOSH is powered via the Van Der Graaf MkII: activating the
output of the latter to which the TOSH is connected will cause it to turn on, thus avoiding
having to act on it too . This is very convenient as it is possible to configure the Van Der
Graaf MkII to turn on from the remote control.
