Volume Steps: Setting The Granularity Of The Volume Control - M2TECH TOSH User Manual

M2Tech
TOSH
BALANCED LINE PREAMPLIFIER
www.m2tech.biz
REVISION P A – JUNE 2023
R
SETUP
DISPLAY

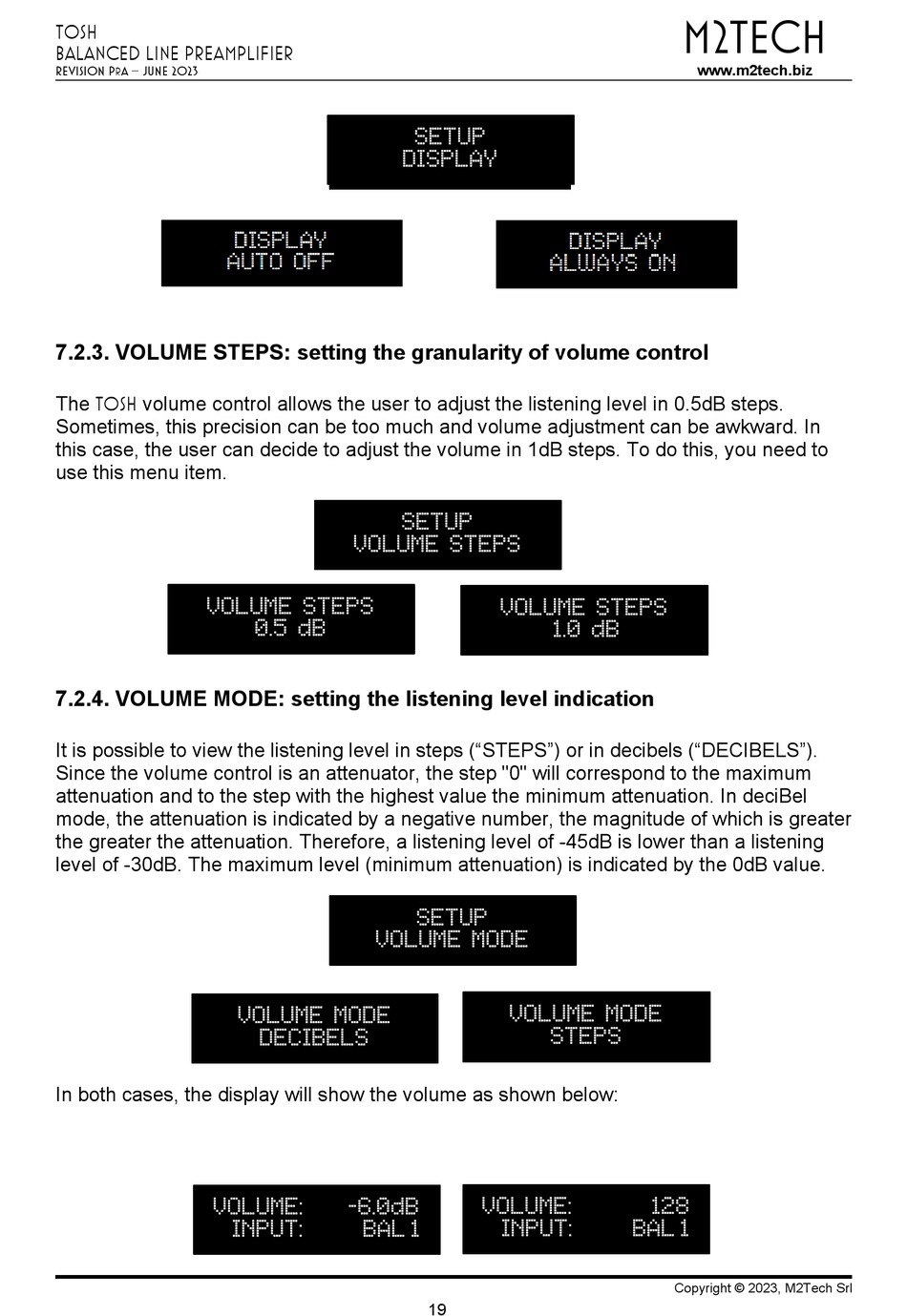

7.2.3. VOLUME STEPS: setting the granularity of volume control
The TOSH volume control allows the user to adjust the listening level in 0.5dB steps.
Sometimes, this precision can be too much and volume adjustment can be awkward. In
this case, the user can decide to adjust the volume in 1dB steps. To do this, you need to
use this menu item.
SETUP
VOLUME STEPS
VOLUME STEPS
VOLUME STEPS
0.5 dB
1.0 dB
7.2.4. VOLUME MODE: setting the listening level indication
It is possible to view the listening level in steps ("STEPS") or in decibels ("DECIBELS").
Since the volume control is an attenuator, the step "0" will correspond to the maximum
attenuation and to the step with the highest value the minimum attenuation. In deciBel
mode, the attenuation is indicated by a negative number, the magnitude of which is greater
the greater the attenuation. Therefore, a listening level of -45dB is lower than a listening
level of -30dB. The maximum level (minimum attenuation) is indicated by the 0dB value.
SETUP
VOLUME MODE
VOLUME MODE
VOLUME MODE
STEPS
DECIBELS
In both cases, the display will show the volume as shown below:
VOLUME: 128
VOLUME: -6.0dB
INPUT: BAL 1
INPUT: BAL 1
Copyright © 2023, M2Tech Srl
19
