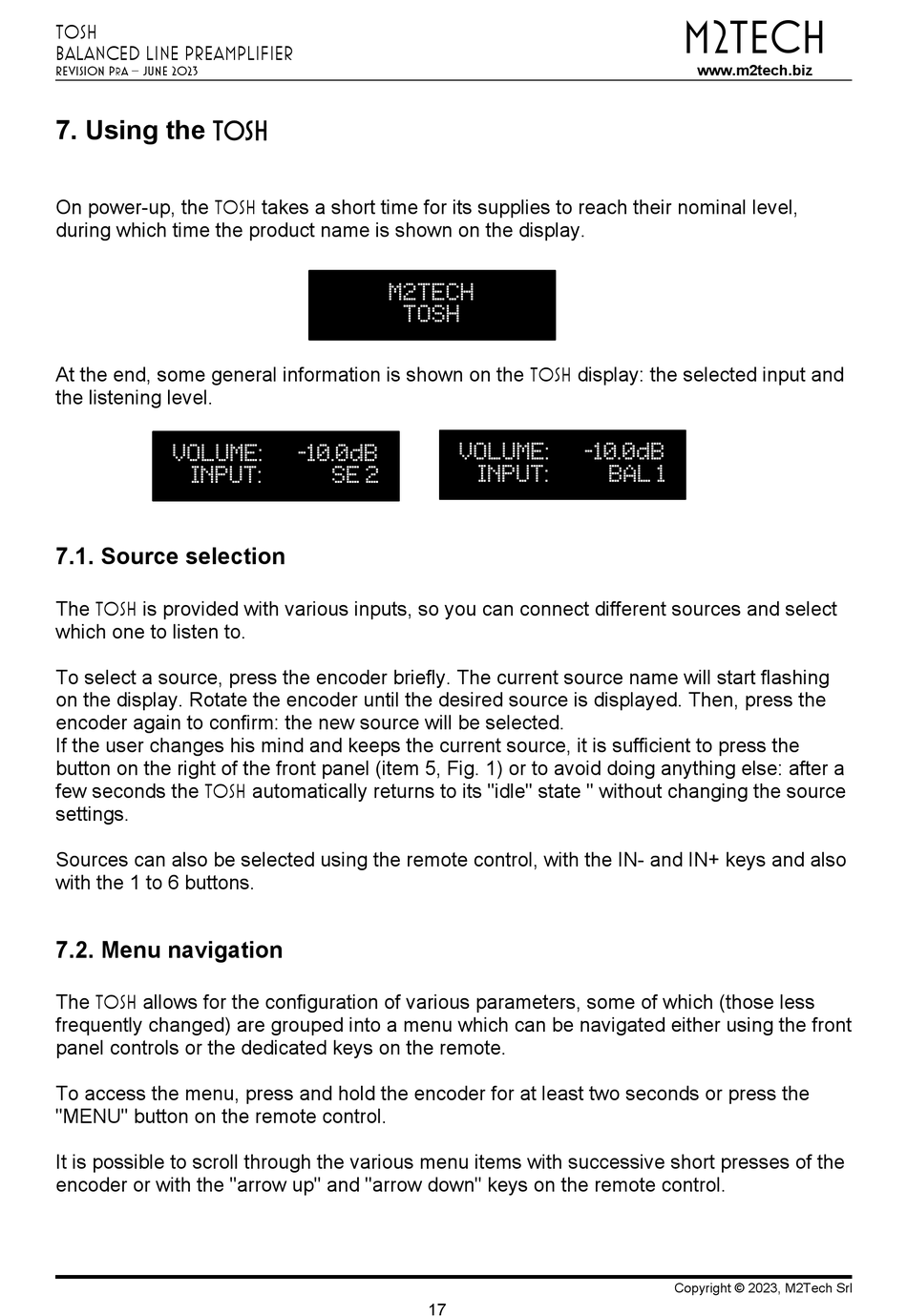

7. Using the TOSH

On power-up, the TOSH takes a short time for its supplies to reach their nominal level,
during which time the product name is shown on the display.
M2TECH
TOSH
At the end, some general information is shown on the TOSH display: the selected input and
the listening level.
VOLUME: -10.0dB
VOLUME: -10.0dB
INPUT: BAL 1
INPUT: SE 2

7.1. Source selection

The TOSH is provided with various inputs, so you can connect different sources and select
which one to listen to.
To select a source, press the encoder briefly. The current source name will start flashing
on the display. Rotate the encoder until the desired source is displayed. Then, press the
encoder again to confirm: the new source will be selected.
If the user changes his mind and keeps the current source, it is sufficient to press the
button on the right of the front panel (item 5, Fig. 1) or to avoid doing anything else: after a
few seconds the TOSH automatically returns to its "idle" state " without changing the source
settings.
Sources can also be selected using the remote control, with the IN- and IN+ keys and also
with the 1 to 6 buttons.

7.2. Menu navigation

The TOSH allows for the configuration of various parameters, some of which (those less
frequently changed) are grouped into a menu which can be navigated either using the front
panel controls or the dedicated keys on the remote.
To access the menu, press and hold the encoder for at least two seconds or press the
"MENU" button on the remote control.
It is possible to scroll through the various menu items with successive short presses of the
encoder or with the "arrow up" and "arrow down" keys on the remote control.
