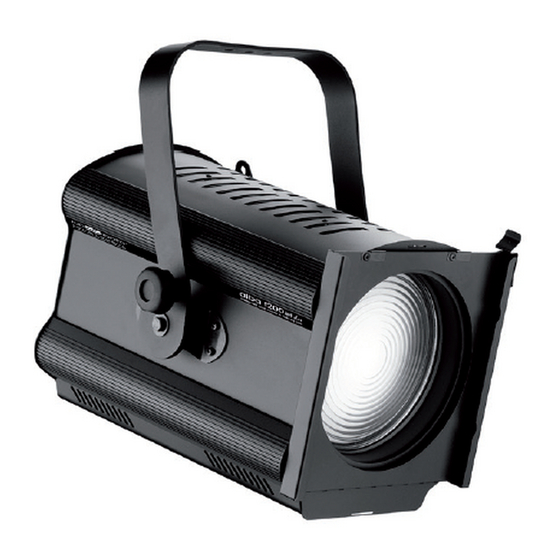

Alba F250 W 3200K 230W
01201000
Alba F250 C 5600K 230W
01201100
01202000
Alba PC250 W 3200K 230W
Alba PC250 W 5600K 230W
01202100
100/260V, DMX512 + RDM
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LDR Alba F250 W 3200K 230W
Summary of Contents for LDR Alba F250 W 3200K 230W
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Alba F250 W 3200K 230W 01201000 Alba F250 C 5600K 230W 01201100 01202000 Alba PC250 W 3200K 230W Alba PC250 W 5600K 230W 01202100 100/260V, DMX512 + RDM Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
11.2 DMX address……………………………………………………………………………………………….6 11.3 Dimmer resolution ……………………………………………………………………………………..7 11.4 Lost DMX signal…………………………………………………………………………………………..7 11.5 Strobe………………………………………………………………………………………………………… 7 11.6 Strobe speed……………………………………………………………………………………………….7 11.7 Dimming curve…………………………………………………………………………………………….8 11.8 Cut off dimming response……………………………………………………………………………8 11.9 Dimming behaviour …………………………………………………………………………………….8 11.10 Fan setting……………………..………………………………………………………………………….8 11.11 LCD screen illumination …………………………………………………………………………….9 11.12 Temperature Control…………………………………………………………………………………9 11.13 Software version……..………………………………………………………………………………..9 11.14 Pro ord Basic control …………………………………………………………………………………9 11.15 Factory setting…………………………………………………………………………………………..10 11.16 ID for Remoto.….................... 10 11.17 Calibration…….…....................10 11.18 Exit hidden menu …..................10 MAINTENANCE 12. Cleaning and maintenance…………………………………………………………………………….10 13. Spare part …………………………………………………………………………………………………….11 14. Warranty……………………………………………………………………………………………………..11 SUMMARY OF CONTROL AND OPERATION 15. Summary of the ALBA function…………………………………………………………………….. 1 2 16. DMX Charts………………………………………………………………………………………………….. 13 16.1 DMX Chart 1 ……………………….…………………………………………………………………….. 13 16.2 DMX Chart 2 ……………………………………………………………………………………………….13 16.3 DMX Chart 3 ……………………………………………………………………………………………….14 16.4 DMX Chart 4 ……………………………………………………………………………………………… 15 LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung page 16 Complaint form – Modulo di reclamo – Reklamationsformular …………………………. P age 17 WEEE Directive – Direttiva RAEE – WEEE Richtlinie …………………………………………… Page 18 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 3: Important Safety Norms
The instructions given here ensure a safe and correct usage of this product. A user’s failure to comply with the installation, operating, maintenance and safety procedures mentioned in this manual, as well as those generally applicable to this lighting equipment, may cause the luminaire not to perform as expected. Luci della Ribalta accepts no liability for direct, indirect, incidental, special or consequential damages resulting from the customer’s failure to follow the installation, operating, maintenance and safety procedures in this manual or those generally applicable to lighting equipments. The limitation extends to damages for personal injury, property damage, loss of operations, loss of profits, loss of product or loss of time, whether incurred in by the customer, the customer’s employees or a third party. Apart from the instructions given on this manual, all relevant safety and health standards of the appropriate EU Directives or the local safety and health standards of the country where the unit is installed, must be complied with. IMPORTANT SAFETY NORMS This product is rated IP 20 and is therefore designed for interior use only. For details on maximum ambient temperature and tilt angle please refer to what indicated on the product label or screen‐ printing on the side of the lens‐tube or the rear of the LED‐house Warning, high voltage ignition. Disconnect the unit from power before servicing Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. Use of a phase control dimmed mains supply may damage the internal electronics. Use of a phase control dimmed mains supply may damage the internal electronics This product features fan‐assisted ventilation. Make sure you do not cover the fans or obstruct the air flow at any one time. Make sure the fans are working correctly. Should you detect even the slightest malfunction, switch the luminaire off and carry out the necessary servicing. Replace the fan if necessary. Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and only with original Luci della Ribalta srl components. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Box Contents
Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used. This product must be fitted with a secondary fixing system such as a safety chain or bond. Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product. WARNING: DANGER OF ELECTRICAL SHOCK DO NOT OPERATE ON LIVE EQUIPMENT Disconnect power before opening this fixture to access its light source or electronics. The replacement of the LED source or any of its electronic components can be carried out exclusively by professional personnel upon LDR’s written authorization and only with original Luci della Ribalta srl components. Failure to obtain the manufacturer’s authorization to carry out the replacement/repair, will immediately invalidate the product’s warranty WARNING: EYE DAMAGE HAZARD Make sure this fixture is installed so as to avoid prolonged direct staring at its operating light source (LED) from a distance of less than 7m / 23ft. WARNING: FIRE HAZARD Never locate this fixture on any flammable surface. Minimum distance of any part of the body of the luminaire from any flammable surface or object: 0,5m Minimum distance from lit surface, please refer to product label ... -
Page 5: Weight And Dimensions
gross weight: 12,3 kg packing dimensions: 60x40x45h cm packing dimensions: 60x40x45h cm IMPORTANT NOTICE BEFORE THE INSTALLATION / INSTALLATION Before installing this fixture check its weight on the product label and the weight of each accessory you are adding and make sure the structure you are installing it to withstands the total weight. The mounting stirrup rotates around the body of the luminaire and is designed to allow the spotlight to be suspended from above using a C‐clamp or similar, or supported on a stand or bracket from below. CAUTION DO NOT TURN THE LUMINAIRE UPSIDE‐DOWN BUT ALWAYS TURN THE STIRRUP IF YOU NEED TO MOUNT IT ON A STAND OR BRACKET Note: the spotlight’s location must provide suitable ventilation for the LED module. If not supplied choose a suitable clamp and make sure it is correctly fixed and strongly tightened to the stirrup according to the clamp’s manufacturer’s instructions If not supplied choose a suitable safety cable or bond. Clamp it to the eyelet provided on the upper rear part of the luminaire (see picture here below), run it twice around the stirrup and the structure the luminaire is hung to so as to bond them together and close the loop. When tilting the unit make sure the knob blocking the stirrup is strongly tightened and that the luminaire can hold the desired tilt angle Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Mechanical Operation
Ground: green+yellow – Neutral: blue ‐ Phase: brown In case the colours of the wires do not correspond to the colour of the connection points on your plug, please proceed as follows: The green or green and yellow wire must be connected to the connection point marked with the letter E or with the symbol or coloured in green or in green‐yellow The blue wire must be connected to the connection point marked with the letter N or coloured in black The brown wire must be connected to the connection point marked with the letter L or coloured in red 7. VOLTAGE Before operating this unit please refer to the product label mounted at the back of the luminaire to check you are operating with the correct voltage. This unit can be operated between 90V and 260V and the electronic PSU inside the fixture will automatically switch to the available voltage. 8. FREQUENCY Frequency on this product is automatically selected by the electronic PSU (50/60Hz) 9. CONNECT TO THE POWER SUPPLY Connect the unit to a continuous mains power source Make sure the power supply is protected by a suitable thermal magnetic circuit breaker This fixture must be grounded Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Local Control Panel And Operation
100% (FFF) = LED FULL SELECTOR TO DISPLAY XX % XXX MANUAL THE VALUE 11.2 DMX ADDRESS (Addr) It allows to select the initial DMX starting address to remotely control the LED functions. To change the initial DMX address press the rotary switch until an arrow appears, then turn to change to the desired DMX starting address. Press to confirm your selection. Factory setting is 001. PRESS TO ACTIVATE 2 Addr 2 Addr 2 Addr TURN TO ASSIGN THE THE MENU, AN DMX ADDRESS AND ARROW SHOULD PRESS TO CONFIRM APPEAR Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Dimmer Resolution
6 SetStr 6 SetStr THE MENU, AN WITH STROBE ENABLE OPEN ARROW SHOULD OPEN THE LIGHT IS SET TO ON APPEAR 6 SetStr CHOOSE THE STROBE SPEED VALUE FROM SPEED # 1(SLOW) TO 10 (FAST) 6 SetStr WITH STROBE ENABLE THE LIGHT IS SET TO CLOSED OFF Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: Dimming Curve
9 Smooth IMMEDIATE DIMMING FAST RESPONSE 11.10 FAN SETTING (Fan) This function allows to set the fan response. A choice of three modes is available: Automatic, Silent or Steady. When the fan is in Auto mode, its speed is controlled by the temperature of the LED. When Silent mode is chosen the fan runs slowly to reduce the noise. If Steady is activated the fan runs at constant speed, halfway between the minimum and maximum speed. In all cases, if the temperature on the LED exceeds the maximum admitted value, the LED is protected by a de‐rating security system, which lowers the light output until the temperature goes back to safe levels, when full power is then restored automatically. Factory setting is AUTO. PRESS TO ACTIVATE 10 Fan 10 Fan FAN SPEED IS THE MENU, AN REGULATED BY LED AUTO ARROW SHOULD AUTO TEMPERATURE APPEAR Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 10: Lcd Screen Illumination
CONFIRM APPEAR 11.13 SOFTWARE VERSION (SwVer) This function allows to visualize the software version. 11.14 PRO or BASIC CONTROL (ProBasic) The PRO‐BASIC control is a special function which allows to limit the access to the control menu. Select ProBasic with the rotary switch and press to access the menu. Select: PRO to enable access to all the functions BASIC, to limit access to functions 11.1 DMX or MANUAL MODE, 11.2 DMX ADDRESS, 11.12 Temperature Control and 11.13 Software version. Factory setting is PRO. PRESS TO ACTIVATE Choose MenuType MenuType TURN TO SELECT PRO THE MENU, AN OR BASIC MENU AND BASIC ProBasic ARROW SHOULD PRESS TO CONFIRM APPEAR Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 11: Factory Setting
THE MENU, AN THE CALIBRATION Set Min ARROW SHOULD VALUE AND PRESS TO #### #### APPEAR CONFIRM 11.18 EXIT HIDDEN MENU (Exit) It allows to exit from hidden menus. 12. CLEANING AND MAINTENANCE To ensure maximum performance of the product, a regular maintenance service should be carried out. Please make sure the product is cold and disconnected from power supply when doing this. General maintenance * Clean all reflective parts such as lenses opening the product, if necessary. * Check the lenses and replace any visibly damaged component. * Clean air ducts and fans in order to allow proper ventilation activity on the product. * Check internal and external wiring and replace any cable which should be damaged by heat or mechanical agents. 10 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 12: Spare Part
Alba F & PC 250, 3200K and 5600K LED User’s Manual – 2.0 13. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 14. WARRANTY Our warranty covers all structural and manufacture defects for one year from the date you purchased this product. In case of complaints we strongly recommend you use the complaint form at the end of this manual or contact the local dealer who supplied the product to you. In any case please report the serial number of the product. 11 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 13 SLOW = ACTIVE NORMAL = 150ms; SLOW = 9 Smooth Dimmer response 300ms FAST = Immediate NORMAL response AUTO = regulated by Tled; 10 Fan Fan setting SILENT = slow speed, low noise; AUTO STEADY = constant speed ON; AutoOFF = LCD light off after 11 BackL LCD screen retro‐illumination AutoOff 1'30" 12 Tled Visualizes the LED temperature Select the LED Temp in °C or F° °C 13 SwVer Visualizes the software version ‐‐‐ ENCODER = Rotary switch; 14 Manu Selects the manual dimmer type ENCODER POTENT = External slider 12 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 14: Dmx Charts
DMX Type of Function Effect Decimal Percentage Channel Control Master Adjusts luminous output intensity 1 Proportional 0 ‐ 255 0% ‐ 100% Dimmer from 0 to 100% 2 Dimmer Fine Proportional Fine dimmer control 16 bit 0 ‐ 255 0% ‐ 100% Table name: DMX512 Functions Date: Projector: Alba White Edition: 1 chart 2 (16 bits) 16/05/2018 13 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 15: Dmx Chart 3
161 ‐ 180 64% ‐ 71% Step Strobe speed 9 181 ‐ 200 72% ‐ 78% Strobe speed 10 (maximum Step 201 ‐ 220 79% ‐ 86% frequency) Step Closed 221 ‐ 255 87% ‐ 100% Table name: DMX512 Functions Date: Projector: Alba White Edition: 1 chart 3 (Strobe) 16/05/2018 14 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 16 161 ‐ 180 64% ‐ 71% Step Strobe speed 9 181 ‐ 200 72% ‐ 78% Strobe speed 10 (maximum Step 201 ‐ 220 79% ‐ 86% frequency) Step Closed 221 ‐ 255 87% ‐ 100% Table name: DMX512 Functions Date: Projector: Alba White Edition: 1 chart 4 (16 bits + Strobe) 16/05/2018 Luci della Ribalta srl reserves the right to modify the present document without prior notice. 15 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
- Page 17 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 18 Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01201000 Alba F250 W 3200K 230W Prodotto difettoso 01201100 Alba F250 C 5600K 230W Faulty product 01202000 Alba PC250 W 3200K 230W Defekte s Produkt 01202100 Alba PC250 W 5600K 230W Produit défectueux Producto defectuoso 100/260V, DMX512 + RDM Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
- Page 19 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 20 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
