Flue - Alfa Network QUICK User Manual

- Wood-fired models must be connected to a smoke evacuation system, the exhaust
must be leak-proof.
- As a rule, the chimney must serve only one oven; connecting more than one to a
single chimney could jeopardise the smooth escape of fumes.
- A well-designed chimney must not contain too many joints; elbows with an angle
greater than 45° are to be avoided at all costs in order to ensure that the flue gases
escape correctly.
- In case of excessive draught in the oven, provide a draught regulating valve (ALFA
accessory).
- The valve is not supplied with the oven, for more information visit www.alfaforni.
com
- The valve can be used to accelerate the heating of the oven and to maintain a
constant temperature inside the combustion chamber.
- Do not close the door completely with the valve closed, this could overheat the oven
beyond the permitted limit and cause irreparable damage to the product.
- WARNING: the surface of the valve can become very hot.
- WARNING: wear a glove when opening and closing the valve as the knob can reach
high temperatures.
- Incorrect or inappropriate use of the valve may result in damage to the oven and/or
personal injury and property. Alfa shall not be liable for damage caused by incorrect
use of the valve.
- The valve made of stainless steel 304 can change its colour when subjected to high
temperatures, this is an inherent characteristic of the material.

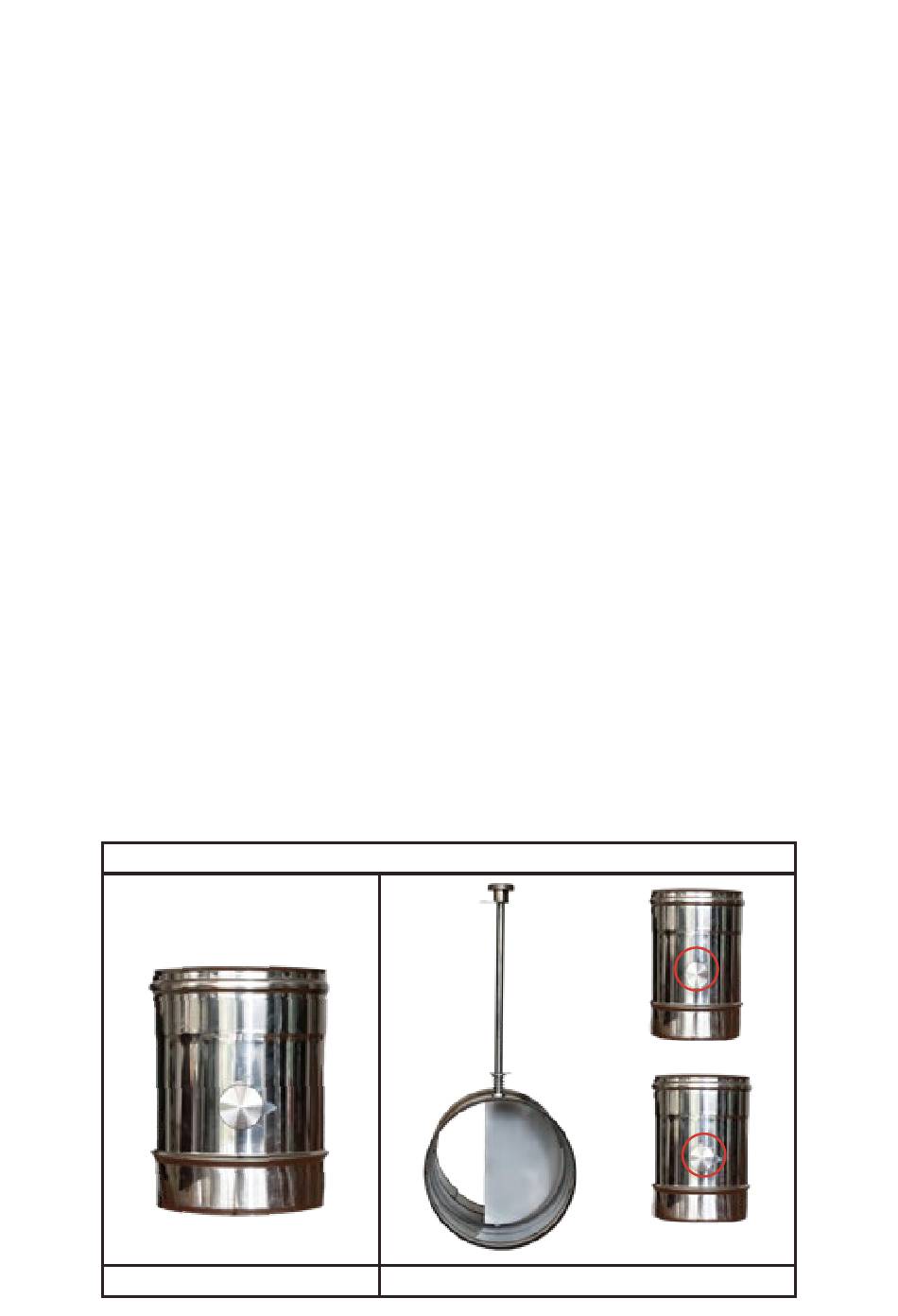

Front view
12

FLUE

ONLY FOR WOOD-BURNING OVENS
BUTTERFLY VALVE
Draft adjustment valve or Butterfly valve
View from above
Open
Close
