Technical Support and E-Warranty Certificate
www.vevor.com/support

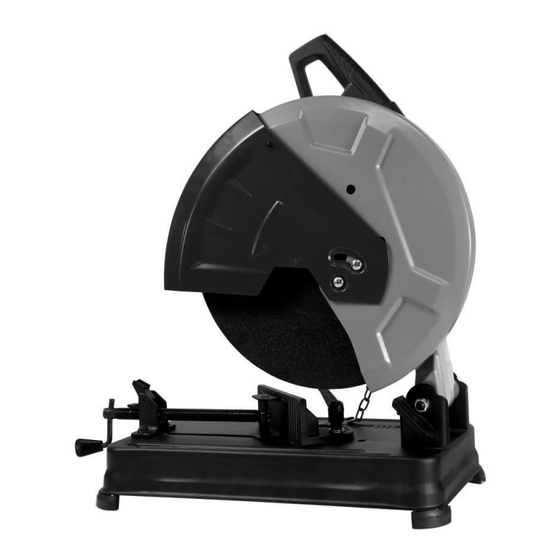

CUT-OFF MACHINE
USER MANUAL
We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price",
or any other similar expressions used by us only represent an estimate of savings you might
benefit from buying certain tools with us compared to the major top brands and do not
necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when placing an order with us if you are saving half in comparison with the top
major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR J1G-ZB-355B
Summary of Contents for VEVOR J1G-ZB-355B
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support CUT-OFF MACHINE USER MANUAL We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us.
- Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software...
-
Page 4: Important Safety Instructions
1. Important safety instructions Warning - To reduce the risk of injury, user must read instructions manual carefully. Alternating current This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. - Page 5 Read through carefully and understand these instructions before use！ WHEN USING ELECTRIC TOOLS, ALL THE SAFETY INSTRUCTIONS SHOULD ALWAYS BE OBSERVED TO REDUCE THE RISK OF FIRE , ELECTRIC SHOCK AND PERSONAL INJURY BEFORE ATTEMPTING TO OPERATE THE TOOL, PLEASE READ ALL THE INSTRUCTIONS AND SAVE IT FOR FURTHER REFERENCE General Power Tool Safety Warnings - Work area safety a) Keep work area clean and well lit.
- Page 6 General Power Tool Safety Warnings - Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
- Page 7 detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 8 1.2.5. STORE IDLE TOOL: When not in use, tools should be stored dry high, or locked-up place. 1.2.6. FORCE TOOL:Avoid unnecessary over load which may put the operator at risk and impair function of the tools. 1.2.7 USE RIGHT TOOL: Don't force small tools and attachments to do the job of a heavy duty tool.
- Page 9 properly and perform its intended function, check for alignment of moving parts, blinding of moving parts, breakage of moving parts, mounting and any other conditions that may affect is operation. A guard or other part that is damaged should be properly repaired or replaced by an qualified service center unless otherwise indicated elsewhere in the instructionmanual.
-
Page 10: Product Description
workpicce has been fixed on the vise securely. 1.3.7 Before the cutting wheel contacts the workpiece, you must wait until the cutting wheel reaches the maximum speed. 1.3.8 Turn off the switch immediately after cutting, then return the cutting wheel to its original speed. -
Page 11: Operating Regulations
Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps. 4. Operating regulations 4.1 Put the tool on flat ground or work table. 4.2 Adjust the chain to keep the cutting wheel in the highest position. - Page 12 The spark guard may be factory-installed with its lower edge contacting the base. Operating the tool in this position will cause many sparks to fly around. Loosen the screw and adjust the spark guard to a position at which minimum sparks will fly around.
-
Page 13: Handle Operation
5. ADJUSTMENT OF CUTTING ANGLE The vise of the tool can be adjusted from 0° to 45° to help you realize angle cutting. When adjusting the cutting angle, first loosen the fixed screw 2 on vise, turn the vise plate I to the angle you expect according to the angle marks, then tighten the fixed screw 2. - Page 14 7. Cutting wide work-piece The tool's vise can be moved back 35mm to cut wide workpieces. Loosen the screws/handle on the vise grip, move the vise towards the back of the tool, and insert the screws into the assembly holes to secure the vise. 8.
-
Page 15: Explosion View
9. Explosion View... - Page 16 10. BOM list of Explosion view BOM list item description item description Phillips slotted screw M6X8 Bearing 6000-2RS Phillips screw ST3X8 Baffler Movable cover Phillips slotted screw M5X75 Anti-collision block Spring cushion M5 Hexagon screw M10X20 stator small plate Hexagon bolt M16X170 big palte Horizontal pin Cutting blade...
- Page 17 Pointed elastic pin spark guard screw M6X20 Cross slotted self tapping Vise screw screw ST3.9X14 Small splint Phillips slotted screw M5X40 Flat pad 8.5*22*2 Right handle Lock nut M8 Phillips slotted screw M5X30 holder Washer M5 Knob switch Hexagon socket screw Crimping board M8X35 Hexagon socket lock nut...
- Page 18 11.Parameter Description Cut-off Machine Remark Model J1G-ZB-355B Rating(s) AC120V 60Hz 2300W For US user Rating(s) AC220-240V 50Hz 2300W For European User Rotational Speed 3600rpm Dia:14inch Grinding wheel Grit Number : 80 Package Size 59.5×33.5×42.5cm G.W. 15.3kg...
- Page 20 Technical Support and E-Warranty Certificate www.vevor.com/support...
