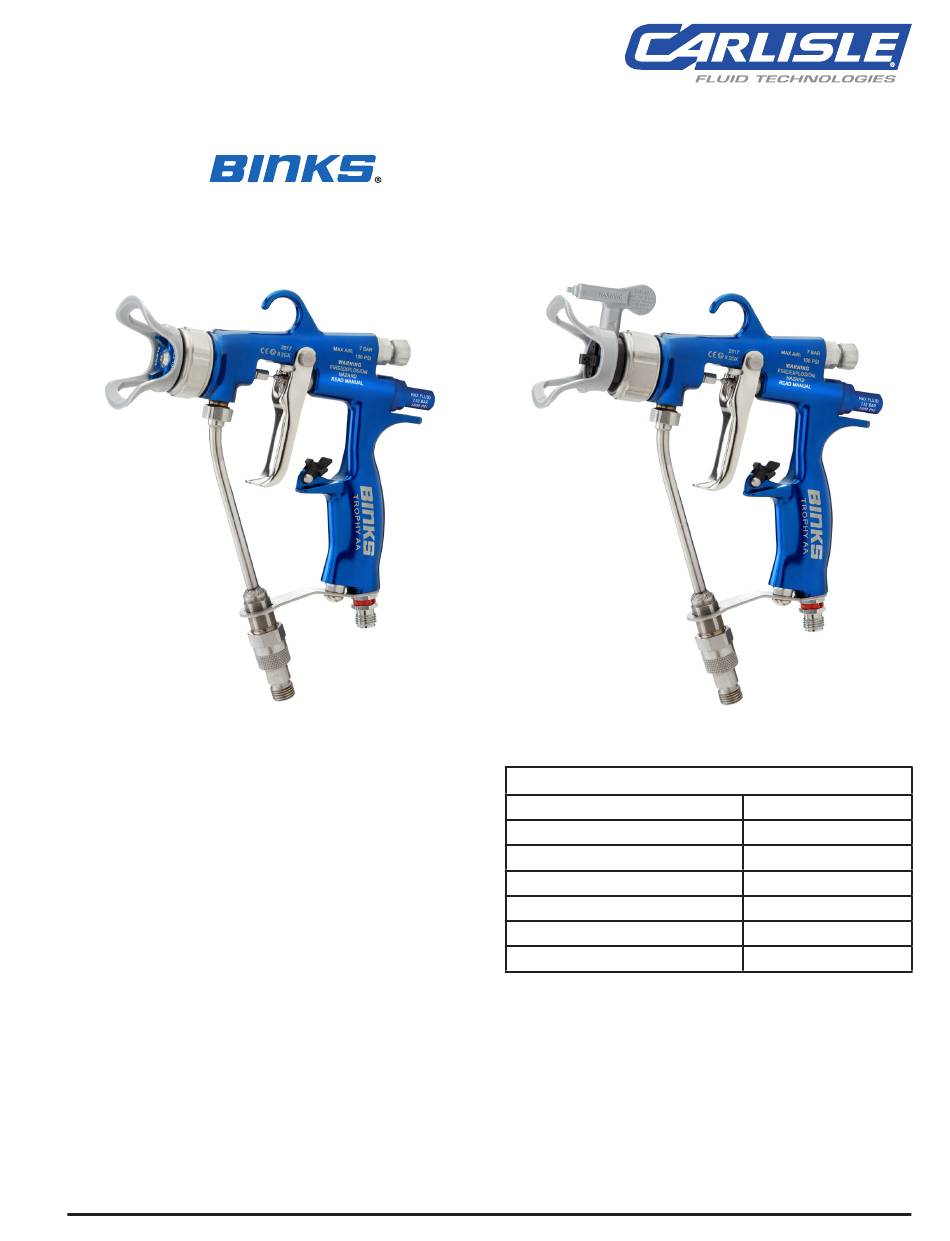

Carlisle Binks TROPHY AA 1600 Service Manual

SERVICE MANUAL
EN
Flat tip versions
1600-HFxxxx
The following instructions provide the necessary
information for the proper operation and preventive
maintenance of your new TROPHY AA Air-Assist Airless
Spray Gun.
Please read and understand all information in this
document in order to get the maximum performance
from your new TROPHY AA spray gun.
With your new TROPHY AA spray gun, the paint or other
material to be sprayed is primarily atomized as it passes
through the carbide tip. The air cap will also add a
secondary atomization, based on its configuration. This
is done by utilizing a separate air supply, to the gun.
You may also control the pattern size using the spreader
valve. This dual atomization and shaping produces an
exceptionally fine and even spray pattern. The result
of this spray pattern is an even finish that lends itself
to products that need an exceptionally fine finish with
reduced overspray and VOC emissions.
77-3130-R2 (3/2018)

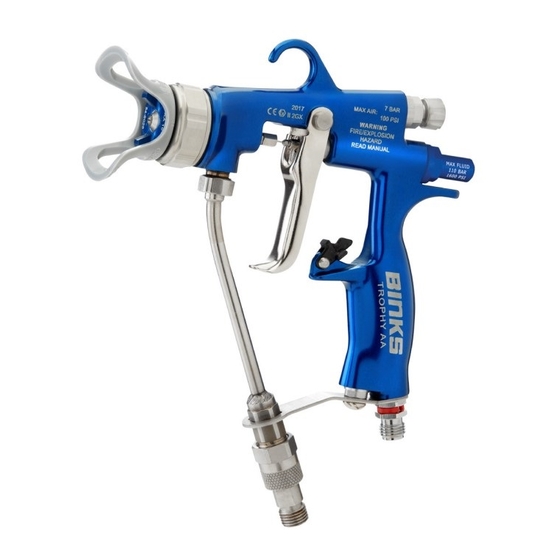

TROPHY AA 1600
HVLP OR LVMP AIR-ASSIST
AIRLESS SPRAY GUNS
Twist tip versions
1600-HTxxxx
Maximum fluid pressure:
Maximum air inlet pressure:
Gun Body material:
Fluid Path material:
Fluid Seat Material:
Fluid inlet connection:
Air inlet connection:
1 / 16
SPECIFICATIONS
110 bar [1,600 psi]
7 bar [105 psi]
Forged Aluminum
Stainless Steel
PEEK
1/4" NPS (m)
1/4" BSP / NPS (m)
www.carlisleft.com
