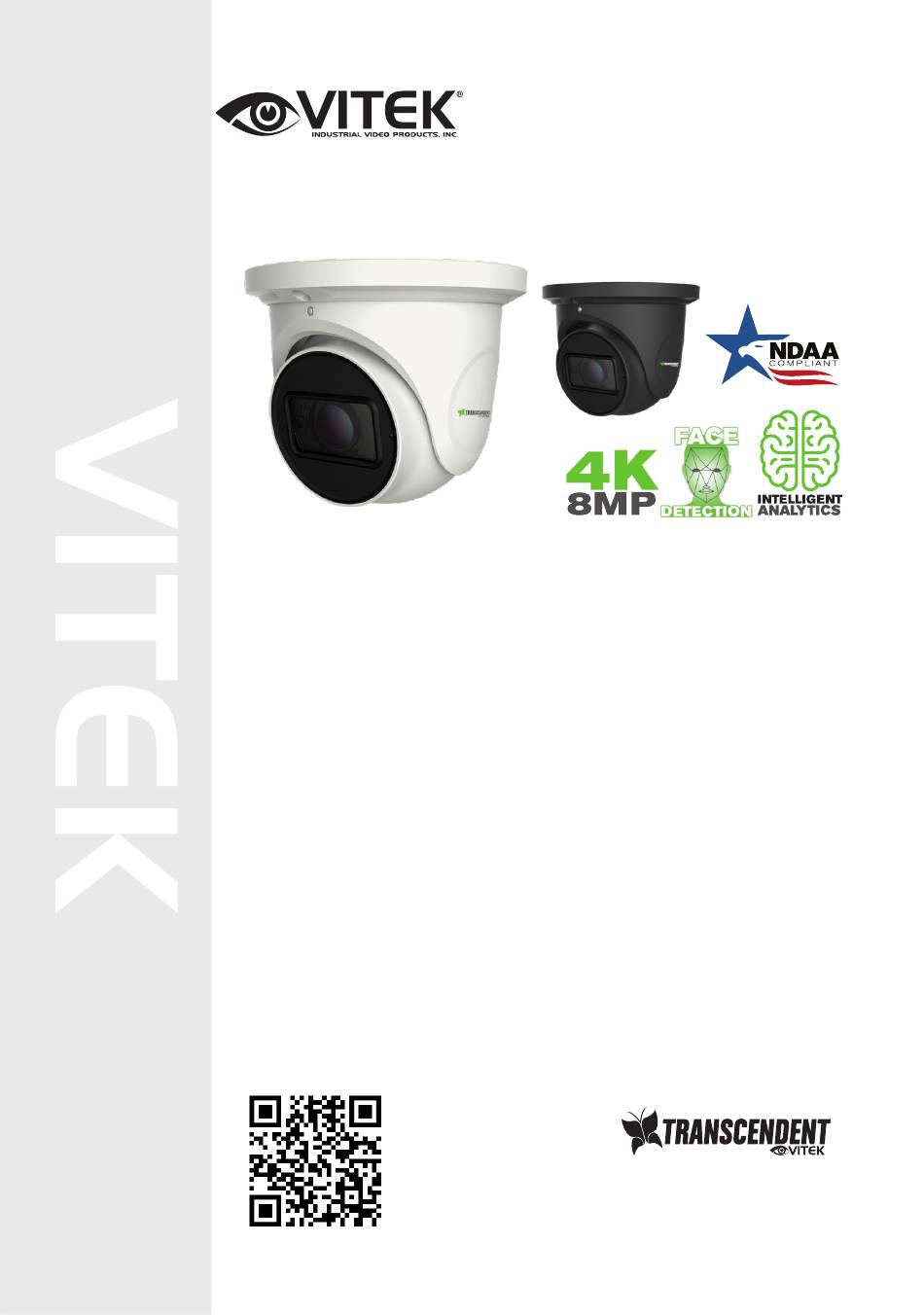

QUICK START GUIDE
FEATURES:
• 1/2.8" 8.0 Megapixel [4K] CMOS Image Sensor
• NDAA Compliant
• Up to 30fps live view @ 8 MegaPixel (3840x2160)
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 165' IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Gen. IV Advanced Analytics: Abnormal Video, Face Detection, Regional
Intrusion Detection, Regional Entrance / Exiting Detection, Line
Crossing, Target Counting Detection
• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
• 1 Ch. Audio In + Built-in Mic*
• Remote Viewing via CMS, Internet Explorer, iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (256GB)
• IP67 Weather Resistance
• Optional Mounts: Junction Boxes (VT-TJB01, VT-TJB021)
Wall Mounts (VT-TWM03, VT-TWMT-4), Pendant Mounts (VT-TPDM-2
[use w/ VT-TJB01] VT-TPDM-3 [use with VT-TJB021])
(see pg. 9 for additional mounting options)
• Available in Ivory or Charcoal Grey [VTC-TNT8RMA4B]
• 12VDC & PoE (Power over Ethernet) Operation
*Please research local, state and federal laws regarding the implementation of audio surveillance.

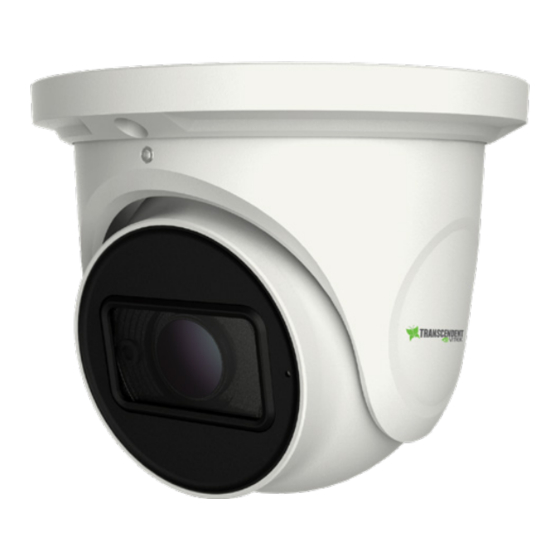

VTC-TNT8RMA4
Transcendent Series 8 MegaPixel
[4K] Gen. IV Advanced A.I.
Motorized IP Turret Camera
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Advertisement
Table of Contents
Related Manuals for Vitek VTC-TNT8RMA4
Summary of Contents for Vitek VTC-TNT8RMA4
- Page 1 VTC-TNT8RMA4 Transcendent Series 8 MegaPixel [4K] Gen. IV Advanced A.I. Motorized IP Turret Camera QUICK START GUIDE FEATURES: • 1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor • NDAA Compliant • Up to 30fps live view @ 8 MegaPixel (3840x2160) • 2.8~12mm Motorized Varifocal Lens •...
-
Page 2: Components And Accessories
Components and Accessories Camera Drill Template Quick Guide Rubber Plug Screws Waterproof Cap Hex Wrench Overview Ethernet connector Audio input connector Power connector Mounting base Fixed / Lock Screw Microphone Micro SD card slot Reset Network Cable & Power Connections First connect the Water Resistant Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. -
Page 3: Installation
Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 4 Fig. 2 3. Loosen the lock screw, then adjust the camera to obtain the optimium viewing angle. Confirm the correct viewing angle with a monitor. Next, tighten the lock screw to secure the viewing angle adjustments. Pan: 0˚~360˚ Rotate: 0˚~360˚ Tilt: 0˚~80˚...
-
Page 5: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 7: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 8 VTC-TNT8RMA4 Detailed Specifications Image Sensor 1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor Image Size 8 MegaPixel (3840 × 2160) Resolution 8MP(3840 × 2160 ), 6MP(3072 × 2048 ), 5MP(2592 × 1944), 4MP(2592 × 1520 ), 3MP(2304 × 1296), 1080P(1920 × 1080 ), 720P(1280 × 720 ), D1, CIF, 480 × 240 Min.
- Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNT8RMA4 VT-TJB021 VT-TWM03 VT-TJB01 Optional Junction Box Optional Wall Mount Optional Junction Box VT-TPDM-2 VT-TPDM-3 VT-TWMT-4 Pendant Mount - Pendant Mount - Optional Wall Mount requires VT-TJB01 requires VT-TJB021 7.65” 4.73” VT-TPLMT VT-TCNMT Transcendent...
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS NVRs UPDATED UPDATED NEWLY NEWLY Transcendent A Standalone Solution with Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression •...
- Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
