SpectraMax Mini Installation Guide
5. Manually open the plate chamber door, gently slide the plate drawer out of the instrument,
and place the transport lock on the end of the of the plate drawer.
6. Use the hex key (included in the accessory case) to tighten screws #2 and #3 until the
transport lock is attached to the plate drawer.

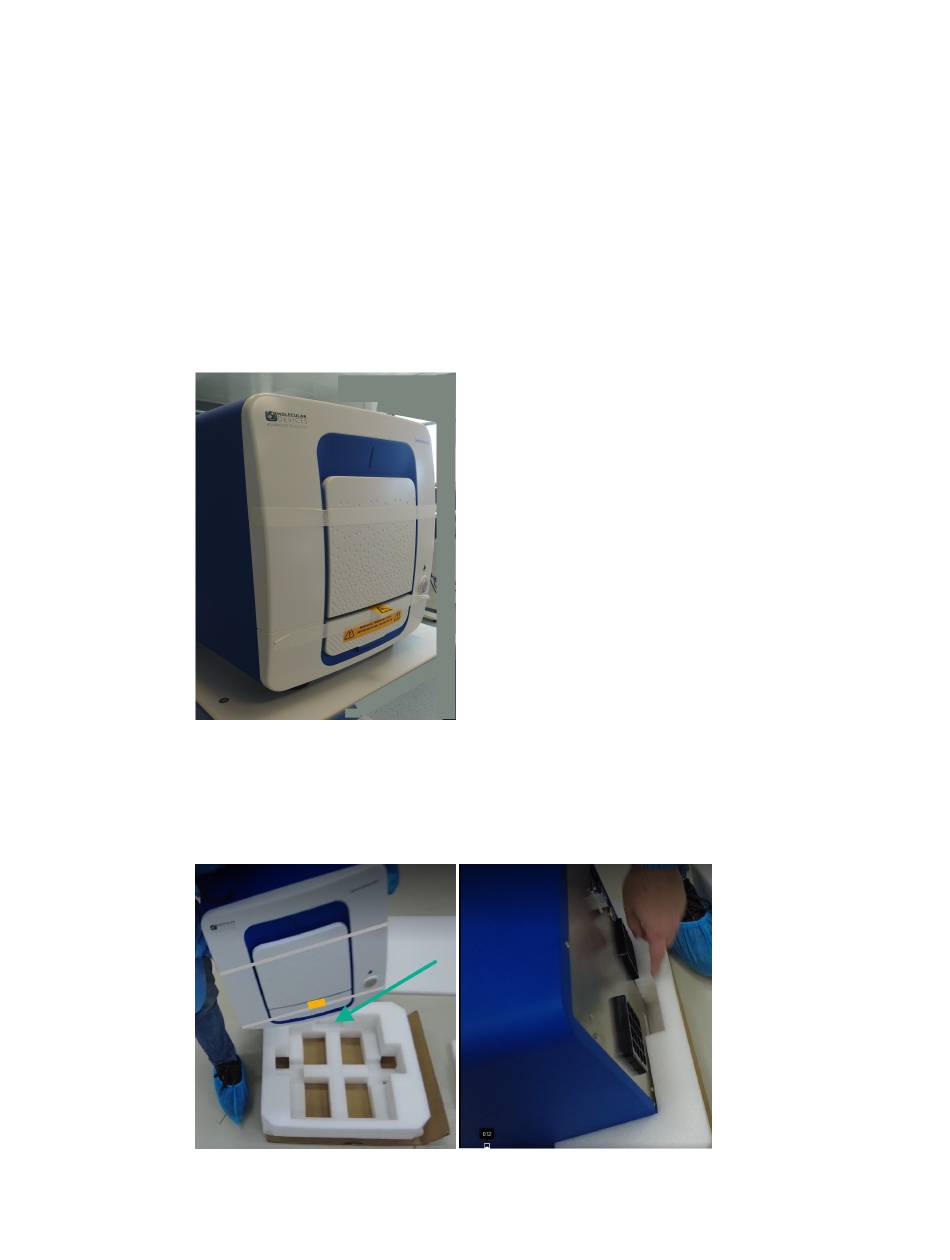

7. Gently push the plate drawer into the instrument so that screw #1 aligns with the hole in the
instrument frame. Hold the plate drawer open until you complete the next steps.
8. Tighten screw #1 in the upper-right corner of the transport lock to secure the plate drawer
to the instrument frame.
9. Route the yellow tab connected to the transport lock so that it passes over the top of the
plate chamber door when the door is closed.
10. Gently close the plate chamber door.
11. Use a strip of minimally adhesive tape to hold the filter chamber door shut and a strip of
tape to hold the plate chamber door shut.
12. With the instrument's original cardboard shipping carton open on the side, place the bottom
cardboard slide at the opening with the handles oriented away from the carton.
13. Place the bottom foam packing material onto the cardboard slide with the medium insert
slot oriented towards the cardboard carton (see following images).
14. Place the instrument onto the bottom foam packaging material with the rear of the
instrument aligned with the medium insert slot (toward the cardboard carton side).
19
5090341 C
