Molecular Devices SpectraMax Mini Installation Manual page 12

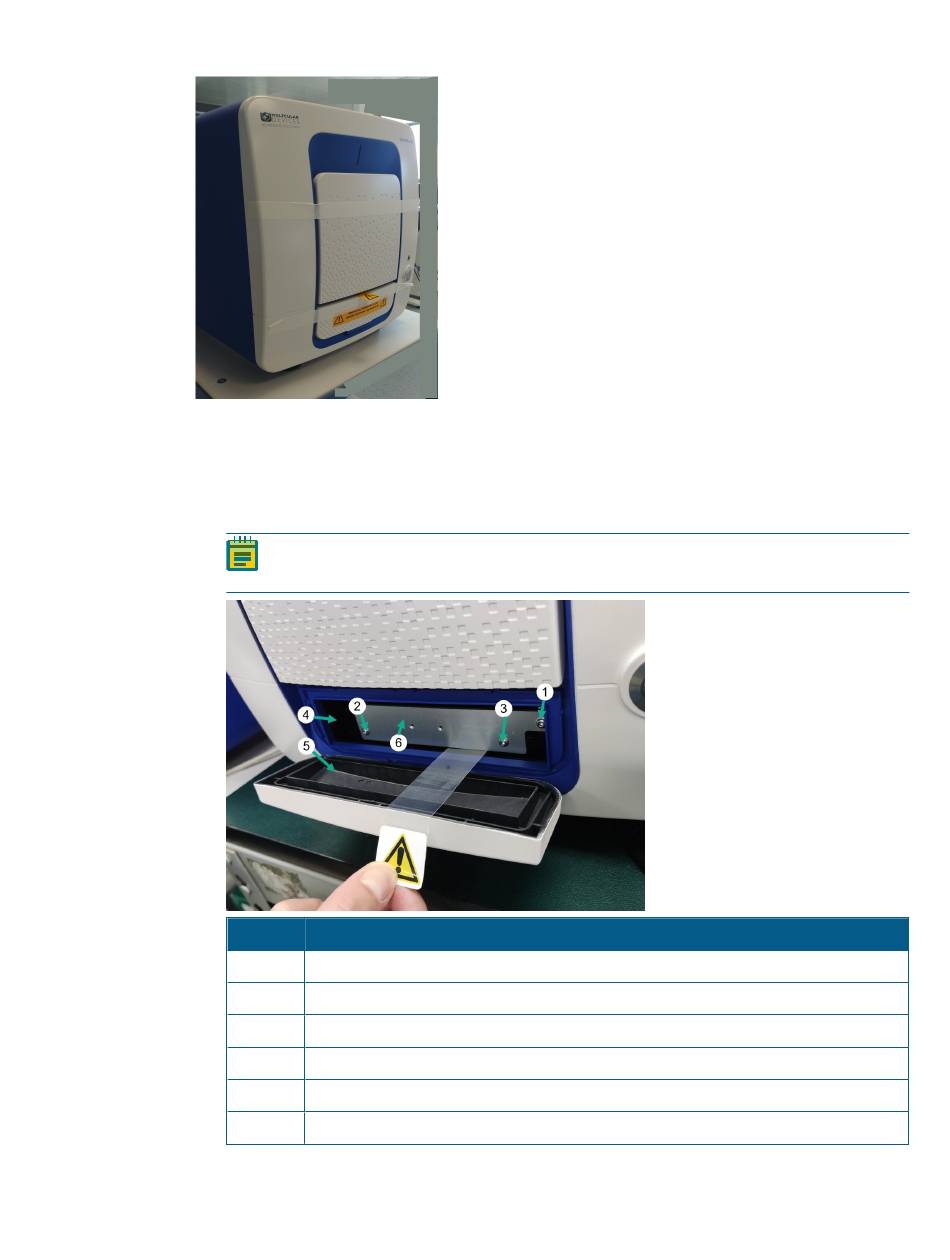

To remove the transport lock:
1. Remove the tape that holds the filter chamber door shut and remove the tape that holds the
plate chamber door shut.
2. Gently pull the yellow tab that protrudes from the plate chamber door to open the door.
Hold the door open while you remove the transport lock.
Item
5090341 C
Note: Do not tear the yellow tab. It remains attached to the transport lock to make it
easier to open the plate chamber door.
Description
1 Screw #1 fastens the lock to the internal frame of the instrument (remove first)
2 Screw #2 fastens the lock to the plate drawer
3 Screw #3 fastens the lock to the plate drawer
4 Plate drawer
5 Plate chamber door in open position
6 Plate drawer transport lock
Chapter 2: Setting Up the Instrument
12
