Dinstar DAG1000-4S Quick Installation Manual

Quick Installation Guide
DAG1000-4S
DAG1000-8S
Thanks for Choosing Dinstar's VoIP Gateway!
Please read this guide carefully before installing the gateway. If you need any technical
support, please contact us.
Tel: +86 755 61919966
Email: support@dinstar.com
Website: www.dinstar.com
1

Number of Ports

Port Type
WAN
Gateway
DAG1000-4S
DAG1000-8S
2

Description of Indicators

Indicator Definition
PWR Power Indicator
Running Indicator
RUN
Telephone In-use
FXS
Indicator
Network Link
Indicator
WAN/ LAN
Network Speed
Indicator
Note: DAG1000-4S has no network speed indicator.
LAN FXS
1 1
1 3
Description
Status
The gateway is powered on
On
The gateway is powered off
Off
or there is no power supply
Slow
The gateway is running properly
Flashing
Fast If there is a SIP account registered
Flashing successfully, the indicator is fast flashing
The gateway is running improperly
Off
FXS port is currently occupied by a call
On
FXS port is idle or faulty
Off
Green
The gateway is properly connected to
Flashing
network
The gateway is not connected to network or
Off
network connection is improper way
On Work at 100Mbps
Work at 10Mbps
Off
3

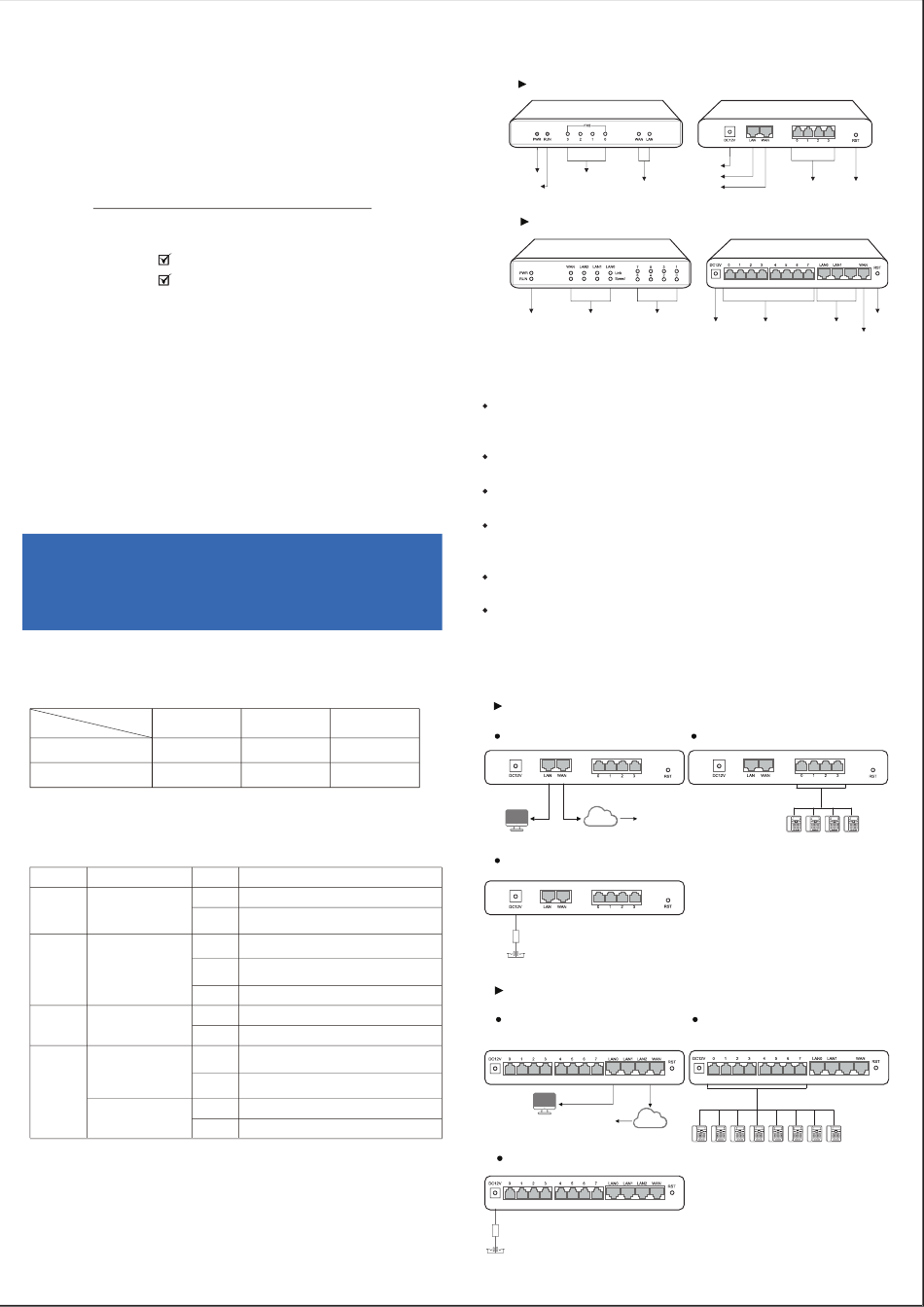

Indicators and Ports
DAG1000-4S
Power Indicator
Running Indicator

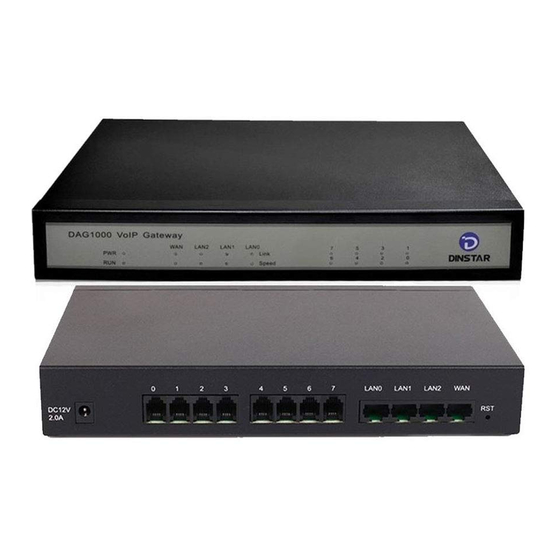

DAG1000-8S
Power Indicator Network Link Indicator
Running Indicator Network Speed Indicator
4

Installation Attentions

Anti-jamming: to reduce the interference with telephone calls, it's highly
recommended that telephone lines connected to the gateway should be placed
away from power cables.
Power supply: the power adapter of the gateway accepts DC input voltage of 12V.
Please ensure safe and stable power supply.
Network bandwidth: please ensure there is enough network bandwidth so as to
guarantee stabilized running of the gateway.
Temperature and humidity: to avoid any accident that might cause malfunction , it's
advised to install the gateway in an equipment room where temperature and
humidity are appropriate.
Ventilation: to avoid overheating, please do not pile up the gateway with other
devices and make sure the gateway has good ventilation around.
Mechanical load: please make sure the gateway is placed steadily to avoid damage.
It's highly advised to horizontally place the gateway on a flat surface or a cabinet.
5

Installation Instructions

Connection Diagram for DAG1000-4S
Network Connection
4
8
Network Cable
PC
Power Connection
Power Adapter
Connection Diagram for DAG1000-8S
Network Connection
PC
Power Connection
Power Adapter
Power Jack
Telephone In-use LAN Port
Indicator
Network Link Indicator
WAN Port
Telephone In-use
Indicator Power Jack
Telephone Connection
Network Cable
LAN
ADSL
Telephone Connection
Network Cable
Network Cable
LAN
ADSL
FXS Port Reset Button
AUX2
Reset
FXS Port LAN Port Button
WAN Port
Telephone Line (RJ11)
Telephone
AUX2
Telephone Line (RJ11)
Telephone
