Quick Installation Guide
Thanks for Choosing Dinstar's VoIP Gateway!
Please read this guide carefully before installing the gateway. If you need any technical
support,
please contact us
Tel: +86 755 61919966
Email: support@dinstar.com
Website: www.dinstar.com

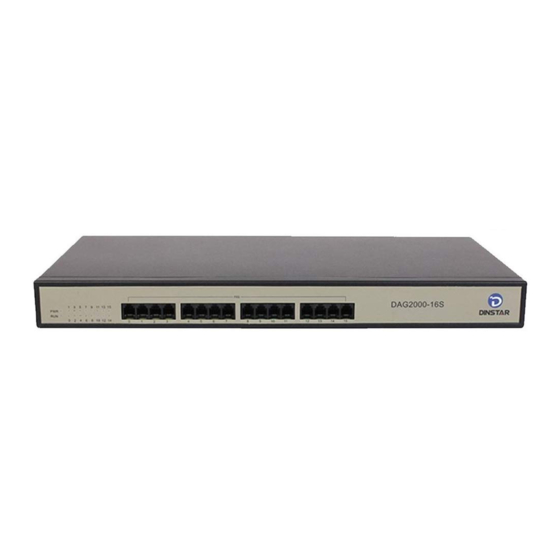

DAG2000-16S
DAG2000-24S/32S
DAG2500-48S/64S/72S
DAG3000-32S
DAG3000-128S
.
v2.0 2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dinstar DAG3000-32S
Summary of Contents for Dinstar DAG3000-32S
- Page 1 Quick Installation Guide DAG2000-16S DAG2000-24S/32S DAG2500-48S/64S/72S DAG3000-32S DAG3000-128S Thanks for Choosing Dinstar’s VoIP Gateway! Please read this guide carefully before installing the gateway. If you need any technical support, please contact us Tel: +86 755 61919966 Email: support@dinstar.com Website: www.dinstar.com...
-
Page 2: Description Of Indicators
DAG3000-32S DAG3000-128S Dinstar ’s VoIP gateways have three types of FXS ports, namely RJ11,RJ21 and RJ45. For the number of ports of each model,please refer to the table above. Please check the model of your gateway before installation,and then refer to corresponding installation instructions. -
Page 3: Indicators & Interfaces
Indicators & Interfaces DAG2000-16S Power Indicator Running Indicator Telephone In-use Indicator FXS Ports 0-15 100-240VAC 50/60Hz Power Switch Power Jack LAN Ports Console Port Reset Button Ground Point DAG2000-24S/32S Power Indicator Running Indicator Telephone In-use Indicator FXS Ports 0-31 (RJ11) 100-240VAC 50/60Hz Console Port... - Page 4 Power Switch Power Jack Reset Button Console Port FXS Ports(RJ21) Note: The position of each indicator and interface of DAG2500-48S and DAG2500-64S is the same as on DAG2000-72S. DAG3000-32S Main Control Board User Board Power Indicator Console Port Power Indicator...
-
Page 5: Installation Attentions
DAG2000-24S/32S is equipped with both RJ11 and RJ21 ports; DAG2500-48S/64S/72S is equipped with RJ21 ports; DAG3000-32S is equipped with RJ45 ports; DAG3000-128S is equipped with RJ45 ports. For the wire sequence of RJ21 and RJ45,please refer to Section 6 Wire Sequence of this manual. -
Page 6: Installation Instructions
Installation Instructions Connection Diagram for DAG2000-16S Connect gateway with network via a switch Network Cable Network Cable Switch Connect FXS ports with analog phones RJ11 telephone line Telephone Connect gateway with power input and ground point 100-240VAC 50/60Hz Grounding Cable 100-240V AC Ground Point... - Page 7 Connection Diagram forDAG2000-24S/32S Connect gateway with network via a switch 100-240VAC 50/60Hz Network Cable Network Cable Switch Type 1: Connect FXS ports with analog phones RJ11 Cable(Telephone Line) Telephone Type 2: Connect FXS ports with analog phones RJ21 Cable Telephpne Connect gateway with power input and ground point 100-240VAC 50/60Hz...
- Page 8 Connection Diagram for DAG2500-48S/64S/72S Connect gateway with network via a switch 100-240VAC 50/60Hz Network Cable Network Cable Switch Connect FXS ports with analog phones 100-240VAC 50/60Hz RJ21 Cable Telephone Connect gateway with power input and ground point 100-240VAC 50/60Hz Grounding Cable 100-240V AC Gound Point...
- Page 9 Connection Diagram for DAG3000-32S Connect gateway with network via a switch Network Cable Network Cable Switch Connect FXS ports with analog phones RJ45 Cable Telephone Connect gateway with power input and ground point POWER A POWER B 100-240VAC 100-240VAC 50/60Hz...
- Page 10 Connection Diagram for DAG3000-128S Connect gateway with network via a switch Network Cable Network Cable Switch Connect FXS ports with analog phones RJ45 Cable Telephone Power Connection & Grounding POWER A POWER A 100-240VAC 50/60Hz POWER A POWER B POWER 100-240VAC 50/60Hz Grounding Cable...
- Page 11 RJ45 & RJ21 Wire Sequence · RJ45 Wire Sequence DAG3000-32S and DAG3000-128S is equipped with RJ45 interface as FXS port. One RJ45 cable can output four calls.The internal wire sequence of RJ45 cable is shown as follows: Orange & White...
- Page 12 Modify PC’s IP Address To log in the Web Management System of the gateway, you need to modify the IP address of PC first to make it at the same network segment with the gateway. On the PC, click ‘Network (or Ethernet) → Properties’. Double-click ‘Internet Protocol Version 4 (TCP/IPv4)’.
- Page 13 Modify Gateway’s IP Address If you want to modify the IP address of the gateway, please click ‘Network → Local Network’ in the navigation tree on the left of the Web Management System, and then input new IP address and DNS server address on the displayed interface. Configure Gateway (1) Configure SIP Server Log in the Web Management System of the gateway, and then click SIP Server in the...
-
Page 14: Basic Operations
This document only provides instructions for quick installation and basic configuration, For detailed configuration and parameter explanation, please refer to user manual or ask for online technical support. Honest, Concentrated, Innovative, Open Shenzhen Dinstar Co., Ltd. Website: http://www.dinstar.com Facebook: http://www.facebook.com/dinstarvoip/...
