Quick Installation Guide
Thanks for Choosing Dinstar's Product!
Please read this guide carefully before installing the gateway. If you need any technical support, please
contact us.
Tel: +86 75561919966
Email: support@dinstar.com
Website: www.dinstar.com
DAG1000-1S
DAG1000-2S
DAG1000-4S
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dinstar DAG1000-1S
Summary of Contents for Dinstar DAG1000-1S
- Page 1 Quick Installation Guide DAG1000-1S DAG1000-2S DAG1000-4S Thanks for Choosing Dinstar's Product! Please read this guide carefully before installing the gateway. If you need any technical support, please contact us. Tel: +86 75561919966 Email: support@dinstar.com Website: www.dinstar.com...
- Page 2 1. Models and Ports Port Type Gateway DAG1000-1S DAG1000-2S DAG1000-4S 2. Description of Indicators Indicator Definition Status Description The gateway is powered on Power Indicator The gateway is powered off or there is no power supply Slow The gateway is running properly...
-
Page 3: Installation Attentions

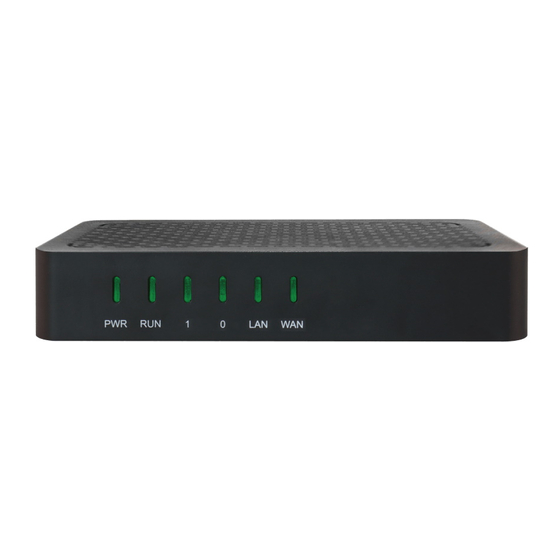

3. Indicators and Ports DAG1000-1S ► ► DAG1000-2S ► DAG1000-4S 4. Installation Attentions ⚫ Anti-jamming: to reduce the interference with telephone calls, it's highly recommended that telephone lines connected to the gateway should be placed away from power cables. ⚫ Power supply: the power adapter of the gateway accepts DC input voltage of 12v. -
Page 4: Installation Instructions
⚫ Mechanical load：please make sure the gateway is placed steadily to avoid damage. It's highly advised to horizontally place the gateway on a flat surface or a cabinet. 5. Installation Instructions ► Connection Diagram for DAG1000-1S ► Connection Diagram for DAG1000-2S... - Page 5 ► Connection Diagram for DAG1000-4S 6 Modify PC's IP Address To log in the Web Management System of the gateway, firstly, you need to modify the IP address of PC which is used to access the gateway and to make it at the same network segment with the gateway.
- Page 6 ○ 2 Double-click ‘Internet Protocol Version 4 (TCP/IPv4)'. ○ 3 Select 'Use the following IP address', and then enter an available IP address ‘192.168.11.XXX' which is at the same network segment with '192.168.11.1'. Log in Web Management System Open a web browser and enter the gateway's IP address (default IP is 192.168.11.1). Then, input username and password in the displayed login GUI.
- Page 7 8 Modify Gateway's IP Address If you want to modify the IP address of DAG1000-1S/2S/4S, please click 'Network → Local Network' in the navigation tree on the left of the Web Management System, and then input new IP address and DNS server address on the displayed interface.
- Page 8 11 More Details This document only provides instructions for quick installation and basic configuration, for detailed configuration and parameter explanation, please make reference to user manual or ask for online technical support. IP Communication Solutions Shenzhen Dinstar Co.,Ltd. Website: https://www.dinstar.com...
