- Page 1 USER MANUAL ENGLISH Accent Spot Q4 Product code: 42541 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Accent Spot Q4 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Accent Spot Q4 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Accent Spot Q4 Settings ................................27 Selecting Dimming Curves .......................27 Setting Dimmer Speed ........................28 Setting PWM Frequency ........................28 DMX Failure Settings ...........................28 DMX Synchronization .........................29 Display Lock ............................29 Restoring Factory Settings .........................29 Device Information.............................30 DMX Channels ..............................30 RDM Information ...............................32 RDM Details ..............................32 Supported RDM PIDs for the Device .......................32 Troubleshooting ..............................
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Accent Spot Q4 ● Schuko to Power Pro cable (1,8 m) ● Beamshaper 10°... -
Page 6: Symbols And Signal Words
Accent Spot Q4 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Accent Spot Q4 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions DANGER Danger for children For adult use only. - Page 8 Accent Spot Q4 WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 9: Requirements For The User
Accent Spot Q4 Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. ●... -
Page 10: Description Of The Device

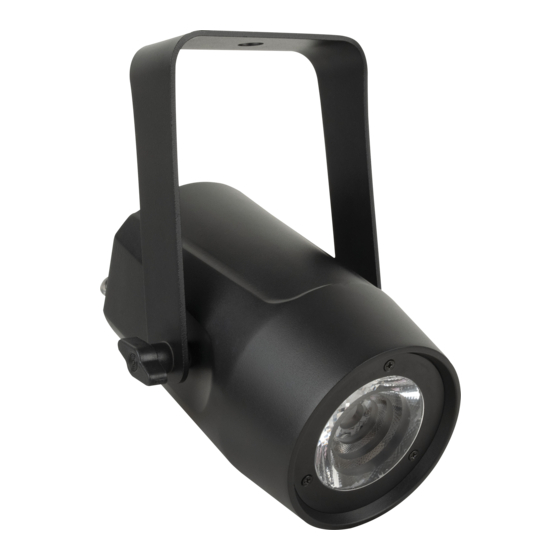

Description of the Device The Showtec Accent Spot Q4 is a compact indoor spot effect. It can be used for accent lighting. The device is delivered with 2 beamshapers (10° and 40°). The device can be used in many applications, both in rental and fixed installations. -
Page 11: Product Specifications
Accent Spot Q4 Product Specifications Model: Accent Spot Q4 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 21 W Physical: Dimensions: 245 x 160 x 105 mm (L x W x H) Weight: 1,7 kg Optics: Light source: 1 x 25 W RGBW LED Dimmer: 0–100 %... -
Page 12: Optional Accessories
Accent Spot Q4 Optional Accessories The device is delivered with the following accessories: ● Product code: 42545 (Beamshaper for Accent Spot Q4/SW (10°) ● Product code: 42547 (Beamshaper for Accent Spot Q4/SW (40°) You can additionally purchase the following accessories: ●... -
Page 13: Rigging
Accent Spot Q4 Rigging The device can be mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during rigging and/or derigging. To mount the device, follow the steps below: 01) Use a clamp to attach the device to the supporting structure, as shown in Fig. -
Page 14: Angle Adjustment
Accent Spot Q4 Angle Adjustment You can adjust the angle of the device with the 2 adjustment screws (02). 01) Turn the 2 adjustment screws (02) counterclockwise to release them. 02) Tilt the device to the desired angle (see Fig. 06). 03) Turn the 2 adjustment screws (02) clockwise to tighten them. -
Page 15: Connecting To Power Supply
Accent Spot Q4 Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 16: Setup
Accent Spot Q4 Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Accent Spot Q4 is not connected to a controller or to other devices, it functions as a stand- alone device. -
Page 17: Dmx Cables
Accent Spot Q4 DMX Cables Shielded twisted-pair cables with 3-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. -
Page 18: Dmx Linking
Accent Spot Q4 DMX Linking To connect multiple devices on one DMX data link, follow the steps below: Use a 3-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the first device. 02) Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a 3-pin DMX cable. -
Page 19: Operation
Accent Spot Q4 Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for professional use as an indoor spot effect. It is suitable only for indoor installation. -
Page 20: Control Panel
Accent Spot Q4 To operate multiple devices in the master/slave mode: 01) Use the first device as a master and use the remaining devices as slaves. See 6.6.6. Slave Mode on page 26 for more information. 02) Operate the master device in the Auto mode, Manual mode, Built-in Programs mode or the Sound- controlled mode. -
Page 21: Start-Up
Accent Spot Q4 Start-up Upon start-up, the display will show a splash screen with the software version and current temperature of the device. Immediately afterwards, the display will show the start screen (if the device is locked) or the main menu (if the device is unlocked). -
Page 22: Menu Overview
Accent Spot Q4 Menu Overview Product code: 42541... - Page 23 Accent Spot Q4 Product code: 42541...
-
Page 24: Main Menu Options
Accent Spot Q4 Main Menu Options 01) Press the UP/DOWN buttons to select one of the following options: ● 1. DMX ● 2. Manual ● 3. Auto ● 4. Program ● 5. CCT ● 6. Slave ● 7. Sound ● 8. -
Page 25: Dmx Channel Mode
Accent Spot Q4 DMX Channel Mode In this submenu you can select the DMX channel mode. 01) Press the UP/DOWN buttons to select the desired DMX channel mode. There are 3 options available: ● 4-channel mode ● 6-channel mode ● 12-channel mode 02) Press the SETUP button to confirm the selection. -
Page 26: Program Mode
Accent Spot Q4 Program Mode In this menu you can run the 16 built-in programs. 01) Press the UP/DOWN buttons to select MODE: 02) Press the SETUP button to confirm the selection. 03) Press the UP/DOWN buttons to select one of the 16 available built-in programs: ●... -
Page 27: Correlated Color Temperature
Accent Spot Q4 03) Press the UP/DOWN buttons to set the program speed. The adjustment range is 1–100, from slow to fast. 04) Press the SETUP button to confirm the selection. 05) Press the UP/DOWN buttons to select STROBE: 06) Press the SETUP button to confirm the selection. 07) Press the UP/DOWN buttons to set the strobe frequency. -
Page 28: Settings
Accent Spot Q4 Settings In this menu you can adjust the settings of the device. 01) Press the UP/DOWN buttons to select one of the 7 options. The available options are: ● 1. Curves Select: See 6.6.8.1. Selecting Dimming Curves ●... -
Page 29: Setting Dimmer Speed
Accent Spot Q4 Setting Dimmer Speed In this submenu you can set the dimmer speed. 01) Press the UP/DOWN buttons to choose one of the 2 options: ● Fast: Light output will follow DMX dimmer value directly ● Smooth: Light output will follow DMX dimmer value with fade time to create smooth transitions 02) Press the SETUP button to confirm the selection. -
Page 30: Dmx Synchronization
Accent Spot Q4 DMX Synchronization In this submenu you can determine behavior of the device, when using multiple Accent Spots in the master/slave mode. 01) Press the UP/DOWN buttons to choose between ON and OFF. If you choose ON, the device will perform the same action as the other connected devices, without delays. -
Page 31: Device Information
Accent Spot Q4 Device Information In this menu you can view the firmware version, the temperature of the LEDs, the total operating hours and the ID of the device. ● Version: Shows the current firmware version ● Temperature: Shows the current temperature of the LEDs ●... - Page 32 Accent Spot Q4 4 CH 6 CH 12 CH Function Value Setting 084–090 Color 12 (R000 G255 B050 W000) 091–097 Color 13 (R000 G255 B150 W000) 098–104 Color 14 (R000 G255 B255 W000) 105–111 Color 15 (R000 G255 B255 W075) 112–118 Color 16 (R000 G255 B255 W150) 119–125...
-
Page 33: Rdm Information
This device supports RDM. Refer to 6.9.2. Supported RDM PIDs for the Device for more information. RDM Details ● Responder ID: 29B4:091XXXXX ● Manufacturer's ID: Showtec (Highlite International B.V.) ● Manufacturer Label: Showtec ● Model Description: Accent Spot Q4 ●... -
Page 34: Troubleshooting
Accent Spot Q4 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 35: Maintenance
Accent Spot Q4 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. -
Page 36: Corrective Maintenance
Accent Spot Q4 Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING... -
Page 37: Disposal
Accent Spot Q4 Disposal Correct disposal of this product Waste Electrical and Electronic Equipment This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. Dispose of this product by handing it to the respective collection point for recycling of electrical and electronic equipment. - Page 38 Accent Spot Q4 Product code: 42541...
