- Page 1 MANUAL ENGLISH Performer Fresnel Mini DMX Ordercode: 33054 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Performer Fresnel Mini DMX Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................6 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Features ..................................7 Overview .................................. -
Page 3: Warning
Performer Fresnel Mini DMX Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 ● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Performer Fresnel Mini DMX ● Repairs, servicing and electric connection must be carried out by a qualified technician. ● WARRANTY: Till one year after date of purchase. Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. - Page 6 Performer Fresnel Mini DMX The Performer Fresnel Mini can be placed on a flat stage floor, by means of the included mounting bracket, or be mounted to any kind of truss with a clamp and a quick-lock bracket. Improper installation can cause serious damage to people and property!
-
Page 7: Connection With The Mains
Performer Fresnel Mini DMX Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER... -
Page 8: Description Of The Device

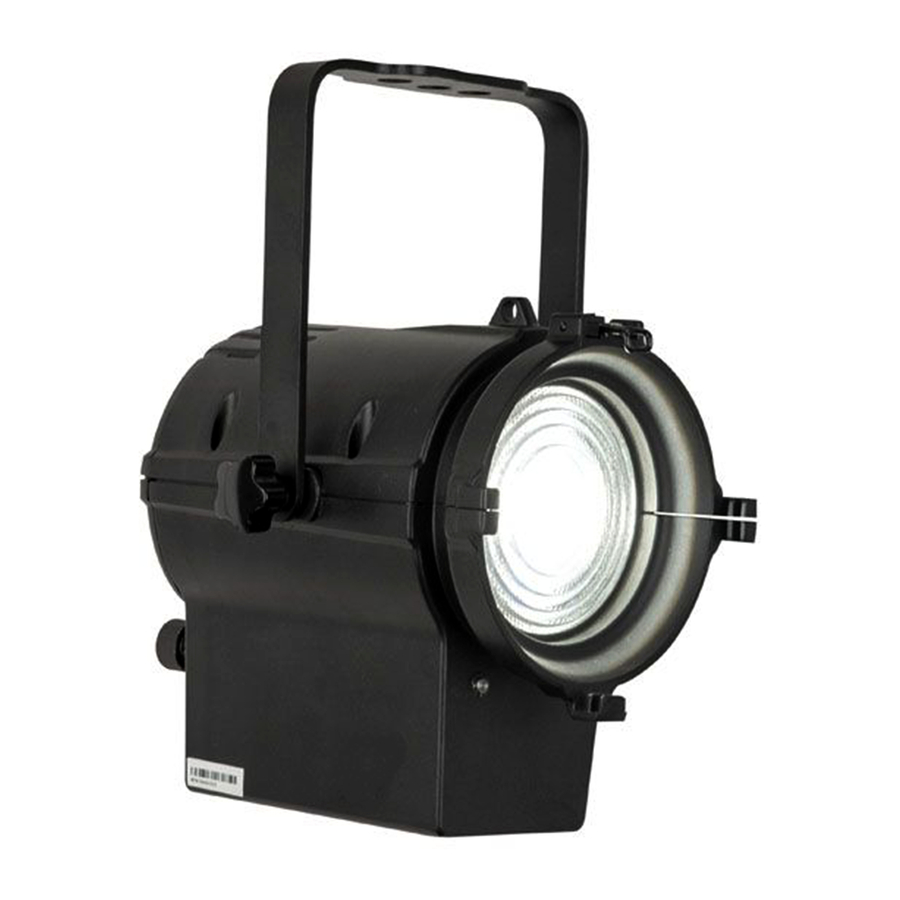

Description of the device Features The Showtec Performer Fresnel Mini spotlights are extremely suitable for a wide range of applications. They can be used as accent lighting on decors, at company parties, in theatres and even for TV applications. Due to their compact design, they can be used anywhere. The manual zoom ensures that the bundle is adjustable in the right size and the supplied barn door ensures the correct design of the bundle. -
Page 9: Overview
Performer Fresnel Mini DMX Overview Fig. 01 01) Safety eye 02) 1x 30W LED 03) Filterframe 04) Mounting brackets with inclination screw 05) Adjustment screw Back Fig. 02 06) Input voltage: 100–240 V AC, 50/60 Hz 07) DMX signal connector (OUT) 3-pin... -
Page 10: Installation
Performer Fresnel Mini DMX Installation Remove all packing materials from the Performer Fresnel Mini. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 11: Zoom Operation
Performer Fresnel Mini DMX Zoom operation Turn the zoom button counter clockwise to increase the Angle. Turn the zoom button clockwise to reduce the Angle. Ordercode: 33054... -
Page 12: Set Up And Operation
Performer Fresnel Mini DMX Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. -
Page 13: Fixture Linking
Performer Fresnel Mini DMX Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 14: Set Dmx Address
Performer Fresnel Mini DMX Set DMX address To set the DMX address you have to use an RDM controller, example: 50550-RDM Commander 50409-RDM Touch V1-E Connecting the Performer to an RDM device 01) To set the DMX address of your Performer you have to use a separate device. -
Page 15: How To Set The Dmx Address
Performer Fresnel Mini DMX How to set the DMX address 01) Turn the jog wheel to select RDM Data Test 02) Press the jog wheel to open the desired menu. 03) The display shows: 04) Select Get&Set RDM Parameter. 05) Press the jog wheel, the display shows: 06) If no fixture is detected, please check the cables and connections. -
Page 16: Dmx Channels
Performer Fresnel Mini DMX 09) Turn the jog wheel to select Para, you can obtain info and control the connected fixture. 10) Press the jog wheel to open the desired menu. 11) The display shows real-time info about the fixture. -
Page 17: Maintenance
Performer Fresnel Mini DMX Maintenance The Showtec Performer Fresnel Mini requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. - Page 18 Check if power is switched on and No power to the fixture One or more cables are plugged in fixtures do not ● Return the device to your Showtec function at all Internal fuse blown dealer Fixtures reset The controller is not connected ●...
-
Page 19: Product Specifications
Performer Fresnel Mini DMX Product Specifications Model: Showtec Performer Fresnel Mini Input voltage: 100–240V AC, 50/60 Hz Power consumption: 22 W Dimensions: 275 x 175 x 188 mm (LxWxH) Weight: 2,54 kg (excl. adapter) 2,86 kg (incl. adapter) Electro-mechanical effects:... -
Page 20: Dimensions
Performer Fresnel Mini DMX Dimensions Ordercode: 33054... -
Page 21: Notes
Performer Fresnel Mini DMX Notes Ordercode: 33054... - Page 22 Performer Fresnel Mini DMX Ordercode: 33054...
- Page 23 Performer Fresnel Mini DMX Ordercode: 33054...
- Page 24 ©2020 Showtec...
