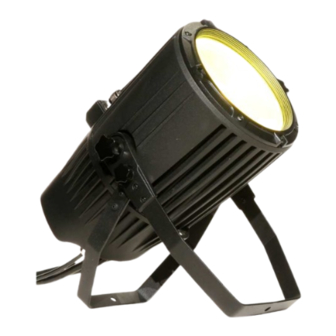

- Page 1 XPar 150 Zoom PR-8203 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.
-
Page 2: Table Of Contents
INDEX SAFETY AND WARNINGS…………………………………………………………………………………………………… INSTUCTIONS ………………………………………………………………………………………………………………… ●CLEANING AND MAINTENANCE ………………………………………………………………………………………… ●TROUBLESHOOTING………………………………………………………………………………………………………… 3. APPEARANCE ………………………………………………………………………………………………………………… 4. INSTALLATION ……………………………………………………………………………………………………………… ●RIGGING ……………………………………………………………………………………………………………………… ●PLACE A UNIT ON A FLAT SURFACE……………………………………………………………………………………… ●INSTALLATION OF BARN DOOR…………………………………………………………………………………………… ●TRANSPORTATION…………………………………………………………………………………………………………… ●POWER CONNECTIONS …………………………………………………………………………………………………… ●DMX CONTROL CONNECTION …………………………………………………………………………………………… ●DMX TERMINATOR ………………………………………………………………………………………………………… 5. -
Page 3: Safety And Warnings
1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective High Warning Flames Goggles Manual shock Gloves Temperature ●... -
Page 4: Instuctions
●After running for 5minutes at constant temperature environment, the temperature of the housing of the projector is 45℃.After stable operation , its temperature is70℃. ●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not mean the projector has some defects. -
Page 5: Appearance
3. APPEARANCE (The unit has two different settings. One is with wireless control function and the other version without it. After either version leaves the factory, they can’t be changed in between as you like) With wireless control function Without wireless control function Product’s External Functional Sketch：... -
Page 6: Installation
Wireless Antenna Only Supplied with the version with Wireless control function Butterfly screws Installation and dismantlement of barn door 4. INSTALLATION on flat surface with antenna facing up Safety Cord run through safety cord hole Support hung with antenna facing down ●RIGGING Before moving the unit, lock the adjusting knob. -
Page 7: Transportation
Barn door Place butterfly screws holding parts in the shape of 7 If the frost panel is also selected , it must be used in combination of the barn door. Its Installation and Dismantlement is illustrated in the diagrams below: barn door frost panel screws ×4... -
Page 8: Dmx Control Connection
Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off. Note: If projectors are connected in series, please connect POWERIN port of the 1 projector with the Power Mains, then connect its POWER OUT with POWER IN of the 2... -
Page 9: Dmx Terminator
● DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 10: Operation Menu
Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press “Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns . ● STAND-ALONE MODE Operate the projector without connecting with a controller, enable the master mode through the operation panel, the projector will run in Stand-Alone mode automatically. -
Page 11: Dmx Protocol
RGBW Zoom 000-255 DMX Mode User Memory Preset Memory（PR01~PR16） Dimmer 0-255 Strobe 0-255 Operation Mode 0-255 User Progra Edit Green 0-255 Blue 0-255 （ET01~ET16） White 0-255 Zoom 0-255 Keep Time 0-255 Note: In one DMX chain, only one unit can be made as the master. Before master works, unplug its XLR cable connected with the console. - Page 12 Blue 000-255 Linear change from light to dark White 000-255 Linear change from light to dark 000-007 Strobe 008-255 Strobe from slow to fast 001-015 Preset memory 1 016-031 Preset memory 2 032-047 Preset memory3 048-063 Preset memory 4 064-079 Preset memory 5 080-095 Preset memory 6...
-
Page 13: Technical Data
112-127 Speed 8 128-143 Speed 9 144-159 Speed 10 160-175 Speed 11 176-191 Speed 12 192-207 Speed 13 208-223 Speed 14 224-239 Speed 15 240-255 Speed 16, slowest Note: DMX channel priority: Preset memory> user memory >Macros>RGBW dimming While higher priority channels are in use, lower priority channels don’t work. TECHNICAL DATA INPUT VOLTAGES: 100V~240V AC，50/60Hz RATED POWER :200W@220V... - Page 14 LED lamp board temperature and fixture time available in the menus DMX channel mode and settings displayed LCD and inverted display Display backlight automatically shut off after delay Parameters like operation mode and etc. transmitted under synchronization DMX512 wireless receiver DMX512 wireless transmitter (optional) HOUSING: High tensile cast Aluminum alloy , IP67...
-
Page 15: Circuit Diagram And Pcb Connections
2447 55°（lux） 5371 1640 22°（lux） DISTANCE （m） 22° DIAMETER （m） 0.78 1.57 2.35 3.14 3.92 4.71 55° DIAMETER （m） 1.92 3.84 5.76 7.69 9.61 11.53 9. CIRCUIT DIAGRAM AND PCB CONNECTIONS ● CIRCUIT DIAGRAM POWER DRV1 - 13 -... -
Page 16: Pcb Connections
●PCB CONNECTIONS Master Board Name Travel Switch for stepping motor Thermal switch Wireless board PWM signal Stepping Motor Power supply Signal input Signal output(Reserved) Fan (Reserved) Slaves Name - 14 -... -
Page 17: Component Order Codes
LED driver power supply PWM signal input 10. COMPONENT ORDER CODES Name Code No. Remarks Power Switch 192010201 LED light source 150020300 LED Driver Board 230060486 230060494 Only for version with wireless control LCD master board 230060496 Only for version without wireless control Reflector 060060071 Front Glass Panel... - Page 18 - 16 -...
- Page 19 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320020431...
