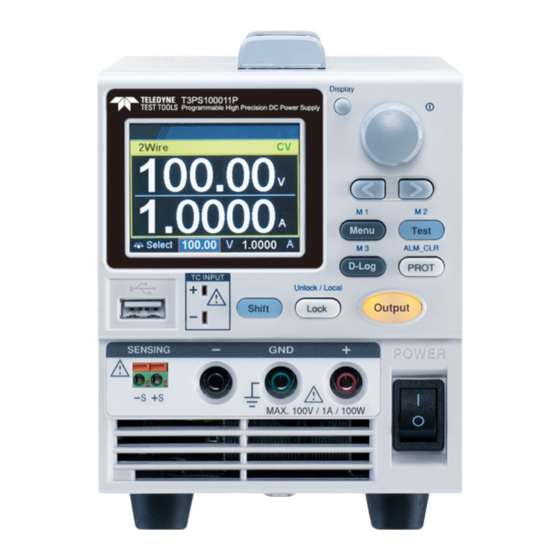

Programmable high precision dc power supplies
Hide thumbs

Advertisement

Quick Links

Download this manual
T3PS20051P, T3PS36031P, T3PS100011P
Programmable High Precision DC Power
Supplies
User Manual

Advertisement

loading

Related Manuals for Teledyne T3PS20051P

Summary of Contents for Teledyne T3PS20051P

  • Page 1 T3PS20051P, T3PS36031P, T3PS100011P Programmable High Precision DC Power Supplies User Manual...
  • Page 2 Teledyne LeCroy company. The information in this manual was correct at the time of printing. However, Teledyne LeCroy continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.
  • Page 3 TABLE OF CONTENTS Table of Contents SAFETY INSTRUCTIONS ..........5 GETTING STARTED ............8 T3PS Series Overview ..........9 Appearance .............. 11 Theory of Operation ..........19 OPERATION ..............29 Set Up ..............30 Menu Tree ............... 39 Basic Operation ............45 Sequence Test ............
  • Page 4 T3PS Series User Manual COMMUNICATION INTERFACE ........180 Interface Configuration .......... 181 FAQ ................203 APPENDIX ..............205 T3PS Factory Default Settings ........ 205 T3PS Specifications ..........208 Dimensions ............214 INDEX ................215...
  • Page 5 SAFETY INSTRUCTIONS AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to ensure your safety and to keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument.
  • Page 6 T3PS Series User Manual Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines Do not place any heavy object on the T3PS. General ...
  • Page 7 SAFETY INSTRUCTIONS Disconnect the power cord before cleaning. Cleaning the  T3PS Use a soft cloth dampened in a solution of mild  detergent and water. Do not spray any liquid. Do not use chemicals containing harsh material  such as benzene, toluene, xylene, and acetone. Location: Indoor, no direct sunlight, dust free, Operation ...
  • Page 8 T3PS Series User Manual ETTING STARTED This chapter describes the power supply, including its main features and front / rear panel introduction. After going through the overview, please read the theory of operation to become familiar with the operating modes, protection modes and other safety considerations.
  • Page 9 GETTING STARTED T3PS Series Overview Series lineup The T3PS series consists of 3 models, covering a number of different current, voltage and power capacities: Model name Operation Voltage Operation Current Rated Power T3PS20051P 0-20V 0-5A 100W T3PS36031P 0-36V 0-3A 108W...
  • Page 10 Before using the T3PS power supply unit, check the package contents to make sure all the standard accessories are included. Standard Accessories Description Qty. Test leads for T3PS20051P/T3PS36031P (Binding Posts Terminal), 1m, 10A Short Bar (Binding Posts Terminal) Test leads for T3PS20051P/T3PS36031P...
  • Page 11 GETTING STARTED Appearance Front Panel Used to switch among 4 different Display display modes. Button Used to navigate menu, and to Knob Key configure or confirm voltage/current/time values, among others. Also, the indicator on the upper-right corner shows current state and power mode.
  • Page 12 T3PS Series User Manual Used to select a parameter number in Left/Right the Function settings. Also the left Arrow Keys arrow key can be used as backspace. Used to enter the Menu page. Refer to Menu Button page 108 for detail. (+Shift) Used to recall the M1 setup.
  • Page 13 Terminal drop occurred in load leads. Used to turn the power on/off. 14. Power Switch DC output terminal for 15. Output T3PS is Binding Posts terminal Terminal or European Type Jack Terminal. T3PS20051P the max. output is 20V/5A/100W...
  • Page 14 T3PS Series User Manual DC output terminal for T3PS is Binding Posts Terminal or European Type Jack Terminal. T3PS36031P the max. output is 36V/3A/108W DC output terminal for 15. Output T3PS is European Type terminal Jack Terminal. T3PS100011P the max. output is 100V/1A/100W 16 Display Area The display area shows set values, output values and parameter settings.
  • Page 15 GETTING STARTED Display Area 2-wire or 4-wire indicator. 2Wire/4Wire Displays the voltage. Voltage Meter Displays the current. Current Meter The scrolling symbol indicates to select V/A Set between V and A set via scrolling knob key. Guidance When the external CC or CV control is External CC &...
  • Page 16 T3PS Series User Manual When Output On/Off Dly is enabled, the icon DLY Icon will be shown accordingly. Note that when SEQ appears, the icon will be faded out. When CV/CC Slew Rate Priority VSR/ISR (CVLS/CCLS) is activated, the icon will be Icon shown.
  • Page 17 GETTING STARTED Rear Panel Two different types of cables can be used for Remote-IN RS232 or RS485-based remote control. Remote-OUT RJ-45 connector that is used to daisy chain power supplies with the Remote-IN port to form a communication bus. Ethernet port for controlling the T3PS remotely USB port for controlling the T3PS remotely.
  • Page 18 T3PS Series User Manual The AC selector is located at the AC Select bottom side of the unit. Switch Switch Voltage to 100V, 120V, 220V or 240V. External analog remote control connector. EXT I/O...
  • Page 19 GETTING STARTED Theory of Operation The theory of operation chapter describes the basic principles of operation, protection modes and important considerations that must be taken into account before use. Operating Description The T3PS power supplies are regulated DC power Background supplies with a stable voltage and current output.
  • Page 20 T3PS Series User Manual CC and CV Mode When the power supply is operating in constant CC and CV mode current mode (CC) a constant current will be Description supplied to the load. When in constant current mode the voltage output can vary, whilst the current remains constant.
  • Page 21 GETTING STARTED Conversely the power supply will operate in CC mode when the load resistance is less than the critical resistance. In CC mode the current output is equal to I and the voltage output is less than Crossover >R point <R Slew Rate...
  • Page 22 T3PS Series User Manual High Speed Priority Slew rate = mode Enabled Bleeder Control The T3PS DC power supplies employ a bleed Background resistor in parallel with the output terminals. T3PS Bleed resistor Bleed resistors are designed to dissipate the power from the power supply filter capacitors when power is turned off and the load is disconnected.
  • Page 23 GETTING STARTED By default the bleed resistance is on. For battery Note charging applications, be sure to turn the bleed resistance off as the bleed resistor can discharge the connected battery when the unit is off. Alarms The T3PS power supplies have a number of protection features. When one of the protection alarms is set, the ALM icon on the display will be lit.
  • Page 24 T3PS Series User Manual Considerations The following situations should be taken into consideration when using the power supply. When the power supply switch is first turned on, Inrush current an inrush current is generated. Ensure there is enough power available for the power supply when first turned on, especially if a number of units are turned on at the same time.
  • Page 25 GETTING STARTED When the power supply is connected to a Reverse Current: regenerative load such as a transformer or Regenerative load inverter, reverse current will feed back to the power supply. The T3PS power supply cannot absorb reverse current. For loads that create reverse current, connect a resistor in parallel (dummy load) to the power supply to bypass the reverse current.
  • Page 26 T3PS Series User Manual Ensure the reverse withstand voltage of the diode is CAUTION able to withstand 2 times the rated output voltage of the power supply and the forward current capacity can withstand 3 to 10 times the rated output current of the power supply.
  • Page 27 GETTING STARTED Grounding The output terminals of the T3PS power supplies are isolated with respect to the protective grounding terminal. The insulation capacity of the load, the load cables and other connected devices must be taken into consideration when connected to the protective ground or when floating.
  • Page 28 T3PS Series User Manual If the positive or negative terminal is connected to Grounded output the protective ground terminal, the insulation terminal capacity needed for the load and load cables is greatly reduced. The insulation capacity only needs to be greater than the maximum output voltage of the power supply with respect to ground.
  • Page 29 OPERATION PERATION Set Up ..............30 Power Up ..................30 Wire Gauge Considerations ............31 Output Terminals ................32 Connection with the front panel output terminal ........32 How to Use the Instrument ............33 Reset to Factory Default Settings ..........37 View System Version...............
  • Page 30 T3PS Series User Manual Set Up Power Up Make sure that the power source is shut off. Background Use the AC power cable supplied with the product. 1. Connect the power cord to Steps the rear panel socket. Before connecting the power plug to an AC line outlet, Note make sure the voltage selector switches of the bottom panel in the correct position.
  • Page 31 OPERATION Wire Gauge Considerations Before connecting the output terminals to a load, Background the wire gauge of the cables should be considered. It is essential that the current capacity of the load cables is adequate. The rating of the cables must equal or exceed the maximum current rated output of the instrument.
  • Page 32 T3PS Series User Manual Output Terminals Before connecting the output terminals to the Background load, first consider whether voltage sense will be used, the gauge of the cable wiring and the withstand voltage of the cables and load. Dangerous voltages. Ensure that the power to the WARNING instrument is disabled before handling the power supply output terminals.
  • Page 33 OPERATION How to Use the Instrument The T3PS power supplies generally use the knob Background key and arrow keys to enter each page and setting, to return to previous page, to edit numerical values or to confirm settings. The following section will explain some of these concepts in detail.
  • Page 34 T3PS Series User Manual 3. Use arrow keys to move the cursor to desired digits followed by scrolling knob key to edit values. Repeat the step for each digit until target value. Cursor 4. Click the knob key to confirm the input value setting (10.100).
  • Page 35 OPERATION 2. Scroll the knob key to move to the Measurement field followed by clicking the knob key to enter the Measurement page. 3. Click the knob key to enter the Measurement Average field followed by scrolling the knob key to select High option.
  • Page 36 T3PS Series User Manual 5. Click the left arrow key to return to the previous page – Menu page.
  • Page 37 OPERATION Reset to Factory Default Settings The Recall Setup allows the T3PS series to be reset Background back to the factory default settings. See page 205 for the default factory settings. 1. Press the Menu key to enter the Steps Menu page.
  • Page 38 2. Scroll the knob key to move to the Utility field followed by clicking the knob key to enter the Utility page. 3. Click the knob key to enter the System Information page where T3PS model name, serial number, as well as firmware version are displayed. T3PS20051P...
  • Page 39 OPERATION Menu Tree Convention Use the menu trees as a handy reference for the power supply functions and properties. The menu system is arranged in a hierarchical tree. Each hierarchical level, which is coated in varied colors, can be navigated through the orders within the diagrams below.
  • Page 40 T3PS Series User Manual Menu Page - 1 Level 1 Level 2 Level 3 Level 4 Menu Output Remote Sense V/I Slew Rate R_V Slew Rate F_V Slew Rate Output On Dly Output Off Dly 0 sec 0 sec 2 Wire CVHS 0.0001 V/ms 0.0001 V/ms...
  • Page 41 OPERATION Menu Page - 2 Level 1 Level 2 Level 3 Level 4 Level 5 Menu Power On Config Return Power On Status Safe (default) Force Auto Constant PWR Control Power Return 110.2 W (default) (default by model) Auto Temperature Control Unit Output Safe...
  • Page 42 T3PS Series User Manual Menu Page - 3 Level 5 Level 1 Level 2 Level 3 Level 4 Menu Utility System Information Model Serial Version Return Name Number Date & Time Year Month Hour Minute Save Return Keyboard Buzzer Bleeder Return Protect Keyboard...
  • Page 43 OPERATION D-Log Level 1 Level 2 Level 3 Data Logger Type Sample Period Subfolder None 1.0 s 0000 (default) (default) (default) Save USB Send Remote PROT Level 1 Level 2 Level 3 Protect Voltage Limit OVP Level 0.000 V 22.00 V (default) (default) (default by model)
  • Page 44 T3PS Series User Manual TEST Level 1 Level 2 Level 3 Level 4 Level 5 Test Sequence Total Step Cycle Number Cycle Start Cycle End None None None (load file) (load file) (load file) (load file) Sequence Edit Step Point Output Time Voltage...
  • Page 45 OPERATION Basic Operation This section describes the basic operations required to operate the power supply. Setting OVP/OCP/UVL → from page 46 C.V. priority mode → from page 50 C.C. priority mode → from page 54 Display mode → page 58 Panel lock →...
  • Page 46 T3PS Series User Manual Setting OVP/OCP/UVL Levels The OVP level and OCP level has a selectable Background range that is based on the output voltage and output current, respectively. The OVP and OCP level is set to the highest level by default. The actual selectable OVP and OCP range depends on the T3PS model.
  • Page 47 OPERATION that is above about 95% of the OVP trip point or to a value that is lower than the UVL trip point. If you have selected to limit the current setting, you will no longer be able to set the output current to a value that is above about 95% of the OCP trip point.
  • Page 48 T3PS Series User Manual Setting Range Model T3PS20051P 0.25~5.5 1~22 0~20.952 T3PS36031P 0.15~3.3 1.8~39.6 0~37.714 T3PS100011P 0.05~1.1 5~110 0~104.76  The UVL setting range is from 0% ~ 105% of the Note rated output voltage. It depends on Voltage Limit On/Off to activate/deactivate UVL setting.
  • Page 49 OPERATION The OVP and OCP protection can be Clear OVP/OCP cleared after it has been tripped by protection clicking Shift key + ALM CLR key. The UVL protection On/Off depends on Voltage Limit. Note...
  • Page 50 T3PS Series User Manual Set to C.V. Priority Mode When setting the power supply to constant voltage mode, a current limit must also be set to determine the crossover point. When the current exceeds the crossover point, the mode switches to C.C. mode.
  • Page 51 OPERATION 3. Scroll the knob key to select between CVHS (CV High Speed Priority) and CVLS (CV Slew Rate Priority) options. CVHS = CV High Speed Priority Options CVLS = CV Slew Rate Priority 4. Press the knob key to save the selected option.
  • Page 52 R_V Slew Rate / F_V Slew Rate Setting Range Model Max. Value Min. Value T3PS20051P 0.0001V/ms 0.2V/ms T3PS36031P 0.0001V/ms 0.36V/ms T3PS100011P 0.001V/ms 0.5V/ms 7. Press the Menu key again to return to the main screen.
  • Page 53 OPERATION 9. Scroll the knob key to move to I (A) Set. Click knob key followed by scrolling knob key, along with the arrow keys to change among digits, to set the current limit (crossover point). Click knob key to confirm the set value.
  • Page 54 T3PS Series User Manual Set to C.C. Priority Mode When setting the power supply to constant current mode, a voltage limit must also be set to determine the crossover point. When the voltage exceeds the crossover point, the mode switches to C.V. mode.
  • Page 55 OPERATION 3. Scroll the knob key to select between CCHS (CC High Speed Priority) and CCLS (CC Slew Rate Priority) options. CCHS = CC High Speed Priority Options CCLS = CC Slew Rate Priority 4. Press the knob key to save the selected option.
  • Page 56 R_C Slew Rate / F_C Slew Rate Setting Range Model Max. Value Min. Value T3PS20051P 0.00001A/ms 0.05A/ms T3PS36031P 0.00001A/ms 0.03A/ms T3PS100011P 0.00001A/ms 0.005A/ms 7. Press the Menu key again to return to the main screen.
  • Page 57 OPERATION 9. Scroll the knob key to move to I (A) Set. Click knob key followed by scrolling knob key, along with the arrow keys to change among digits, to set the current. Click knob key to confirm the set value. 10.
  • Page 58 T3PS Series User Manual Display Modes The T3PS series power supplies allow you to view the output in 4 different modes: General (V/A), Power (V/A/W), Sequence (V/A/Sequence) or Temperature (V/A/T). 1. Press the Display key on main Steps screen to toggle among each mode. V and A V, A and W V, A and Sequence...
  • Page 59 OPERATION Panel Lock The panel lock feature prevents settings from being changed accidentally. When activated, all keys including the knob key (except the Shift key, Lock (Unlock/Local) key and Output key (if active)) will be disabled. If the instrument is remotely controlled via the USB/LAN interface, the panel lock is automatically enabled.
  • Page 60 T3PS Series User Manual Save Setup The T3PS has up to 10 memory storage (M1 ~ M10) to save the set current, set voltage, OVP, OCP and ULV settings. 1. Press the Menu key to enter the Steps Menu page. 2.
  • Page 61 OPERATION Recall Setup The T3PS has up to 10 memory storage (M1 ~ M10) to recall the set current, set voltage, OVP, OCP and ULV settings. Also, it has 3 dedicated keys (M1, M2, M3) on front panel to promptly recall the setups. 1.
  • Page 62 The remote sense terminals are connected to the load terminals to determine the voltage drop across the load cables. Remote sense can compensate up to 1 volt for T3PS20051P/T3PS36031P and 3 volts for T3PS100011P (compensation voltage). Load cables should be chosen with a voltage drop less than the compensation voltage.
  • Page 63 OPERATION Wire gauge: AWG 20 to AWG 14 Strip length: 6.5mm // 0.26 in. +S: +Sense terminal -S: -Sense terminal Be sure to remove the Sense joining cables so the units Note are not using local sensing. Single Load 1. Connect the +S terminal to the positive potential of the load.
  • Page 64 T3PS Series User Manual Temperature The T3PS series can measure DUT temperature while power output simultaneously. Prior to temperature measurement, utilize a temperature probe adaptor with thermocouple K type, to connect between DUT and TC input on the front panel of T3PS series. 1.
  • Page 65 OPERATION 4. Scroll knob key to move to the Output Safe field, which is used to monitor temperature of DUT with user-defined threshold. The power output stops once threshold is met. Click knob key to enter the field followed by scrolling knob key to turn On/Off the function, along with the arrow keys to change among digits.
  • Page 66 T3PS Series User Manual 6. Scroll knob key to move to the Adjust field, which acts like a user- defined offset value in accordance with environment factors by user preference. Click knob key to enter the field followed by scrolling knob key to set adjust value, along with the arrow keys to change among digits.
  • Page 67 OPERATION When it is under V, A and Temperature display Temperature mode, a thermometer icon appears in the lower- measurement status left corner and varied colors of the icon represent different statuses as follows. Blue Temperature Control On with no temperature adapter connected White...
  • Page 68 T3PS Series User Manual The alarm of short circuit occurs from temperature measurement...
  • Page 69 OPERATION Data Logger The T3PS series can save measured voltage, current and temperature data into either USB flash disk or send the data to program via remote control. 1. Press the D-Log key to enter the Steps Data Logger page. 2.
  • Page 70 T3PS Series User Manual 4. Scroll the knob key to move to the Type field. Click knob key followed by scrolling it to select a type for data log saving. Click knob key to confirm setting. Type No action will be executed. None Save data log into USB disk.
  • Page 71 OPERATION Dlog icon appears When the Save USB is selected, make sure that return Note to Data Logger page to select None for Type so that the latest data file can be saved properly. Owing to the fact that data log is being transmitted in real time via remote control, when the Send Remote is selected, there is no need to return to Data Logger page to select None for Type.
  • Page 72 Each test script can also be programmed in a scripting language. For more information on how to create sequence scripts via programs, please contact Teledyne LeCroy. Sequence Script File Format → from page 73 Sequence Script Settings → from page 73 Sequence Step Edit Settings →...
  • Page 73 OPERATION Sequence Script File Format The sequence script files are saved in the *.csv file Background format. When saving script file into internal memory, each file is saved as tXXX.csv where XXX is the file number from 001 to 010. When saving script file into the USB disk, each file is saved as S202_XXXX.csv where XXXX is the file serial number from 0001 to 9999.
  • Page 74 T3PS Series User Manual It indicates infinite cycles. 1 ~ 1000000000 It sets cycle(s) from 1 to 1000000000 times. It sets which step is the starting step of cycle. The Cycle Start available steps options vary per total steps. Cycle Start None No steps is for cycle start.
  • Page 75 OPERATION Save From Edit To select currently edited script as a source of script to be saved. S202_XXXX.csv If connected USB disk contains saved scripts, the files are available to select. Save To Internal tXXX.csv To save the selected source script into a select internal memory from no.
  • Page 76 T3PS Series User Manual Sequence Step Edit Settings This section mainly introduces the settings within Background the Sequence Edit page, which is used to edit several parameters for each step. To select which step to be edited. The available Step option(s) depends on the total step setting.
  • Page 77 OPERATION Exit It sets which step is the exit step of an entire sequence script. Generally, a sequence script can be executed again after finishing by pressing Output key. However, when Exit step is set, the sequence function won’t be executed again after finishing by Output key directly.
  • Page 78 T3PS Series User Manual It sets if power output will be activated for the Output select step. Output ON, OFF It sets time duration of execution for the select Time step. Time 0.05 ~ 999.99s It sets output voltage of CV mode for the select Voltage step.
  • Page 79 OPERATION V/I Slew Rate CVHS It utilizes the fastest slew rate of CV mode. Refer to page 50 for more details. CCHS It utilizes the fastest slew rate of CC mode. Refer to page 54 for more details. CVLS It utilizes the user-configured slew rate of CV mode.
  • Page 80 T3PS Series User Manual It sets the target step to jump to. For example, Jump To when step 5 is set for Jump To under the step 2 Edit page, it means that when sequence runs to step 2, it will directly jump to step 5 at the end of step 2.
  • Page 81 OPERATION Setting Sequence Script Configurations 1. Press Test key followed by clicking Steps on Sequence field via knob key to enter the Sequence page. 2. Scroll knob key to move to the Total Step field followed by clicking knob key to enter the field. Scroll knob key to adjust value along with arrow keys to change among digits followed by clicking...
  • Page 82 T3PS Series User Manual 3. Scroll knob key to move to the Cycle Number field followed by clicking knob key to enter the field. Scroll knob key to adjust value along with arrow keys to change among digits followed by clicking knob key to confirm cycle number.
  • Page 83 OPERATION 5. Scroll knob key to move to the Cycle End field followed by clicking knob key to enter the field. Scroll knob key to adjust value along with arrow keys to change among digits followed by clicking knob key to confirm cycle end. Cycle End 1 ~ 20000 6.
  • Page 84 T3PS Series User Manual 7. Scroll knob key to move to the Step field followed by clicking knob key to enter the field. Scroll knob key to select a step along with arrow keys to change among digits followed by clicking knob key to confirm the step to edit.
  • Page 85 OPERATION 9. Scroll knob key to move to the Output field followed by clicking knob key to enter the field. Scroll knob key to turn on/off output followed by clicking knob key to confirm output action. Output ON, OFF 10. Scroll knob key to move to the Time field followed by clicking knob key to enter the field.
  • Page 86 T3PS Series User Manual 11. Scroll knob key to move to the Voltage field followed by clicking knob key to enter the field. Scroll knob key to adjust value along with arrow keys to change among digits followed by clicking knob key to confirm voltage setting.
  • Page 87 OPERATION 13. Scroll knob key to move to the OVP Level field followed by clicking knob key to enter the field. Scroll knob key to adjust value along with arrow keys to change among digits followed by clicking knob key to confirm OVP setting. OVP Level 5% ~ 110% rated voltage 14.
  • Page 88 T3PS Series User Manual 15. Scroll knob key to move to the Bleeder field followed by clicking knob key to enter the field. Scroll knob key to turn on/off bleeder followed by clicking knob key to confirm bleeder action. Bleeder ON, OFF 16.
  • Page 89 OPERATION When CVLS is selected in previous step, scroll knob key to R_V Slew Rate and F_V Slew Rate fields respectively followed by clicking knob key to enter each field. Scroll the knob key to adjust value, along with the arrow keys to change among digits followed by clicking knob key to confirm set value, respectively.
  • Page 90 T3PS Series User Manual 17. Scroll knob key to move to the Buzzer field followed by clicking knob key to enter the field. Scroll knob key to turn on/off buzzer followed by clicking knob key to confirm buzzer setting. Buzzer ON, OFF 18.
  • Page 91 OPERATION 19. Scroll knob key to move to Jump To field followed by clicking knob key to enter the field. Scroll knob key to select a step number along with arrow keys to change among digits followed by clicking knob key to confirm step to jump to.
  • Page 92 T3PS Series User Manual 21. Scroll knob key to move to the Trigger Out field followed by clicking knob key to enter the field. Scroll knob key to turn on/off the function followed by clicking knob key to confirm the selection. Trigger Out ON, OFF 22.
  • Page 93 OPERATION Run Sequence Script After setting the relevant configurations from Overview Sequence and Sequence Edit pages, it is ready to launch a sequence script test. Also, it is available to load script from internal memory or the connected USB disk. See page 97 for how to load sequence script.
  • Page 94 T3PS Series User Manual 3. The Test key will be illuminated in yellow light on the front panel. 4. Press the Test key to switch to display mode in which press Display key repeatedly until the V, A and Sequence mode is shown. The SEQ icon is displayed on the top banner accordingly.
  • Page 95 OPERATION SEQ run in cycle mode SEQ run Total step Ongoing cycle number Cycle Cycle Ongoing number start now step SEQ pause in cycle mode SEQ pause Total step Ongoing cycle number Cycle Cycle Ongoing number start now step SEQ trigin in cycle mode SEQ trigin Total step...
  • Page 96 T3PS Series User Manual SEQ run in jump mode SEQ run Total step Ongoing now step SEQ pause in jump mode pause Total step Ongoing now step SEQ trigin in jump mode trigin Total step Ongoing now step When a script is running, pressing the Output key will Note abort the execution of the script immediately.
  • Page 97 OPERATION Load Sequence Script A sequence script can be loaded from either USB Overview disk or internal memory. When USB disk is connected with T3PS series, the script file in USB disk has higher priority over internal memory; that is, user can only load script file in USB disk when USB disk is plugged in.
  • Page 98 T3PS Series User Manual 3. Press Test key followed by clicking on Sequence field via knob key to enter the Sequence page. 4. Scroll knob key to move to the Load field followed by clicking knob key to enter the field. Scroll knob key to select an available script from USB disk.
  • Page 99 OPERATION 1. Press Test key followed by clicking Load script from on Sequence field via knob key to internal memory enter the Sequence page. 2. Scroll knob key to move to the Load field followed by clicking knob key to enter the field. Scroll knob key to select an available script from internal memory (Format: tXXX.csv).
  • Page 100 T3PS Series User Manual Save Sequence Script A sequence script can be saved from either an Overview edited one or USB disk to either internal memory or USB disk. Prior to saving script from USB disk, ensure the script file is placed in root directory. When saving script to USB disk, ensure USB disk is plugged into T3PS series.
  • Page 101 OPERATION 3. Click knob key to enter the Save From field followed by scrolling knob key to select Edit option. Click knob key again to confirm selection. 4. Scroll knob key to move to the Save To Internal field followed by clicking knob key to enter the field.
  • Page 102 T3PS Series User Manual 1. Insert a USB disk into the front panel Save script from USB-A port. Ensure the USB disk USB disk to internal memory contains a test script in root directory. 2. The icon of USB disk detection will be displayed on the upper status bar after a few seconds if the USB disk is recognized.
  • Page 103 OPERATION 4. Scroll knob key to move to the Save field followed by clicking knob key to enter the Sequence Save page. 5. Click knob key to enter the Save From field followed by scrolling knob key to select a script file from USB disk (Format: S202_XXXX.csv).
  • Page 104 T3PS Series User Manual 7. Click knob key and the prompt window shows as follows. Click knob key again to confirm saving S202_XXXX.csv to target tXXX.csv. 1. Insert a USB disk into the front panel Save script from USB-A port. edited one to USB disk 2.
  • Page 105 OPERATION 3. Press Test key followed by clicking on Sequence field via knob key to enter the Sequence page. 4. Scroll knob key to move to the Save field followed by clicking knob key to enter the Sequence Save page. 5.
  • Page 106 T3PS Series User Manual 6. Scroll knob key to move to the Save To USB field followed by clicking knob key to enter the field. Scroll knob key to select a target memory (Format: S202_XXXX.csv). 7. Click knob key and the prompt window shows as follows.
  • Page 107 MENU CONFIGURATION ENU CONFIGURATION Configuration Overview ......... 108 Output ..............108 Measurement ............112 EXT Control ............115 TRIG Control ............120 PWR On Config ............126 Constant PWR ............127 Temperature ............130 Save/Recall ............134 Interface ..............137 Utility ..............
  • Page 108 T3PS Series User Manual Configuration Overview The MENU configuration of T3PS series consists of Output setting, Measurement setting, EXT Control setting, TRIG Control setting, PWR On Config setting, Constant PWR setting, Temperature setting, Save/Recall setting, Interface setting, Utility setting, APP setting and Calibration setting.
  • Page 109 MENU CONFIGURATION 2. Click knob key to enter the Output page. Scroll knob key to move to Output On/Off Dly fields, respectively, followed by clicking knob key to enter each field. 3. Click arrow keys to move among each unit (h:m:s). Scroll knob key to change value followed by clicking the knob key to confirm the set value.
  • Page 110 T3PS Series User Manual 5. Scroll the knob key to select option followed by clicking the knob key to confirm the selection. 2 Wire, 4 Wire Remote Sense The C.V. and C.C. mode have two selectable slew V/I Slew Rate rates: High Speed Priority (CVHS, CCHS) and Slew Rate Priority (CVLS, CCLS).
  • Page 111 R_V Slew Rate / F_V Slew Rate Setting Range Model Max. Value Min. Value 0.0001V/ms 0.2V/ms T3PS20051P 0.0001V/ms 0.36V/ms T3PS36031P T3PS100011P 0.001V/ms 0.5V/ms...
  • Page 112 T3PS Series User Manual Measurement It sets the speed level of display sampling for the Measure measure average setting. More the average Average numbers (High), slower the display update. By contrast, the Off option indicates no sampling average and thus with the fastest speed in display update.
  • Page 113 MENU CONFIGURATION 3. Scroll knob key to change option followed by clicking the knob key to confirm the selection. High, Middle, Low, Off Measure Average It sets display range for voltage. Voltage Range 4. Scroll knob key to move to Voltage Range field followed by clicking knob key to enter the field.
  • Page 114 T3PS Series User Manual It sets display range for current. Current Range 6. Scroll knob key to move to Current Range field followed by clicking knob key to enter the field. 7. Scroll the knob key to select option followed by clicking the knob key to confirm the selection.
  • Page 115 MENU CONFIGURATION EXT Control By connecting with an external voltage or CV Control resistance control, it can output voltage in the Constant Voltage (CV) control. Both CV and CC controls can be enabled simultaneously. Before setting the EXT Control, ensure that: The output is off.
  • Page 116 T3PS Series User Manual 3. Scroll knob key to select option followed by clicking the knob key to confirm the selection. CV Control Option Internal control for the CV range. Front External voltage control of the External V voltage output is performed by the EXT I/O connector.
  • Page 117 MENU CONFIGURATION 4. Scroll knob key to move to CC Control field followed by clicking knob key to enter the field. 5. Scroll knob key to select option followed by clicking the knob key to confirm the selection. CC Control Option Internal control for the CC range.
  • Page 118 T3PS Series User Manual Via the pin 10 of EXT I/O connector, power Output Type output can be activated through either a high or low signal externally. Before setting the EXT Control, ensure that: The output is off. The load is not connected. 6.
  • Page 119 MENU CONFIGURATION Prior to external signal control, it is required to Output Enable turn On Output Enable so that power output can be activated via external high/low signal. Before setting the EXT Control, ensure that: The output is off. The load is not connected. 8.
  • Page 120 T3PS Series User Manual TRIG Control It determines what signal (High or Low) will Trigin Level trigger the trigger-in action. Before setting the TRIG Control, ensure that: The output is off. The load is not connected. 1. Press the Menu key followed by scrolling knob key to move to TRIG Control field.
  • Page 121 MENU CONFIGURATION 3. Scroll knob key to select option followed by clicking the knob key to confirm the selection. High, Low Trigin Level To determine the ensuing action when trigger-in Trigin Action signal is received. 4. Scroll knob key to move to Trigin Action field followed by clicking knob key to enter the field.
  • Page 122 Setting Range Model Trigin Voltage Trigin Current T3PS20051P 0.000 ~ 21.000V 0.0000 ~ 5.2500A T3PS36031P 0.000 ~ 37.800V 0.0000 ~ 3.1500A T3PS100011P 0.000 ~ 105.000V 0.0000 ~ 1.0500A...
  • Page 123 MENU CONFIGURATION 7. Scroll knob key to move to Trigin Trigin Memory Memory field. Click the knob key to enter the field. Scroll the knob key to selection option followed by clicking knob key to confirm the memory selection. M1 ~ M10 Trigin Memory It determines what trigger-out signal (High or Trigout Level...
  • Page 124 T3PS Series User Manual To determine what source of action to launch the Trigout Source trigger-out signal. 10. Scroll knob key to move to Trigout Source field followed by clicking knob key to enter the field. 11. Scroll the knob key to select option followed by clicking the knob key to confirm the selection.
  • Page 125 MENU CONFIGURATION 12. Scroll the knob key to move to the Trigout Width field followed by clicking knob key to enter the field. 13. Scroll knob key to adjust value, along with the arrow keys to change among digits. Click knob key again to confirm set value.
  • Page 126 T3PS Series User Manual PWR On Config Power On Status It determines power output On or Off when T3PS unit is starting up.  Safe: Output Off at startup.  Force: Output On at startup.  Auto: Output follows the previous status. 1.
  • Page 127 MENU CONFIGURATION Constant PWR To turn On or Off the Constant PWR function, Control which indicates the output power watt(s) will be fixed in the set value. 1. Press the Menu key followed by scrolling knob key to move to Constant PWR field.
  • Page 128 T3PS Series User Manual To determine the fixed output power value for Power Constant PWR function. 4. Scroll knob key to move to Power field followed by clicking knob key to enter the field. 5. Scroll the knob key to adjust value, along with the arrow keys to change among digits followed by clicking the knob key to confirm...
  • Page 129 MENU CONFIGURATION 6. Under the Power (V/A/W) display mode, scroll knob key to move among V Set, I Set and CP fields followed by clicking knob key enter each field, respectively. 7. Scroll knob key to CP field followed by click knob key to enter the field.
  • Page 130 T3PS Series User Manual Temperature To turn On or Off the Temperature function, Control which measures temperature of DUT while powering output simultaneously. This function requires the affiliated accessory. Refer to page 64 for more details. 1. Press the Menu key followed by scrolling knob key to move to Temperature field.
  • Page 131 MENU CONFIGURATION 3. Scroll knob key to turn On or Off the function by clicking the knob key to confirm the setting. On, Off Control To determine the Temperature unit for display. Unit 4. Scroll knob key to move to Unit field followed by clicking knob key to enter the field.
  • Page 132 T3PS Series User Manual 6. Scroll knob key to move to the Output Safe field followed by clicking knob key to enter the field. 7. Scroll knob key to turn On/Off the function. Click knob key again to confirm. On, Off Options To set a user-defined threshold for the Monitor...
  • Page 133 MENU CONFIGURATION 9. Scroll knob key to set monitor value, along with the arrow keys to change among digits. Click knob key again to confirm. °C -200.0 ~ 1372.0 Options °F -328.0 ~ 2501.6 To set an offset value for temperature Adjust measurement in accordance with environment factors by user preference.
  • Page 134 T3PS Series User Manual Save/Recall Up to 10 memory setups (M1~M10) can be saved Save Mem Set to the internal storage. 1. Press the Menu key followed by scrolling knob key to move to Save/Recall field. 2. Click knob key to enter the Save/Recall page.
  • Page 135 MENU CONFIGURATION 3. Scroll knob key to select an option followed by clicking the knob key to confirm the selection. Scroll knob key to move to OK followed by clicking knob key again to confirm save. M1 ~ M10 Save Mem Set Up to 10 memory setups (M1~M10) can be Recall Mem Set recalled from the internal storage...
  • Page 136 T3PS Series User Manual 5. Scroll knob key to select an option followed by clicking the knob key to confirm the selection. Scroll knob key to move to OK followed by clicking knob key again to confirm recall. M1~M10 From the internal Recall Mem memory M1 ~ M10.
  • Page 137 MENU CONFIGURATION Interface The T3PS series use the IN & OUT ports for UART UART communication coupled with RS232 or RS485 adapters. 1. Press the Menu key followed by scrolling knob key to move to Interface field. 2. Click knob key to enter the Interface page.
  • Page 138 T3PS Series User Manual UART Baud Rate Sets the UART baud rate. 2400, 4800, 9600, 19200, 38400, 57600, 115200 Sets the number of data bits. UART Data Bits 7 bits, 8 bits Sets the number of stop bits. UART Stop Bit 1 bit, 2 bits Sets the parity.
  • Page 139 MENU CONFIGURATION 5. Scroll knob key to move to LAN field followed by click knob key to enter the LAN page. 6. There are several relevant settings for LAN interface as following details. Use knob key to scroll and click to configure each setting. Displays the MAC address in 6 parts.
  • Page 140 T3PS Series User Manual Sets the subnet mask. The subnet mask is split into Subnet Mask four parts. 0~255, 0~255, 0~255, 0~255 Sets the gateway address. The gateway address is Gateway IP split into 4 parts. 0~255, 0~255, 0~255, 0~255 Sets the DNS address.
  • Page 141 MENU CONFIGURATION The Socket info is as follows The Socket port is fixed in 2268. Select Port 2268 9. Scroll knob key to move to Return field followed by clicking knob key to return back to the previous page. Also, it is available to return by clicking the left arrow key.
  • Page 142 T3PS Series User Manual 11. Scroll knob key to move to Return field followed by clicking knob key to return back to the previous page. Also, it is available to return by clicking the left arrow key. Sets T3PS series as a web server. Enter the IP Web Server address of T3PS series in a web browser to establish connection.
  • Page 143 2. Click knob key to enter the Utility page. Scroll knob key to move to System Information field followed by clicking knob key to enter the System Information page. T3PS20051P 3. There are several information as the following details, which are displayed only and not configurable.
  • Page 144 T3PS Series User Manual The specific model name of T3PS series. Model Name The serial number of T3PS series. Serial Number The firmware version of T3PS series. Version 4. Scroll knob key to move to Return field followed by clicking knob key to return back to the previous page.
  • Page 145 MENU CONFIGURATION To configure year field. Year To configure month field. Month To configure day field. To configure hour field. Hour To configure minute field. Minute To save the configured system time. Save 7. Scroll knob key to move to Return field followed by clicking knob key to return back to the previous page.
  • Page 146 T3PS Series User Manual 9. There is only a Lock Mode field for Keyboard setting as the following detail. Use knob key to scroll and click to configure Lock Mode setting. Output On/Off Power output can be turned Lock Mode On/Off when lock mode is activated.
  • Page 147 MENU CONFIGURATION 12. There are two relevant settings for Buzzer setting as following details. Use knob key to scroll and click to configure each setting. To turn On or Off the buzzer sound for protection Protect alarm. On, Off To turn On or Off the buzzer sound for keyboard Keyboard entry.
  • Page 148 T3PS Series User Manual 14. Scroll knob key to move to Bleeder field followed by click knob key to enter the Bleeder page. 15. There is only a Bleeder field for Bleeder setting as following detail. Use knob key to scroll and click to configure the setting.
  • Page 149 MENU CONFIGURATION 17. Scroll knob key to move to Communication Monitor field followed by click knob key to enter the Communication Monitor page. 18. There are two settings for Communication Monitor page as following details. Use knob key to scroll and click to configure the setting.
  • Page 150 T3PS Series User Manual The AH/WH Meter and Multi-Drop APP (Application) is an extended function supported by the unit (T3PS20051P/ T3PS36031P/ T3PS100011P). Both APPs are installed in the unit before delivery. AH/WH meter 1. Press the Menu key followed by scrolling knob Steps of entering key to move to APP field.
  • Page 151 MENU CONFIGURATION 3. Clicking knob key to enter the AH/WH Meter field. 4. Click knob key and scroll knob key to select Steps of selecting Mode AHour. 5. Scroll knob key to move to AHour field Steps of Setting AHour followed by clicking knob key.
  • Page 152 T3PS Series User Manual Steps of viewing 6. Press the Display key to switch modes on the AHour/Whour main display. values Multi-Drop Please refer to page 191 for Multiple Unit Connection. Note 1. Press the Menu key followed by scrolling knob Operation Steps key to move to Interface field.
  • Page 153 MENU CONFIGURATION 2. Click knob key to enter the Interface page followed by scroll knob key to move to UART field. 3. Click knob key to enter the UART page. Scroll knob key to move to Mode field followed by clicking and scrolling knob key to select RS485.
  • Page 154 T3PS Series User Manual 5. Press the Menu key followed by scrolling knob Steps of setting key to move to APP field. the Multi-Drop setting parameter to Slave for all slave units. 6. Click knob key to enter the APP page followed by scroll knob key to move to Multi-Drop field.
  • Page 155 MENU CONFIGURATION 9. Press the Menu key followed by scrolling knob Steps of checking key to move to APP field. the slaves’ addresses by Click knob key to enter APP page followed by using the Disp- scrolling knob key to move to Multi-Drop field. Info parameter on the master unit Click knob key to enter Multi-Drop page...
  • Page 156 T3PS Series User Manual 12. Press the Menu key followed by scrolling knob Steps of key to move to APP field. displaying the status of each Click knob key to enter APP page followed by slave unit by using scrolling knob key to move to Multi-Drop field. the State menu Click knob key to enter Multi-Drop page followed by scrolling knob key to move to State.
  • Page 157 MENU CONFIGURATION Calibration The Calibration section is used to access the System Update calibration function, which requires a password to enter the menu. Please see your distributor or dealer for details when necessary.
  • Page 158 T3PS Series User Manual NALOG CONTROL The Analog Control chapter describes how to control the voltage or current output using an external voltage or resistance, monitor the voltage or current output as well as remotely turning off the output or shutting down the power supply.
  • Page 159 ANALOG CONTROL Analog Remote Control Overview The T3PS power supply series have a number of analog control options. The Analog Control connectors are used to control output voltage and current using external voltage or resistance. The power supply output can also be controlled using external switches. Analog control connector overview →...
  • Page 160 T3PS Series User Manual Analog Control Connector Overview The EXT I/O Connector is a 20pin connector that Overview can be used with the plug for wiring connection. The connector is used for all analog remote control. The pins used determine what remote control mode is used.
  • Page 161 ANALOG CONTROL 6 This is the common line for external signal pins A COM 1, 2, 3, and 5. 7 Not connected. N.C. 8 Not connected. N.C. 9 Output on/off line. OUT ON/OFF On when set to a low TTL signal, Off when set CONT to a high TTL signal.
  • Page 162 T3PS Series User Manual 19 On when a protection function (OVP, OCP, Alarm Status OTP, AC ALARM) has been activated or when an output shutdown signal is being applied (open-collector photocoupler output).1 20 This is the common line for the status signal Status COM pins 2 to 6.
  • Page 163 ANALOG CONTROL When connecting the external voltage source to Connection the analog connector, use shielded or twisted paired wiring. EXT-V T3PS ＋ Analog connector － 2 core shielded wire or twisted Output pair Terminal Pin3 → EXT-V (+) Pin4 → EXT-V (-) Wire shield →...
  • Page 164 T3PS Series User Manual 2. Set the CV Control as External V. Page 108 Also, set Output Type per application and turn On Output Enable. 3. Press the Output key. The voltage can now be controlled with the External voltage. The input impedance for external voltage control is a Note high impedance OPA input.
  • Page 165 ANALOG CONTROL External Voltage Control of Current Output External voltage control of the current output is Background accomplished using the analog control connector on the rear panel. A voltage of 0~10V is used to control the full scale current of the instrument, where: Output current = full scale current ×...
  • Page 166 T3PS Series User Manual If the wire shield needs to be grounded at the Connection- alt. voltage source (EXT-V), then the shield cannot shielding also be grounded at the negative (-) terminal output of the T3PS power supply. This would short the output.
  • Page 167 ANALOG CONTROL The input impedance for external voltage control is a Note high impedance OPA input. A COM Use a stable voltage supply for the external voltage control. CV and CC Slew Rate Priority (CVLS, CCLS) are Note disabled when using external voltage control. See the CVLS and CCLS Settings on page 50 &...
  • Page 168 T3PS Series User Manual External Resistance Control of Voltage Output External resistance control of the voltage output is Background accomplished using the analog connector on the rear panel. A resistance of 0Ω~10kΩ is used to control the full scale voltage of the instrument. The output voltage (0 to full scale) can be controlled with the external resistance from 0Ω~10kΩ.
  • Page 169 ANALOG CONTROL Ensure the resistor(s) and cables used exceed the Note isolation voltage of the power supply. For example: insulation tubes with a withstand voltage higher than the power supply can be used. When choosing an external resistor ensure the resistor can withstand a high degree of heat.
  • Page 170 T3PS Series User Manual Connect the external resistance according to the Steps connection diagrams above. Set the CC Control as External R. Also, Page 108 set Output Type per application and turn On Output Enable. Press the Output key. The current can now be controlled with the External resistance.
  • Page 171 ANALOG CONTROL External Control of Output The output can be turned on or off externally Background using a switch. The analog control connector can be set to turn the output on from a high or low signal. The voltage across pins 9 and 12 are internally pulled to +5V with 2kΩ...
  • Page 172 T3PS Series User Manual When using a switch over long distances, please use a Note switch relay to extend the line from the coil side of the relay. T3PS Switch Relay 2KΩ Line Analog connector extension B COM If a single switch control is to be used for multiple units, please isolate each instrument.
  • Page 173 ANALOG CONTROL External Trigger In / Out Pin 10 is used for the external trigger input and Background pin 11 is used as the trigger output. Pin 12 is the B common for both pins. The trigger input can be configured to perform an action such as toggling the output on/off, load a memory setting or apply a voltage/current setting when a trigger is received.
  • Page 174 T3PS Series User Manual Schematic T3PS B COM Trigger 100kΩ input signal Analog connector B COM...
  • Page 175 ANALOG CONTROL Remote Monitoring The T3PS power supplies have remote monitoring support for current and voltage output. They also support monitoring of operation and alarm status. External monitoring of output voltage and current → from page 175 External monitoring of operation mode and alarm status → from page 177 External Voltage and Current Monitoring The analog connector is used to monitor the Background...
  • Page 176 T3PS Series User Manual IMON T3PS Connection Analog connector I MON → Output Terminal Pin4 → Neg (-) Pin1 → Pos (+) Maximum output impedance is 10KΩ. Ensure the Note sensing circuit has an input impedance greater than 1MΩ. The monitor outputs are strictly DC and should not be used to monitor analog components such as transient voltage response or ripple etc.
  • Page 177 ANALOG CONTROL External Operation and Status Monitoring The analog connector can also be used to monitor Background the status operation and alarm status of the instrument. The pins are isolated from the power supply internal circuitry by photo couplers. Status Com (Pin 20) is a photo coupler emitter output, whilst pins 15~19 are photo coupler collector outputs.
  • Page 178 T3PS Series User Manual This is the common line for Status COM the status signal pins 15 to 19. Schematic Pins 15, 16, 17, 18, 19 20 (Status COM1) Timing diagrams Below are 4 example timing diagrams covering a number of scenarios. Note that pins 15~19 are all active low.
  • Page 179 ANALOG CONTROL The diagram below shows the timing diagram CC MODE: when the output is turned on when the T3PS is set Output turned on to CC mode. CV status CC status Output status The diagram below shows the output status lines CC MODE: when the output is turned off in CC mode.
  • Page 180 OMMUNICATION INTERFACE This chapter describes basic configuration of IEEE488.2 based remote control. For a command list, refer to the programming manual, downloadable from Teledyne LeCroy website, http://teledynelecroy.com Interface Configuration .......... 181 USB Remote Interface ..............181 Configuration ....................181 USB CDC Function Check ............... 182 UART Remote Interface .............
  • Page 181 COMMUNICATION INTERFACE Interface Configuration USB Remote Interface Configuration Type A, host PC side connector Configuration Rear panel Type B, slave T3PS side connector 1.1 (full speed) Speed CDC (communications device USB Class class) 1. Connect the USB cable to the rear Steps panel USB B port.
  • Page 182 T3PS Series User Manual USB CDC Function Check To test the USB CDC functionality, National Background Instruments Measurement and Automation Explorer can be used. This program is available on the NI website, www.ni.com., via a search for the VISA Run-time Engine page, or “downloads” at the following URL, http://www.ni.com/visa/ Operating System: Windows XP, 7, 8,10 Requirements...
  • Page 183 COMMUNICATION INTERFACE 5. Select the CDC-WXXXXXX and click the right button of mouse to “Update Driver Software”.
  • Page 184 7. Indicate the driver folder to the system and then press “Next”. And this folder should consist of below 2 files. The USB driver of T3PS can be downloaded from Note download area of T3PS on the Teledyne LeCroy web site @ http://teledynelecroy.com...
  • Page 185 COMMUNICATION INTERFACE 8. Windows 7 will install the driver for a while. 9. If everything works fine, you may get below message. And the COM53 is the USB CDC ACM port of T3PS.
  • Page 186 T3PS Series User Manual 10. Double check the “Device Manager”. The port should like below. Steps 1~10 are for the USB CDC Driver installation. 11. Start the NI Measurement and Automation Explorer (MAX) program. Using Windows, press: Start>All Programs>National Instruments>Measurement & Automation...
  • Page 187 COMMUNICATION INTERFACE 12. From the Configuration panel access; My System>Devices and Interfaces>Network Devices 13. Click Open VISA Test Panel. 14. Click the Configuration icon, 15. Click on I/O Settings. 16. Make sure the Enable Termination Character check box is checked, and the terminal character is \n (Value: xA).
  • Page 188 T3PS Series User Manual Teledyne,T3PS100011P,TW123456,V0.A4 Teledyne,T3PS100011P,TW123456,V0.A4 UART Remote Interface Configure UART The T3PS uses the IN & OUT ports for UART Overview communication coupled with RS232 or RS485 adapters. The pin outs for the adapters are shown below. RS232 cable with...
  • Page 189 COMMUNICATION INTERFACE RS485 cable with DB-9 Connector Remote IN Port Remarks DB9 & RJ-45 Pin No. Name Pin No. Name shielded Housing Shield Housing Shield connectors TXD - RXD - Twisted pair TXD + RXD + RXD - TXD - Twisted pair RXD +...
  • Page 190 Serial number, and Firmware version in the following format. Teledyne,T3PS100011P,TW123456,V0.A4 Manufacturer: Teledyne LeCroy Model number : T3PS100011P Serial number : TW1234567 Firmware version : V0.A4 For further details, please see the programming Note manual, available on the Teledyne LeCroy web site @ http://teledynelecroy.com...
  • Page 191 COMMUNICATION INTERFACE Multiple Unit Connection The T3PS power supplies can have up to 31 units daisy-chained together using the 8 pin connectors (IN OUT ports) on the rear panel. The first unit in the chain is remotely connected to a PC using (RS485 cable with DB9 connector).
  • Page 192 To check the COM port No, see the Device Manager in the PC. For this function check, we will assume that the one unit is assigned to address 0, while other is assigned address 5. ADR 0 *IDN? Teledyne,T3PS20051P,TW123456,V0.A2 VOLT 5 VOLT? +5.000...
  • Page 193 The power supply acknowledges received commands by returning an “OK” message. If an error is detected the power supply will return an error message. For further details, please see the programming manual, available on the Teledyne LeCroy web site @ http://teledynelecroy.com...
  • Page 194 T3PS Series User Manual Configure Ethernet Connection The Ethernet interface can be configured for a number of different applications. Ethernet can be configured for basic remote control or monitoring using a web server or it can be configured as a socket server.
  • Page 195 COMMUNICATION INTERFACE 2. Turn On DHCP and Web Server Page 138 & settings. 3. The indicator will be shown when a remote connection has been established. Remote Control indicator It may be necessary to cycle the power or refresh the Note web browser to connect to a network.
  • Page 196 T3PS Series User Manual The web browser interface allows you to access the following: Network configuration settings  Measurement setting  Normal Function setting  External Control setting  Temperature Control setting  Analog Control  Figure of Dimension  Sequence setting ...
  • Page 197 COMMUNICATION INTERFACE Sockets Server Configuration This configuration example will configure the Configuration T3PS socket server. The following configuration settings will manually assign the T3PS an IP address and enable the socket server. The socket server port number is fixed at 2268. 1.
  • Page 198 T3PS Series User Manual Socket Server Function Check To test the socket server functionality, National Background Instruments Measurement and Automation Explorer can be used. This program is available on the NI website, www.ni.com., via a search for the VISA Run-time Engine page, or “downloads” at the following URL, http://www.ni.com/visa/ Operating System: Windows XP, 7, 8, 10 Requirements...
  • Page 199 COMMUNICATION INTERFACE 4. Select Manual Entry of Raw Socket from the popup window. 5. Enter the IP address and the port number of the T3PS. The port number is fixed at 2268. 6. Click the Validate button. 7. A popup will appear if a connection is successfully established.
  • Page 200 T3PS Series User Manual 9. Next configure the Alias (name) of the T3PS connection. In this example the Alias is: T3PS_DC1 10. Click finish. T3PS_DC1 11. The IP address of the T3PS will now appear under Network Devices in the configuration panel.
  • Page 201 18. Enter *IDN? in the Select or Enter Command dialog box if it is not already. 19. Click the Query button. 20. The *IDN? query will return the Manufacturer, model name, serial number and firmware version in the dialog box. Teledyne,T3PS100011P,TW123456,V0.A4...
  • Page 202 T3PS Series User Manual Teledyne,T3PS100011P,TW123456,V0.A4...
  • Page 203 How often should the power supply be calibrated? The T3PS should be calibrated by an authorized service center at least every 2 years. For details regarding calibration, see your local dealer or Teledyne LeCroy website, http://teledynelecroy.com The OVP voltage is triggered earlier than expected.
  • Page 204 T3PS Series User Manual The accuracy does not match the specification. Make sure the device is powered On for at least 30 minutes, within 23℃±5℃. This is necessary to stabilize the unit to match the specification. For more information, contact your local dealer at website http://teledynelecroy.com/support/contact...
  • Page 205 APPENDIX PPENDIX T3PS Factory Default Settings The following default settings are the factory configuration settings for the power supply. For details on how to return to factory default settings, see page 61. Initial Default Setting Output LOCK Disabled Voltage Set 0.000 V Current Set 0.0000 A...
  • Page 206 T3PS Series User Manual EXT (External) Control Default Setting CV Control Front Panel CC Control Front Panel Output Type High Output Enable TRIG(Trigger Control) Default Setting Trigin Level High Trigin Action None Trigin Voltage 0.000 V Trigin Current 0.0000 A Trigin Memory Trigout Level Trigout Source...
  • Page 207 APPENDIX Utility - Bleeder Default Setting Bleeder APP - AH/WH Meter (License Key) Default Setting Mode Disable AHour 999999999.999 Ah WHour 999999999.999 Wh Protect Default Setting Voltage Limit 0.000 V OVP Level 1.1 X Vrate Current Limit OCP Level 1.1 X Irate) OCP Delay 0.050 s...
  • Page 208 T3PS Series User Manual T3PS Specifications The specifications apply when the T3PS is powered on for at least 30 minutes. Input ratings (AC rms) Model T3PS20051P T3PS36031P T3PS100011P Nominal input 100Vac / 120Vac / 220Vac / 240Vac, 50Hz / 60Hz, single voltage...
  • Page 209 APPENDIX Rated load ≦ 50ms ≦ 100ms Rise time No load ≦ 50ms ≦ 100ms Rated load ≦ 20ms ≦ 50ms Fall time No load ≦ 150ms ≦ 250ms Maximum remote sensing compensation voltage (single line) Temperature 100 ppm/ ˚C Coefficient (TYP.) Setting range (105%) 0A to 5.25A 0A to 3.15A...
  • Page 210 T3PS Series User Manual Measured value display Model T3PS20051P T3PS36031P T3PS100011P Voltage Hight 20.000V 36.000V 100.00V Range 2.0000V 3.6000V 10.000V Hight 5.0000A 3.0000A 1.0000A 500.00mA 300.00mA 100.00mA Current Range 50.000mA 30.000mA 10.000mA L-Low 5.0000mA 3.0000mA 1.0000mA Voltage(H) 10mV Voltage(L) 0.1mV Current(H) 0.1mA...
  • Page 211 APPENDIX Protection Function Model T3PS20051P T3PS36031P T3PS100011P Turns the output off, displays OVP and lights Operation ALARM Over Voltage 1.0V to 22.0V 1.8V to 39.6V 5.0V to 110.0V Protection Setting range (5% to 110% of the rated output voltage) (OVP) Setting ±(1% of rating)
  • Page 212 T3PS Series User Manual Possible logic selections: Turn the output on using a LOW (0 V to 0.5 V) or short-circuit, turn the output off using a OUTPUT Output on/off HIGH (4.5 V to 5 V) or open-circuit. ON/OFF CONT control Turn the output on using a HIGH (4.5 V to 5 V) or open-circuit, turn the output off using a...
  • Page 213 APPENDIX General Specifications Model All models Weight Approx. 5.5kg Dimensions (mm) 107(W)×124(H)×313(D) (not including protrusions) Operating environment Indoor use, Overvoltage Category II Operating temperature 0˚C to 40˚C Storage temperature -20˚C to 70˚C Operating humidity 20% to 80% RH; No condensation Storage humidity 20% to 85% RH;...
  • Page 214 T3PS Series User Manual Dimensions...
