  • Page 1      www.valuetronics.com...
  • Page 2 Teledyne LeCroy company. The information in this manual was correct at the time of printing. However, Teledyne LeCroy continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Table of Contents SAFETY INSTRUCTION ............ 5 OVERVIEW ..............9 T3PS36006 Main Features ........10 Principle of Operation ........... 11 Front Panel Overview ..........15 Rear Panel Overview ..........18 CV/CC Crossover Characteristics ......19 SETUP ................20 Installation Location ..........
  • Page 4 T3PS36006 User Manual FAQ ................61 APPENDIX ..............62 Fuse Replacement ..........62 Specification ............63 INDEX ................65 www.valuetronics.com...

  • Page 5: Safety Instruction

    T3PS36006. Safety Symbols These safety symbols may appear in this manual or on T3PS36006. Warning: Identifies conditions or practices that WARNING could result in injury or loss of life.

  • Page 6: Safety Guidelines

    Do not discharge static electricity to T3PS36006.  Do not block or obstruct the cooling fan vent opening.  Leave a space around T3PS36006, at least 3cm to the left and right.  Do not perform measurement at circuits directly connected to Mains (Note below).
  • Page 7 Temperature: 0°C to 40°C (Pollution Degree) EN 61010-1:2010 specifies the pollution degrees and their requirements as follows. T3PS36006 falls under degree 2. Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.
  • Page 8 T3PS36006 User Manual Power cord for the United Kingdom When using T3PS36006 in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED...

  • Page 9: Overview

    OVERVIEW VERVIEW This chapter describes T3PS36006, including its main features and front/ rear panel introduction. After going through the overview, follow the Setup chapter (page 20) to properly power up and set operation environment. For initial inspection, refer to the Performance verification chapter (page 43).

  • Page 10: T3Ps36006 Main Features

    T3PS36006 User Manual T3PS36006 Main Features Low noise (≤ 50dB, Cooling fan controlled by  Performance Heatsink temperature)  High efficiency power conversion, minimum 70% with full load Fast Output On/Off response (≤100ms)   Low temperature coefficient (≤100ppm/°C+3mV, ≤150ppm/°C+3mA) ...

  • Page 11: Principle Of Operation

    OVERVIEW Principle of Operation Block diagram Power supply converts the AC mains into DC Power source for internal units. Channel 1/2/3 control and produce the actual DC output. Display shows output and OVP level, receiving feedback from each channel. Internal components are placed on four printed circuit boards, A ~ D.
  • Page 12 T3PS36006 User Manual EMI Filter Other than deleting conduction EMI (electro- magnetic interference), the EMI unit contains protective circuits such as Inrush current limit resistor and Surge absorber. Internal units are protected under power-up sequence, normal operation, and AC mains fluctuation.
  • Page 13 OVERVIEW CH1/2/3 The Controller for Channel 1, 2, and 3 takes care of Controller the interface between T3PS36006 and users. Several sub-units comprise the Controller, including:  Feedback control unit  OVP setting unit  Fan control unit Detailed description of each unit follows.
  • Page 14 T3PS36006 User Manual LED Display The LED display shows the Channel 1/2/3 output Voltage/Current level. The A/D converter changes the analog signal coming from each channel into digital format to be displayed. www.valuetronics.com...

  • Page 15: Front Panel Overview

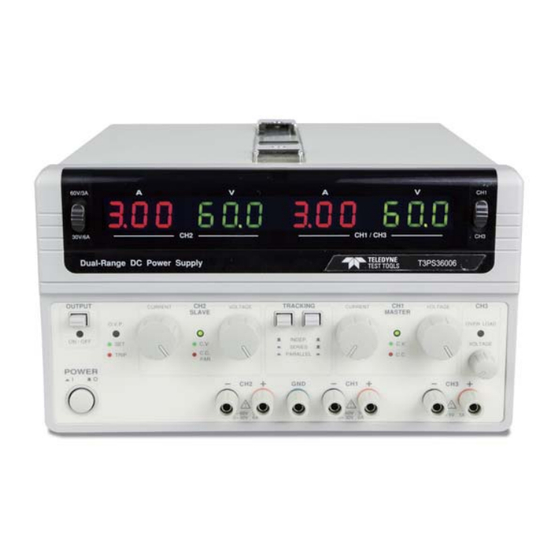

    Front Panel Overview Tracking Mode Output Range CH2 Meter CH1/3 Meter CH1/CH3 Switches Switch Meter Switch 60V/3A CH1 / CH3 30V/6A Dual-Range DC Power Supply T3PS36006 Output CH3 Overload Indicator CURRENT VOLTAGE CURRENT OUTPUT TRACKING VOLTAGE SLAVE MASTER O.V.P. OVER LOAD INDEP.
  • Page 16 T3PS36006 User Manual CH Tracking mode Activates and selects the tracking TRACKING switches mode. For tracking mode details, see page 33 (Series) and page 39 INDEP. (Parallel). SERIES PARALLEL Independent Tracking Series Tracking Parallel CH1/3 meter + Displays Channel 1 or Channel 3 current (A) and switch voltage (V).
  • Page 17 OVERVIEW Channel 1 Turns green when operating in CV/CC indicator Constant Voltage (CV) mode, red C.V. in Constant Current (CC) mode. C.C. For CV/CC characteristics, see page 19. Channel 2 Independent mode: CV/CC/PAR Turns green in Constant Voltage C.V. indicator (CV) mode, red in Constant C.C.

  • Page 18: Rear Panel Overview

    T3PS36006 User Manual Rear Panel Overview Power Cord / Remote Control OVP Setting Cooling Fan Fuse Socket Terminal Point NORAL O.V.P. SET WARNING C1 C C3 DISCONNECT POER CORD EFORE REPLACING FUSE REPLACE FUSE AS SPECIFIED FUSE RATING 115V T10A 50V...

  • Page 19: Cv/Cc Crossover Characteristics

    Voltage level becomes lower than the setting, in order to suppress the output power level from overload. When the current level becomes lower than the setting, T3PS36006 goes back to the Constant Voltage mode. Diagram Vout Vmax...

  • Page 20: Setup

    T3PS36006 User Manual ETUP This chapter describes how to properly power up and configure T3PS36006 before the operation. For checking the functionality, refer to the Performance verification chapter, page 43. Installation Location ..........21 Power Up .............. 22 Over Voltage Protection Setup ......23 Load Cable Connection .........

  • Page 21: Installation Location

    SETUP Installation Location Ventillation space Leave at least 3cm around T3PS36006, to the left and right. > 3cm > 3cm Cooling fan The cooling fan is located on the rear panel. opening Allocate extra space on the back of T3PS36006 so that the cooling fan opening would not become blocked.

  • Page 22: Power Up

    T3PS36006 User Manual Power Up Power On Press the Power switch to turn On the power. The CH1/CH2 indicators and meters turn On. CURRENT CURRENT VOLTAGE VOLTAGE MASTER SLAVE C.V. C.V. C.C. C.C. PAR. CURRENT CURRENT VOLTAGE VOLTAGE MASTER SLAVE C.V.

  • Page 23: Over Voltage Protection Setup

    SETUP Over Voltage Protection Setup Background Over Voltage Protection (OVP) protects T3PS36006 and DUT from excessive output Voltage. The user sets the maximum output voltage limit before operation. When the output voltage exceeds this limit, the indicator shows the over voltage status and the output is shut off immediately.
  • Page 24 T3PS36006 User Manual * When setting the OVP for channel 3, select CH3 meter using the CH1/CH3 meter switch. 5. When finished, slide the rear panel switch to the “Normal” O.V.P. Set NORAL position. The OVP indicator on C1 C...

  • Page 25: Load Cable Connection

    SETUP Load Cable Connection Standard 1. Turn the terminal accessory counterclockwise and (GTL-104) loosen the screw. 2. Insert the cable terminal. 3. Turn the terminal clockwise and tighten the screw. Banana plug Insert the plug into the socket. Wire type When using load cables other than the attached, make sure they have enough current capacity for minimizing cable loss and load line impedance.

  • Page 26: Output On/Off

    T3PS36006 User Manual Output On/Off Panel operation Pressing the Output key once OUTPUT OUTPUT Turns On the output, all channels 1/2/3 at once. ON / OFF ON / OFF Pressing again turns Off the OUTPUT OUTPUT output. ON / OFF...
  • Page 27 SETUP Red CV/CC indicator when OUTPUT CV/CC red output Off indicates internal C.V. without output error. Contact the service center. C.C. ON / OFF www.valuetronics.com...
  • Page 28 T3PS36006 User Manual PERATION CH1/CH2 Independent Mode ........ 29 CH3 Independent Mode ........31 CH1/CH2 Tracking Series Mode ......33 Tracking series without common terminal ......33 Tracking series with common terminal ........36 CH1/CH2 Tracking Parallel Mode ......39...

  • Page 29: Operation

    CH1/CH2 Independent Mode Background / Channel1 and Channel 2 outputs work Connection independent of each other and are separately controlled. T3PS36006 LOAD LOAD Output rating 0 ~ 30V/0~6A or 0~60V/0~3A for each channel Setting step 1. Select the output range, 60V/3A 60V/3A or 30V/6A.
  • Page 30 T3PS36006 User Manual O.V.P. 3. Set the OVP if necessary. For details, see page 23. TRIP 4. Connect the load to the front panel terminals, channel 1 +/−, channel 2 +/−. CURRENT VOLTAGE 5. Set the output Voltage and MASTER Current using the control C.V.

  • Page 31: Ch3 Independent Mode

    Background / Channel 3 rating is 0.1 ~ 5V, maximum 3A. It Connection works independently from Channel 1 and 2, regardless of their modes. T3PS36006 LOAD Output rating 0.1 ~ 5V, 3A maximum No Tracking Channel 3 does not have Tracking Series/Parallel Series/Parallel mode.
  • Page 32 T3PS36006 User Manual 3. Connect the load to the front panel channel 3 +/− terminal. VOLTAGE 4. Set the output Voltage using the Channel 3 Voltage control knob. OUTPUT OUTPUT 5. Press the Output key. The Output indicator turns green.

  • Page 33: Ch1/Ch2 Tracking Series Mode

    CH1/CH2 Tracking Series Mode Background Tracking series operation doubles the Voltage capacity of T3PS36006 by internally connecting Channel 1 (Master) and Channel 2 (Slave) in serial and combining the output to a single channel. Channel 1 (Master) controls the combined Voltage output level.
  • Page 34 T3PS36006 User Manual 2. Set the tracking switch position to Series, O.V.P. 3. Set the OVP if necessary. In tracking series mode, set the Channel 2 (Slave) OVP setting to the maximum level, so that the TRIP OVP trips if the Channel 1 (Master) setting is violated.
  • Page 35 OPERATION 7. Refer to the Channel 1 (Master) meter and indicator for the output setting level and CV/CC status. MASTER CH1 / CH3 C.V. C.C. Current level Channel 1 meter reading shows the output Current. (Channel 2 Current control must be in the Maximum position).

  • Page 36: Tracking Series With Common Terminal

    T3PS36006 User Manual Tracking series with common terminal Connection T3PS36006 LOAD Output rating 0~60V/0~3A or 0~30V/0~6A for CH1 ~ COM 0~–60V/0~3A or 0~–30V/0~6A for CH2 ~ COM Setting step 1. Select the output range, 60V 60V/3A (120V)/3A or 30V (60V)/6A. Set the CH1/CH3 meter switch to the CH1 position.
  • Page 37 OPERATION 4. Connect the load to the front panel terminals, channel 1+ & channel 2−. Use Channel 1 (−) terminal as the common line connection. Common CURRENT VOLTAGE 5. Set the output Voltage using MASTER the Channel 1 (Master) C.V. Voltage knob.
  • Page 38 T3PS36006 User Manual CH CH1 / CH3 CH1(+)~COM Current = 1.84A in the above case CH2(–)~COM Current = 2.18A in the above case OUTPUT OUTPUT 7. Press the Output key. The Output indicator turns green. ON / OFF ON / OFF 8.

  • Page 39: Ch1/Ch2 Tracking Parallel Mode

    CH1/CH2 Tracking Parallel Mode Background / Tracking parallel operation doubles the Current Connection capacity of T3PS36006 by internally connecting Channel 1 (Master) and Channel 2 (Slave) in parallel and combining the output to a single channel. Channel 1 (Master) controls the combined output.
  • Page 40 T3PS36006 User Manual O.V.P. 3. Set the OVP if necessary. In tracking parallel mode, set the Channel 2 (Slave) OVP setting to the maximum level, so that the TRIP OVP trips if the Channel 1 (Master) setting is violated. For OVP setup details, see page23.
  • Page 41 OPERATION CH1 / CH3 Current level Double the reading on the Channel 1 meter. In the above case, the actual output is 1.84 x 2 = 3.68A. Voltage level Channel 1 meter reading shows the actual output Voltage. OUTPUT OUTPUT 8.

  • Page 42: Remote Output Control

    T3PS36006 User Manual EMOTE OUTPUT CONTROL Background The remote control terminal on the rear panel can turn the output On/Off, just like the Output key on the front panel. This feature is useful for OUTPUT automated measurement and testing using externally connected control...

  • Page 43: Performance Verification

    PERFORMANCE VERIFICATION ERFORMANCE VERIFICATION Overview ............... 44 Equipment ..................44 Default T3PS36006 setting ............45 Output Voltage Verification ........47 Tracking Series Voltage Verification ....... 50 Output Current verification ........52 OVP verification ............ 55 Recording Tables ........... 59 Output voltage verification (Minimum/Maximum) ..... 59 Output voltage verification (Meter accuracy) ......

  • Page 44: Overview

    T3PS36006 User Manual Overview Background Performance verification checks T3PS36006 functionality before the operation or at the incoming inspection. Recording tables are attached at the end of this chapter.  Verification item Output Voltage  Tracking Series Voltage  Output Current ...

  • Page 45: Default T3Ps36006 Setting

    PERFORMANCE VERIFICATION Default T3PS36006 setting The following is the required front and rear panel setting before running each verification. Range 60V/3A 30V/6A 60V/3A 60V/3A 30V/6A 30V/6A   Output Voltage Output Current   Tracking Series Tracking Parallel  OVP setting SW Normal position NORAL...
  • Page 46 T3PS36006 User Manual Channel 1/2 Minimum position CURRENT Current knob www.valuetronics.com...

  • Page 47: Output Voltage Verification

    Voltage meter accuracy (Output Off) Connection T3PS36006 Digital Multimeter Dual Display Digital ultimeter Verification step 1. Set the T3PS36006 panel according to the Default setting list, page 45. 2. Connect T3PS36006 Channel 1 and Digital Multimeter Voltage terminal. 0-60V, 3A 0-30V, 6A 3.
  • Page 48 T3PS36006 User Manual Channel 1/2 < 0V Channel 3 < 100mV VOLTAGE 7. Turn up the T3PS36006 Voltage knob to the maximum. Switch the Multimeter Voltage terminal if necessary. Maximum output 8. Record the Multimeter reading as the Maximum Voltage output Voltage.
  • Page 49 PERFORMANCE VERIFICATION Channel 3 11. Switch the CH1/CH3 meter switch to CH3 position. Connect the Multimeter to Channel 3 and repeat step 5 to 9. 0.1-5V, 3A * Skip step 4 since Channel 3 does not have Current knob. www.valuetronics.com...

  • Page 50: Tracking Series Voltage Verification

    Maximum output Voltage accuracy Connection T3PS36006 Digital Multimeter Dual Display Digital ultimeter Verification step 1. Set the T3PS36006 panel according to the Default setting list, page 45, except for the tracking switch (see below). 2. Set the tracking switch position to Series, 3.
  • Page 51 PERFORMANCE VERIFICATION OUTPUT OUTPUT 6. Turn on the T3PS36006’s output. ON / OFF ON / OFF VOLTAGE 7. Turn up the T3PS36006 Channel 1 Voltage knob until the Multimeter reading shows (1.000V) 1.000V. Minimum 8. Connect the Multimeter to tracking series...

  • Page 52: Output Current Verification

    Current meter accuracy (Output Off) Connection T3PS36006 Digital Multimeter Dual Display Digital ultimeter Verification step 1. Set the T3PS36006 panel according to the Default setting list, page 45. 2. Connect the T3PS36006 Channel 1 and Digital Multimeter Current terminal. 0-60V, 3A 0-30V, 6A 3.
  • Page 53 Channel 1/2/3 difference < ±(0.5% of reading + 2 digits) of Multimeter Example: Multimeter (Out On) = 3.000A Tolerance = ±(0.005*3 + 0.02) ≈ ±0.04A Accepted the T3PS36006 reading (Out On) = 2.96A~3.04A Accepted the T3PS36006 reading (Out Off) = 2.96A~3.04A www.valuetronics.com...
  • Page 54 T3PS36006 User Manual 10. Connect the Multimeter to the T3PS36006 Channel 2 and repeat step 4 to 9. 0-60V, 3A 0-30V, 6A 11. Connect the Multimeter to the T3PS36006 Channel 3 and repeat step 4, 5, 8, 9. 0.1-5V, 3A...

  • Page 55: Ovp Verification

     OVP functionality (Maximum) Connection T3PS36006 (No Connection) Verification step 1. Set the T3PS36006 panel according to the Default setting list, page 45. 2. Power up the T3PS36006. 3. Set the OVP setting switch to the “O.V.P. SET” position. NORAL O.V.P.
  • Page 56 T3PS36006 Voltage knob until the OVP indicator TRIP TRIP turns red (tripped). Minimum OVP 11. Record the T3PS36006 Voltage meter reading as functionality the Minimum range OVP functionality. Here is the acceptance range. Channel 1/2 0.5V ~ 1.5V Channel 3 0.00V ~ 1.00V...
  • Page 57 TRIP 15. Turn up the OVP setting INCREASE C1 terminal to maximum. Maximum OVP 16. Record the T3PS36006 Voltage meter reading as setting the Maximum OVP setting accuracy. Here is the acceptance range. Channel 1/2 65.0 ~ 68.0V Channel 3 6.00 ~ 7.00V...
  • Page 58 T3PS36006 Voltage knob until the OVP indicator TRIP TRIP turns red (tripped). Maximum OVP 21. Record the T3PS36006 Voltage meter reading as functionality the Maximum range OVP functionality. Here is the acceptance range. Channel 1/2 59.2V ~ 60.8V Channel 3 4.47V ~ 5.53V...

  • Page 59: Recording Tables

    62.5V Output Voltage 61.5V 62.5V 5.2V 5.3V Output voltage verification (Meter accuracy) Tolerance = ± (0.5%*Multimeter +0.2) V Channel Multimeter Tolerance T3PS36006 T3PS36006 (On) (Off) Channel 1 Channel 2 Channel 3 Tracking series voltage verification Item Channel Min. limit Result Max.

  • Page 60: Output Current Verification (Minimum/Maximum)

    T3PS36006 User Manual Output current verification (Minimum/Maximum) Item Channel Min. limit Result Max. limit –1mA Minimum –1mA Output Current Maximum 6.15A 6.25A Output Current 6.15A 6.25A 3.05A 3.15A Output current verification (Meter accuracy) Tolerance = ± (0.5%*Multimeter +0.02) A Channel...

  • Page 61: Faq

    Q1. I cannot turn on the output (the Output key does not respond). A1. The following scenarios are possible.  The rear panel remote control terminal is in the Off position. In this case, set it to the On position or deactivate remote control. For details, see page42.

  • Page 62: Appendix

    T3PS36006 User Manual PPENDIX Fuse Replacement Step 1. Take off the power cord and remove the fuse socket using a minus driver. 2. Replace the fuse in the holder. Rating T10A/250V www.valuetronics.com...

  • Page 63: Specification

    APPENDIX Specification Output Ratings CH1/CH2 0 ~ 30V / 0 ~ 6A Independent 0 ~ 60V / 0 ~ 3A CH1/CH2 0 ~ 60V / 0 ~ 6A Series 0 ~ 120V / 0 ~ 3A CH1/CH2 0 ~ 30V / 0 ~ 12A Parallel 0 ~ 60V / 0 ~ 6A 0.1 ~ 5V / 3A...
  • Page 64 T3PS36006 User Manual Resolution 100mV/10mA 100MΩ or above (DC 1000V) Insulation Chassis and Terminal 100MΩ or above (DC 1000V) Chassis and AC cord ≤ 100ppm/°C+3mV Temperature Voltage Coefficient ≤ 150ppm/°C+3mA Current Remote Control Output On/Off ≤ 50dB Fan Noise Operation Ambient temperature 0 ~ 40°C...

  • Page 65: Index

    INDEX NDEX block diagram, system ....11 socket overview ......18 caution symbol ......5 ground symbol ......5 cleaning the instrument ....7 list of features ......10 constant current mode ....19 load connection constant voltage mode ....19 independent mode .......
  • Page 66 T3PS36006 User Manual output range specification ........64 independent mode ....... 29 switch overview ......15 specification ........63 rear panel diagram ....18 switch overview ......15 remote output control tracking parallel ......39 disable manual control ....26 tracking series ......
  • Page 67    !"                  "     )        #   #        %     #       ...
