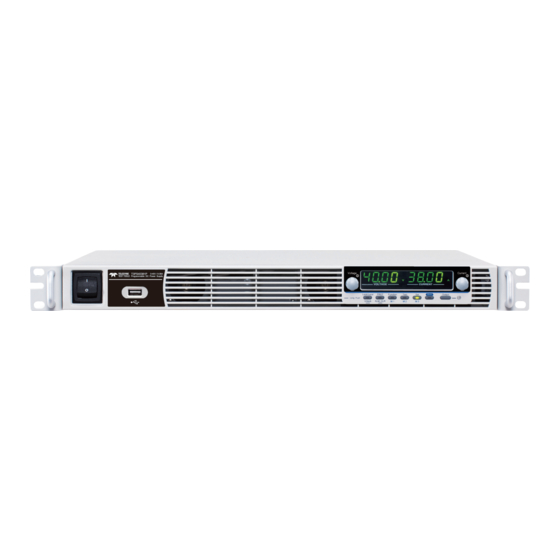

  • Page 1 T3PS40381P, T3PS60251P, T3PS062001P Programmable DC Power Supplies Quick Start Guide...
  • Page 2 All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Teledyne LeCroy company. The information in this quick start guide was correct at the time of printing.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Table of Contents SAFETY INSTRUCTIONS ..........4 GETTING STARTED ............8 T3PS Series Overview ..........8 Appearance ............10 OPERATION ..............17 How to Use the Instrument ........17 Reset to Factory Default Settings ......19 APPENDIX ..............20 T3PS Specifications ..........

  • Page 4: Safety Instructions

    T3PS Quick Start Guide AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to insure your safety and to keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument.
  • Page 5 SAFETY INSTRUCTIONS Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines Do not place any heavy object on the T3PS. General  Guideline Avoid severe impact or rough handling that ...
  • Page 6 T3PS Quick Start Guide Use proper power cord. Maintain ground. The AC inlet ground is connected to the frame of the instrument. Connect line cords only to outlets with safety ground contacts. Interrupting the protective conductor (safety ground WARNING wire) inside or outside the instrument, or disconnecting the safety ground terminal, creates a hazardous situation.
  • Page 7 SAFETY INSTRUCTIONS Location: Indoor Storage  environment Temperature: -25°C to 70°C  Relative Humidity: ≤90%(no condensation)  Do not dispose this instrument as unsorted Disposal municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased.

  • Page 8: Getting Started

    The T3PS series consists of 3 models, covering a number of different current, voltage and power capacities: Model name Voltage Rating Current Rating Power T3PS062001P 200A 1200W T3PS40381P 1520W T3PS60251P 1500W Minimum voltage guaranteed to 0.2% of rating voltage. Minimum current guaranteed to 0.4% of rating current.
  • Page 9 GETTING STARTED Main Features High power density: 1500W in 1U Performance  Universal input voltage 85-265Vac, continuous  operation. Output voltage up to 60V, current up to 200A.  Active power factor correction. Features  Parallel master/slave operation with active ...

  • Page 10: Appearance

    T3PS Quick Start Guide Appearance Front Panel Display Area Voltage Current VOLTAGE CURRENT Lock/ Local PROT Function Test Shift Output : Long Push Unlock ALM_CLR 9 10 12 13 Used to turn the power on/off. Power Switch USB A port for data transfer, USB A Port loading test scripts etc.
  • Page 11 GETTING STARTED Used to lock all front panel Lock/Local Lock/Local buttons other than the Output Button Button or it switches to local Unlock mode. (Long push) Used to unlock the Unlock Button front panel buttons. Used to set and display OVP, OCP PROT Button PROT and UVL.
  • Page 12 T3PS Quick Start Guide Used to enable the functions that 11. Shift Button Shift are written in blue characters below certain buttons. Used to turn the output on or off. 12. Output Output Button Lights in green when the output is 13.
  • Page 13 GETTING STARTED Display and Operation Panel Display Area VOLTAGE CURRENT Displays the voltage or the parameter number of a 14. Voltage Meter Function parameter. Displays the current or the value of a Function 15. Current parameter. Meter Lights in green during constant voltage mode. 16.
  • Page 14 T3PS Quick Start Guide Lights up when CC Slew Rate Priority is enabled. 24. ISR LED Lights in green when the memory value are being 25. M1 LED recalled or saved. Lights in green when the memory value are being 26.
  • Page 15 GETTING STARTED Rear Panel DC OUTPUT RS485 / 232 ANALOG PROGRAMMING 240V S LS 47 63Hz 2000VA MAX. AC INPUT REMOTE SENSE Wire clamp connector. AC Input AC INPUT Output terminals for 6V to 60V DC Output models. USB port for controlling the T3PS remotely.
  • Page 16 T3PS Quick Start Guide RS485 support via user supplied cable with DB9 / RJ45 connectors wired according to the table on page 124 of the T3PS user manual. RS 485 / 232 RJ-45 connector that is used to Remote-OUT daisy chain power supplies with the Remote-IN port to form a communication bus.

  • Page 17: Operation

    OPERATION PERATION How to Use the Instrument The T3PS power supplies use a novel method of Background configuring parameter values only using the voltage or current knobs. The knobs are used to quickly edit parameter values at 0.01, 0.1 or 1 unit steps at a time.
  • Page 18 T3PS Quick Start Guide 3. Repeatedly press the Voltage knob until the most significant digit is highlighted. This will allow the voltage to be edited in 1 volt steps. 4. Turn the Voltage knob until 10.05 is shown. VOLTAGE CURRENT Notice the Set key becomes illuminated when setting Note the current or voltage.

  • Page 19: Reset To Factory Default Settings

    OPERATION Reset to Factory Default Settings The F-88 configuration setting allows the T3PS to Background be reset back to the factory default settings. 1. Press the Function key. The Steps Function Function key will light up. 2. The display should show F-01 on the top and the configuration setting for F-01 on the bottom.

  • Page 20: Appendix

    Rated Output Voltage Rated Output Current Rated Output Power 1200 1520 1500 Constant Voltage Mode Model T3PS062001P T3PS40381P T3PS60251P Line regulation Load regulation Ripple and noise r.m.s. ppm/ °C 100ppm/°C of rated output voltage, after a Temperature coefficient 30 minute warm-up.
  • Page 21 Ripple and noise r.m.s. mA ppm/ °C 100ppm/°C of rated output current, after a 30 Temperature coefficient minute warm-up. Protection Function Model T3PS062001P T3PS40381P T3PS60251P Setting range V 0.6 - 6.6 4 - 44 5 - 66 Over voltage protection (OVP) Setting accuracy V 0.06...
  • Page 22 Voltage, Current USB port Type A USB connector Programming and Measurement (RS-232/485, USB, LAN) Model T3PS062001P T3PS40381P T3PS60251P Output voltage programming accuracy 0.05% + mV 3 Output current programming accuracy 0.2% + mA 200 Output voltage programming mV 0.2 resolution...
  • Page 23 9.2A Inrush current Less than 50A. Maximum input power 2000VA 100Vac 0.99 Power factor 240Vac 0.98 Model T3PS062001P T3PS40381P T3PS60251P Efficiency 100Vac % 76.5 240Vac % Model T3PS All models Hold-up time 20ms or greater Interface Capabilities Model T3PS All models Type A: Host, Type B: Slave, Speed: 1.1/2.0, USB Class:...
  • Page 24 T3PS Quick Start Guide Dimensions (W×H×D) mm 423×43.6×447.2 Cooling Forced air cooling by internal fan. Complies with the European EMC directive 2014/30/EU for Class A test and measurement products. Complies with the European Low Voltage Directive Safety 2014/35/EU and carries the CE-marking. AC to Chassis: 1500Vac/1min AC to Output terminal: 3000Vac/1min Withstand...

  • Page 25: Certifications

    CERTIFICATIONS ERTIFICATIONS Teledyne LeCroy certifies compliance to the following standards as of the time of publication. Please see the EC Declaration of Conformity document shipped with your product for current certifications. EMC Compliance EC DECLARATION OF CONFORMITY - EMC The instrument meets intent of EC Directive 2014/30/EU for Electromagnetic Compatibility.
  • Page 26 Performance Criteria “C” applied for 70%/25 cycle voltage dips and for 0%/250 cycle voltage interruption test levels per EN61000-4-11. European Contact:* Teledyne GmbH, European Division Im Breitspiel 11c D-69126 Heidelberg Germany Tel: + 49 6221 82700 AUSTRALIA &...

  • Page 27: Safety Compliance

    CERTIFICATIONS AS/NZS CISPR 11:2015 Radiated and Conducted Emissions, Group 1, Class A. Australia / New Zealand Contacts:* RS Components Pty Ltd. RS Components Ltd. Suite 326 The Parade West Units 30 & 31 Warehouse World Kent Town, South Australia 5067 761 Great South Road Penrose, Auckland, New Zealand * Visit teledynelecroy.com/support/contact for the latest contact information.

  • Page 28: Environmental Compliance

    Many countries prohibit the disposal of waste electronic equipment in standard waste receptacles. For more information about proper disposal and recycling of your Teledyne LeCroy product, please visit teledynelecroy.com/recycle. RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) EC DECLARATION OF CONFORMITY – RoHS...
  • Page 29 CERTIFICATIONS limits for certain restricted substances in electrical and electronic products). The instrument is marked with an appropriate Environmental Friendly Use Period (EFUP) symbol. The packaging materials include the appropriate recycling labels. The below substance disclosure tables (in Chinese and English languages) provide the required compliance information.
  • Page 30 T3PS Quick Start Guide Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Part Name (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (Cr6+) (PBB) (PBDE) PCBAs Mechanical Hardware Sheet Metal Plastic Parts Cable Assemblies Display Power Supply Fans Batteries Power Cord...
  • Page 32 © 2020 Teledyne Test Tools is a brand and trademark of Teledyne LeCroy Inc. All rights reserved. Specifications, prices, availability and delivery subject to change without notice. Product brand or brand names are trademarks or requested trademarks of their respective holders.

This manual is also suitable for:

T3ps60251pT3ps062001p
