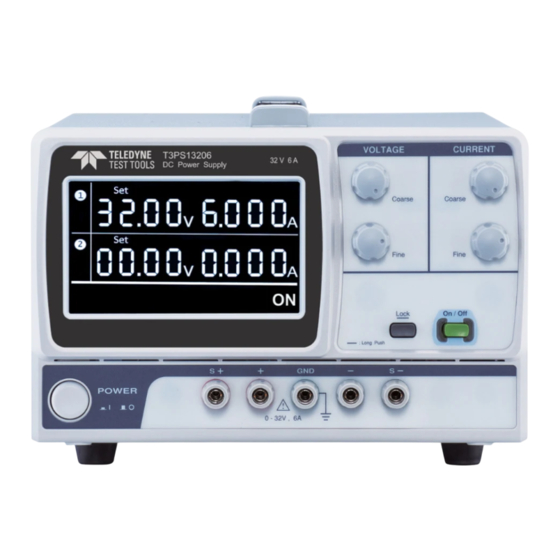

Teledyne T3PS13206 User Manual
  1. Manuals
  2. Brands
  3. Teledyne Manuals
  4. Power Supply
  5. T3PS13206
  6. User manual
Teledyne T3PS13206 User Manual

Teledyne T3PS13206 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links











Advertisement

Table of Contents
loading

Related Manuals for Teledyne T3PS13206

Summary of Contents for Teledyne T3PS13206

  • Page 1        ...
  • Page 2 Teledyne LeCroy company. The information in this manual was correct at the time of printing. However, Teledyne LeCroy continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Table of Contents SAFETY INSTRUCTIONS ........... 5 OVERVIEW ..............10 Introduction ............11 Series Lineup / Main Features ......13 Principle of Operation .......... 14 Front Panel Overview ..........16 Display ..............20 Rear Panel Overview ..........23 CV/CC Crossover Characteristics ......
  • Page 4 T3PSX3200 Series User Manual APPENDIX ..............49 Fuse Replacement ..........49 Specifications ............50 INDEX ................53...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow when operating the T3PSX3200 series and when keeping it in storage. Read the following before any operation to insure your safety and to keep the best condition for the T3PSX3200 series.
  • Page 6 T3PSX3200 Series User Manual Safety Guidelines Do not place any heavy object on the device. General  Guidelines Avoid severe impacts or rough handling that  leads to damaging the device. CAUTION Do not discharge static electricity to the device. ...
  • Page 7 SAFETY INSTRUCTIONS To ensure fire protection, replace the fuse only  with the specified type and rating. Disconnect the power cord before fuse  replacement. Make sure the cause of fuse blowout is fixed  before fuse replacement. Disconnect the power cord before cleaning. Cleaning the ...
  • Page 8 T3PSX3200 Series User Manual Location: Indoor Storage  environment Relative Humidity: < 70%  Temperature: −10°C to 70°C  Do not dispose this instrument as unsorted Disposal municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased.
  • Page 9 SAFETY INSTRUCTIONS Power cord for the United Kingdom When using the T3PSX3200 series in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow:...
  • Page 10 T3PSX3200 Series User Manual VERVIEW This chapter describes the T3PSX3200 series, including its main features and front/ rear panel introduction. After going through the overview, follow the Setup chapter (page 25) to properly power up and set operation environment. Introduction ............11 Series Lineup / Main Features .......

  • Page 11: Overview

    The T3PSX3200 series regulated DC power supply Overview series are light weight, adjustable, multifunctional power supplies. The T3PS13206 has a single independent adjustable voltage output (Coarse and fine). The remote voltage compensation function is activated for large changes in current output.
  • Page 12 T3PSX3200 Series User Manual Each output channel works in constant voltage Constant Voltage/ (CV) or constant current (CC) mode. Even at the Constant Current maximum output current, a fully rated, continuously adjustable output voltage is provided. For a big load, the power supply can be used as a CV source;...

  • Page 13: Series Lineup / Main Features

     T3PS13206: 32V/6A x1; T3PS23203: 32V/3A x2; T3PS33203: 32V/3A x2, 5V/5A x 1 T3PS43203: 32V/3A x2, 5V/1A x1, 15V/1A x1  Coarse and fine Voltage/Current control(T3PS13206) Output voltage compensation control  (T3PS13206) Function for locking the setting voltage  (CH1/CH2) Output voltage/ current setting view ...

  • Page 14: Principle Of Operation

    T3PSX3200 Series User Manual Principle of Operation The power supply consists of the following. Overview AC input circuit  Transformer  Bias power supply including rectifier, filter,  pre-regulator and reference voltage source Main regulator circuit including the main  rectifier and filter, series regulator, current comparator, voltage comparator, reference voltage amplifier, remote device and relay...
  • Page 15 OVERVIEW Auxiliary Rectifier The auxiliary rectifiers D120~ D123 provide bias voltage filtered by the capacitors C120 and C121, for the pre-regulators U150 and U151. They provide a regulated voltage for other modules. The main rectifier is a full wave bridge rectifier. It Main Rectifier provides the power after the rectifier is filtered by the capacitor C101, and then regulated via a...

  • Page 16: Front Panel Overview

    T3PSX3200 Series User Manual Front Panel Overview T3PS43203 32 V 3A Voltage Voltage DC Power Supply Series Parallel Current Current Independent CH1/ CH4 CH2/CH3 CH4 Voltage CH3 Voltage On / Off Set View : Long Push Lock POWER 0 - 32V 0 - 32V MASTER SLAVE...
  • Page 17 OVERVIEW Accepts a grounding wire. Terminal Outputs CH2 voltage and current. 0 - 32V Output SLAVE View When the output is ON, you can view Set View setting the voltage/current settings of each Lock value/ channel by pressing this key. The Key lock corresponding channel will be displayed on the LCD display.
  • Page 18 Parallel Series operation. For details, see page 42. The Keys corresponding channel will be Independent displayed on the LCD display. The T3PS13206 doesn’t have this function. Sets the voltage/current for the Voltage T3PS23203/33203/43203. Current (For T3PS13206 only) Single Sets the voltage and current. It has...
  • Page 19 On / Off Set View : Long Push Lock 0 - 32V 0 - 32V POWER MASTER SLAVE SERIES OUTPUT PARALLEL OUTPUT T3PS13206 VOLTAGE CURRENT T3PS13206 32 V 6A DC Power Supply Coarse Coarse Fine Fine Lock On / Off...

  • Page 20: Display

    T3PSX3200 Series User Manual Display No. Item Description CH1/CH4 parameter display area *(Parameter settings for the T3PS13206) CH2/CH3 parameter display area *(Parameter settings for the T3PS13206) CH3 parameter display area for the T3PS33203 Status display area Output status display Displays output voltage of each channel.
  • Page 21 CH3 display: (T3PS33203) Displays output current of each channel. Ammeter T3PS43203: CH1/CH4 and CH2/CH3 T3PS23203/T3PS33203: CH1 and CH2 T3PS13206: Current setting/readback 3 digits: 4 digits: You can view the constant current, CV/CC/OVP constant voltage or OVP status for CH1 indicators...
  • Page 22 When the output is on, you can view the voltage/current setting depending on which channel is selected. The T3PS13206 displays both the reading and the setting values simultaneously without pressing this function key.

  • Page 23: Rear Panel Overview

    OVERVIEW Rear Panel Overview WARNING AC Selector To avoid electric shock the power cord protective grounding conductor 100V 120V 220V 230V must be connected to ground. For continued fire protection. Replace fuse only with 250V fuse of the specified type and rating. No operator serviceable components inside.

  • Page 24: Cv/Cc Crossover Characteristics

    T3PSX3200 Series User Manual CV/CC Crossover Characteristics The T3PSX3200 series automatically switches between Background constant voltage mode (CV) and constant current mode (CC), according to load condition. When the current level is smaller than the output CV mode setting, the T3PSX3200 series operates in Constant Voltage mode.

  • Page 25: Setup

    SETUP ETUP This chapter describes how to properly power up and configure the T3PSX3200 series before operation. Power Up .............. 26 Load Cable Connection ......... 27 Output On/Off ............28 Select CH1/CH2 series or parallel mode ....29 Switch between Channels ........30 Setting Voltage Lock from Front Panel ....

  • Page 26: Power Up

    T3PSX3200 Series User Manual Power Up Before powering up the Select AC AC Selector 100V 120V 220V 230V power supply, select the AC voltage input voltage from the rear panel. CAUTION Connect the AC power cord to the rear Connect AC panel socket.

  • Page 27: Load Cable Connection

    SETUP Load Cable Connection 1. Turn the terminal Standard counterclockwise and accessories loosen the screw. (GTL-104A， GTL-105A) 2. Insert the cable terminal. 3. Turn the terminal clockwise and tighten the screw. Insert the plug into the socket. Banana plug When using load cables other than the attached, Wire type make sure they have enough current capacity for minimizing cable loss and load line impedance.

  • Page 28: Output On/Off

    T3PSX3200 Series User Manual Output On/Off Press the Output key to turn on Panel operation On / Off On / Off all outputs in each channel. Push the Output key again to On / Off On / Off turn off all outputs. The icon will become lit on the LCD display.

  • Page 29: Select Ch1/Ch2 Series Or Parallel Mode

    SETUP Select CH1/CH2 series or parallel mode When you need to output a higher voltage or Background / current the T3PSX3200 series can be connected in Connection series or parallel to achieve it. When connecting in series, the output voltage is twice than that of a single channel.

  • Page 30: Switch Between Channels

    T3PSX3200 Series User Manual Switch between Channels This feature is only available for the Background / T3PS43203.The voltage and current settings and Connection readback values for 2 channels can be displayed on the LCD display simultaneously. To check and view the relevant information for the other channels, you need to switch channels.

  • Page 31: Setting Voltage Lock From Front Panel

    SETUP Setting Voltage Lock from Front Panel The lock function of the T3PSX3200 series can be Background / used when you need to keep the output voltage Connection constant to avoid the load from being damaged due to inadvertent operation. The voltage lock takes the present channel settings as the reference levels.

  • Page 32: Set The Output State At Startup

    T3PSX3200 Series User Manual Set the output state at startup Through the following steps, you can set the Background / output state of the T3PSX3200 series at its next Connection startup. There are two choices, ON and OFF available for selection. 1.

  • Page 33: Set The Displayed Digit Resolution For The Voltage/Current

    SETUP Set the displayed digit resolution for the voltage/current Background / T3PSX3200 series can set the displayed digit Connection resolution for the voltage and current settings/readings to 3 or 4 digits at startup. 1. Press and hold the "Set View" key Panel operation Set View and turn the power until on the...

  • Page 34: Remote Control Setting

    For continued fire protection. Replac Do not remove covers. Refer servici specified type and rating. No operator serviceable component T3PSX3200 Series User Manual Do not remove covers. Refer servici Remote Control Setting SER.NO. LABEL Through the "Remote Control" terminal, the Background / T3PSX3200 series can turn the power on or off.

  • Page 35: Operation

    OPERATION PERATION CH1/CH2 Independent Mode ....... 36 CH3 Independent Mode ........38 CH4 Independent Mode ........40 CH1/CH2 Series Tracking Mode ......42 Series Tracking without Common Terminal ......42 Series Tracking with Common Terminal ........ 44 CH1/CH2 Parallel Tracking Mode ......46...

  • Page 36: Ch1/Ch2 Independent Mode

    T3PSX3200 Series User Manual CH1/CH2 Independent Mode CH1 and CH2 outputs work independent of each Background / other. Connection T3PS43203 32 V 3A Voltage Voltage DC Power Supply Series Parallel Current Current Independent CH1/ CH4 CH2/CH3 CH4 Voltage CH3 Voltage On / Off Set View : Long Push...
  • Page 37 OPERATION 3. Use the voltage and current knob to set the CH1 output voltage and Voltage current. Current 4. Use the voltage and current knob to Voltage set the CH2 output voltage and current. Current 5. Press the Output key to turn On / Off On / Off on the output.

  • Page 38: Ch3 Independent Mode

    T3PSX3200 Series User Manual CH3 Independent Mode T3PS43203 32 V 3A Voltage Voltage DC Power Supply Series Parallel Current Current Independent CH1/ CH4 CH2/CH3 CH4 Voltage CH3 Voltage On / Off Set View Lock : Long Push POWER 0 - 32V 0 - 32V MASTER SLAVE...
  • Page 39 OPERATION 3. Press the Output key to turn on On / Off On / Off the output. The Output key will be lit. T3PS33203: When the output OVERLOAD Overload current level exceeds 5.2A, the overload icon appears on the LCD display and CH3 operation mode switches from constant voltage to constant current.

  • Page 40: Ch4 Independent Mode

    T3PSX3200 Series User Manual CH4 Independent Mode The mode is used only for the T3PS43203 Background / Connection T3PS43203 32 V 3A Voltage Voltage DC Power Supply Series Parallel Current Current Independent CH1/ CH4 CH2/CH3 CH4 Voltage CH3 Voltage On / Off Set View : Long Push Lock...
  • Page 41 OPERATION 3. Press the Output key to turn on On / Off On / Off the output. The Output key will be lit. CV → CC When the output current level exceeds the setting value, the CV icon changes to the CC icon on the LCD display. This indicates that CH4 has switched from constant voltage to constant current.

  • Page 42: Ch1/Ch2 Series Tracking Mode

    T3PSX3200 Series User Manual CH1/CH2 Series Tracking Mode Series tracking operation allows the Background T3PS23203/33203/43203 to combine the output by internally connecting CH1 (Master) and CH2 (Slave) in series. CH1 (Master) controls the combined output voltage/current level which is set independently. The following describes two types of configurations, depending on how common ground is used.
  • Page 43 OPERATION 3. Use the current knob to set the CH2 Current output current to the maximum level. 4. Use the voltage and current knob to set the CH1 output voltage and Voltage current level. Current 5. Press the Output key to turn On / Off On / Off on the output.

  • Page 44: Series Tracking With Common Terminal

    T3PSX3200 Series User Manual Series Tracking with Common Terminal Connection T3PS43203 32 V 3A Voltage Voltage DC Power Supply Series Parallel Current Current Independent CH1/ CH4 CH2/CH3 CH4 Voltage CH3 Voltage On / Off Set View : Long Push Lock POWER 0 - 32V 0 - 32V...
  • Page 45 OPERATION 3. Use the CH1 voltage knob to Voltage set the master & slave output voltage (the same level for both channels). 4. Use the CH1 current knob to Current set the master output current. 5. Use the CH2 current knob to Current set the slave output current.

  • Page 46: Ch1/Ch2 Parallel Tracking Mode

    T3PSX3200 Series User Manual CH1/CH2 Parallel Tracking Mode Parallel tracking operation allows the Background / T3PS23203/33203/43203 to combine the output by Connection internally connecting CH1 (Master) and CH2 (Slave) in parallel. CH1 (Master) controls the combined output voltage/current level. T3PS43203 32 V 3A Voltage Voltage...
  • Page 47 OPERATION 3. Use the CH1 voltage and current knobs to set the output voltage and Voltage current. CH2 control function is disabled. Current 4. Press the Output key to turn On / Off On / Off on the output. The Output key will be lit.

  • Page 48: Faq

    T3PSX3200 Series User Manual Q1. I pressed the panel lock key but the output still turns on/off. A1. For safety reasons the output key is not affected by the panel key lock feature. Q2. The CH3 overload indicator turned on – is this an error? A2.

  • Page 49: Appendix

    APPENDIX PPENDIX Fuse Replacement 1. Take out the power cord and remove the fuse Steps socket using a flat head driver. 2. Replace the fuse in the holder. 100V/120V:T6.3A/250V Rating  220V/230V:T3.15A/250V ...

  • Page 50: Specifications

    30 minutes under +20°C – +30°C. Output Ratings CH1/CH2 0 ~ 32V / 0 ~ 3A Independent 0 ~ 32V / 0 ~ 6A(T3PS13206) CH1/CH2 0 ~ 64V / 0 ~ 3A Series CH1/CH2 0 ~ 32V / 0 ~ 6A...
  • Page 51 Environment Power Source AC 100V/120V/220V±10%, 230V+10%/-6%, 50/60Hz Accessories Quick Start Guide x1, Power Cord x 3 Test lead: T3PS13206: GTL-104A x1, GTL-105A x1 T3PS23203: GTL-104A x2 T3PS33203: GTL-104A x3 T3PS43203: GTL-104A x2, GTL-105A x2 Dimensions 210 (W) x 155 (H) x 306 (D) mm...
  • Page 52 T3PSX3200 Series User Manual Weight Approx. 8.7kg Specifications listed above are specifications under the “Unlock” state.

  • Page 53: Index

    INDEX NDEX Automatic out off ....28 Operation mode Banana plug ......27 Independent ..... 36 Caution symbol....... 5 Parallel Tracking ....46 CC/CV ........39 Series Tracking ....42 CC/CV indicator ....41 Specifications ....50 Cleaning the instrument ..7 Output current setting Common terminal, series Manual ......
  • Page 54    !"                  "     )        #   #        %     #       ...
