- Page 2 Teledyne LeCroy company. The information in this manual was correct at the time of printing. However, Teledyne LeCroy continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.
-
Page 3: Table Of Contents
Table of Contents Table of Contents SAFETY INSTRUCTIONS ..........4 Safety Symbols ............4 Safety Guidelines ............5 Power cord for the United Kingdom ......8 OVERVIEW ..............9 Key Features ............10 Front Panel ............. 12 Rear Panel .............. 19 GETTING STARTED ............ -
Page 4: Safety Instructions
Warning: Identifies conditions or practices that WARNING could result in injury or loss of life. Caution: Identifies conditions or practices that CAUTION could result in damage to the T3PSX3200P series or to other properties. DANGER High Voltage Attention Refer to the Manual Protective Conductor Terminal... -
Page 5: Safety Guidelines
Do not block the cooling fan opening. Do not perform measurements on circuits that are directly connected to mains power. Do not disassemble the T3PSX3200P series unless you are qualified. Do not connect the measuring terminals of the ... - Page 6 Temperature: 0°C to 40°C (Pollution Degree) EN 61010-1:2010 specifies pollution degrees and their requirements as follows. The T3PSX3200P series falls under degree 2. Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.
- Page 7 SAFETY INSTRUCTIONS Before the power is turned on, AC SELECTOR Checking the AC confirm that the input power Voltage supply meets the following 230V 220V 120V 100V conditions: CAUTION 100V/120V/220V/230V ±10%， 50/60Hz...
-
Page 8: Power Cord For The United Kingdom
T3PSX3200P Series Quick Start Guide Power cord for the United Kingdom When using the power supply in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons... -
Page 9: Overview
OVERVIEW VERVIEW This chapter contains a brief introduction to T3PSX3200P series including the main features and an overview of the front and rear panel. Key Features ............10 Front Panel ............. 12 Rear Panel .............. 19... -
Page 10: Key Features
T3PSX3200P Series Quick Start Guide Key Features Multiple Outputs: Features T3PS13206P: 32V/6A x 1 T3PS23203P: 32V/3A x 2 (CH1/CH2) T3PS33203P: 32V/3A x 2 (CH1/CH2) 1.8V/2.5V/3.3V/5V/5A x 1(CH3) USB Port Output: 3A T3PS43203P: 32V/3A x 2 (CH1/CH2) 5V/1A x 1(CH3), 15V/1A x 1 (CH4) Constant voltage and constant current operation ... - Page 11 OVERVIEW Overvoltage and overcurrent protection (OVP/ Protection OCP) Features Overtemperature protection (OTP). Polarity Reverse Protection Overload Protection (OPP in Load mode) Remote Control RS-232 Interface USB remote control. Control I/O LAN remote control ...
-
Page 12: Front Panel

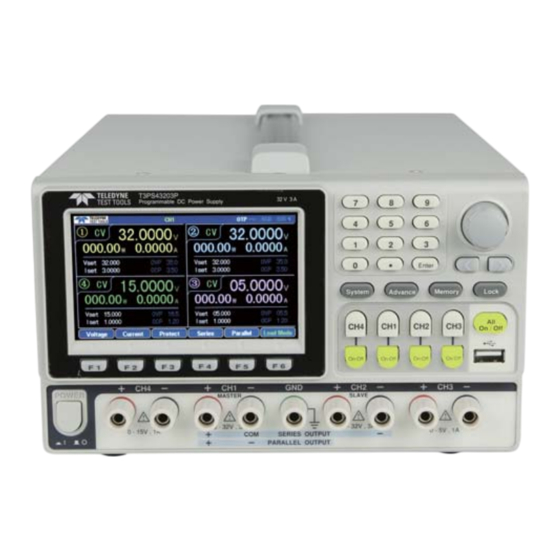

T3PSX3200P Series Quick Start Guide Front Panel Function Number Scroll wheel/ keys Arrow keys T3PS43203P 32 V 3 A Programmable DC Power Supply Enter System Advance Memory Lock ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF MASTER SLAVE 0 - 32V , 3A... - Page 13 OVERVIEW Channel number and distribution vary by models Channel with different colors identifications: distribution CH1: Yellow CH2: Blue CH3: Pink CH4：Green CH1 is master and CH2 becomes yellow under tracking series and tracking parallel modes. Single channel Channel/ Status Voltage display display Power Current display...
- Page 14 T3PSX3200P Series Quick Start Guide Displays the output current with up to 5 digits of Ammeter resolution. The default units are ampere (A). Indicator CH1: CH2： CH3： (T3PS43203P) CH4： Setting Display Displays the voltage and current settings. CH1/CH2/CH3/CH4: CH3(T3PS33203P) displays setting of voltage only...
- Page 15 OVERVIEW Display the set function/remote control interface Status Indicator : The active channel under setting status : The status of OTP protection mode : The status of USB flash drive connected : USB remotely disconnected : USB remotely connected : The status of control I/O connected Others: when operating in the series/parallel tracking mode, the corresponding SER/PAR icons appear on the display.
- Page 16 T3PSX3200P Series Quick Start Guide Scroll wheel is used to set each Scroll wheel & parameter value, whilst arrow Arrow keys keys are used for parameter, menu selection and voltage/current fine adjustment. It is used to switch or operate the displayed waveforms under diagram display mode.
- Page 17 OVERVIEW Terminals Power output terminal or load input CH1 terminal MASTER terminal 0 - 32V , 3A Power output terminal or load input CH2 terminal SLAVE terminal 0 - 32V , 3A Power output terminal CH3 terminal 0 - 5V , 1A Power output terminal (T3PS33203P only) 3A MAX...
- Page 18 T3PSX3200P Series Quick Start Guide Panels of other models: T3PS13206P T3PS13206P Programmable Power Supply GPP-1326 32 V 6 A Programmable DC Power Supply 32 V 6 A Enter System Advance Memory Lock On / Off 0 - 32V , 6A...
-
Page 19: Rear Panel
OVERVIEW Rear Panel Alternate input switch To avoid electric shock the power cord protective grounding conductor must be connected to ground. WARNING For continued fire protection. Replace fuse only with 250V fuse of the AC SELECTOR specified type and rating. No operator serviceable components inside. - Page 20 T3PSX3200P Series Quick Start Guide RS232 port for remote control. RS 232 port RS-232 5 ports in all for input/output control. Control I/O port Control I/O...
-
Page 21: Getting Started
GETTING STARTED ETTING STARTED This chapter describes the start up procedures and the preparation that is necessary before operating the power supply. Start Up ..............22 Load Connection ............ 23 Turning the Output On/Off ........24... -
Page 22: Start Up
T3PSX3200P Series Quick Start Guide Start Up Before the power is turned on, AC SELECTOR Checking the AC confirm that the input power Voltage supply meets the following 230V 220V 120V 100V conditions: CAUTION 100V/120V/220V/230V ±10% 50/60Hz The fuse is a slow-blow fuse. -
Page 23: Load Connection
GETTING STARTED Load Connection Recommended Model Specification Usage Cables GTL-104A Front panel terminal Sense (T3PS13206P GTL-105A only) Use the GTL-104A cables for the Front panel MASTER front panel source connections. wiring 0 - 32V , 3A USB Type A only (Greater than 4A) 3A MAX Use the GTL-105A cables for the... -
Page 24: Turning The Output On/Off
T3PSX3200P Series Quick Start Guide Turning the Output On/Off Panel Operation Press the Output key of ON/OFF ON/OFF each channel individually to turn the output on. The Output key will light-up when the output is on. When the output is turned... -
Page 25: Appendix
APPENDIX PPENDIX Specifications The specifications apply under the following conditions: The T3PSX3200P series is powered on for at least 30 minutes, within +20°C- +30°C. Power Mode Output CH1/CH2 0 - 32.000V, 0 - 3.0000A Rating Independent (T3PS13206: 0 - 6.0000A) CH1, CH2 0 - 64.000V, 0 - 3.0000A... - Page 26 T3PSX3200P Series Quick Start Guide Line Regulation ≤ 0.2% + 3mA Current Load Regulation ≤ 0.2% + 3mA ≤ 2mArms; Ripple & noise ≤ 4mArms (T3PS13206) ≤ 0.1% +10mV of Master (0 - 32V) Tracking Tracking error Operation (No Load, with load add load regulation ≤...
- Page 27 APPENDIX The output current from the 2 terminals should Not Warning exceed 5A. Load Mode Display Voltage 1-33.00V Current 0-3.200A(T3PS13206:0-6.200A) Power 0-50.00(T3PS13206:0-100.00W) CV Mode CH1/CH2 1.500V - 33.00V ≤ 0.1% + 30mV Setting/ Readback accuracy Resolution 10mV CC Mode CH1/CH2 0 ~ 3.200A 0 ~ 6.200A(T3PS13206) ≤...
- Page 28 T3PSX3200P Series Quick Start Guide Power/Load OFF, ON(0.05A-7.00A)(T3PS13206) mode OFF, ON(0.05A-3.50A)(CH1/CH2) OFF, ON(0.05A-1.20A) (T3PS43203P:CH3/CH4) 3.1A (USB port) (T3PS33203P:CH3) Setting ±20mA accuracy Resolution 10mA Insulation Between 20MΩ or above (DC 500V) resistance chassis and terminal Between 30MΩ or above (DC 500V)
