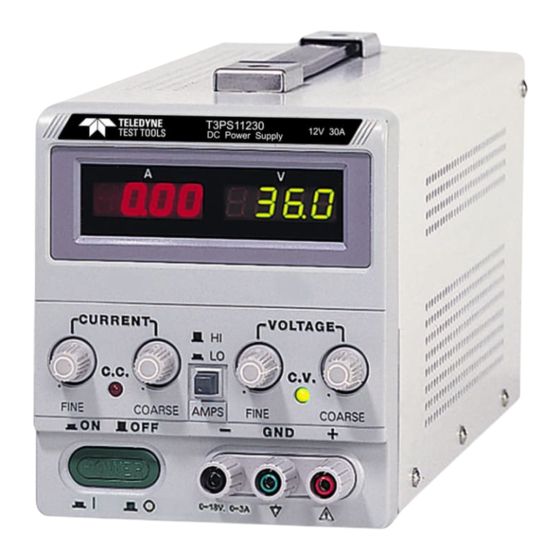

Teledyne T3PS12415 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links









Advertisement

Table of Contents
loading

Related Manuals for Teledyne T3PS12415

Summary of Contents for Teledyne T3PS12415

  • Page 1       ...
  • Page 2 Teledyne LeCroy company. The information in this manual was correct at the time of printing. However, Teledyne LeCroy continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    SAFETY INSTRUCTION Table of Contents SAFETY INSTRUCTION ............ 4 OVERVIEW ..............9 Main Features ............10 Model Differences ..........10 Front Panel Overview ..........11 CV/CC Crossover Characteristics ......13 Rear Panel Overview ..........14 Output Current/Temperature Characteristics ..16 SETUP ................

  • Page 4: Safety Instruction

    T3PS1000 series User Manual AFETY INSTRUCTION This chapter contains important safety instructions that you must follow when operating the T3PS power supply and when keeping it in storage. Read the following before any operation to insure your safety and to keep the power supply in the best possible condition.
  • Page 5 SAFETY INSTRUCTION Safety Guidelines Do not place heavy objects on the power supply. General Guideline  Avoid severe impact or rough handling that  CAUTION may damage the power supply. Avoid discharges of static electricity on or near  the power supply. Use only mating connectors, not bare wires, for ...
  • Page 6 T3PS1000 series User Manual before replacing the fuse. Disconnect the power cord before cleaning the Cleaning the  power supply. power supply Use a soft cloth dampened in a solution of mild  detergent and water. Do not spray any liquid into the power supply.
  • Page 7 SAFETY INSTRUCTION Do not dispose this instrument as unsorted Disposal municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Please make sure discarded electrical waste is properly recycled to reduce environmental impact.
  • Page 8 T3PS1000 series User Manual Power cord for the United Kingdom When using the T3PS in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow:...

  • Page 9: Overview

    OVERVIEW VERVIEW This chapter describes the T3PS series of power supplies, including their main features and front / rear panel introduction. After going through the overview, follow the Setup chapter (page 17) to properly power up and set operation environment. For initial inspection, refer to the Performance adjustment chapter (page27).

  • Page 10: Main Features

    Features  for 230V (195V~265V) High frequency switching power  High power Density  High efficiency (70%)  Constant voltage and constant current operation  Remote output control (on/off)  Model Differences Model name Voltage Current Watts T3PS11230 T3PS12415 T3PS16006...

  • Page 11: Front Panel Overview

    OVERVIEW Front Panel Overview T3PS16006 60V 6A DC Power Supply CURRENT VOLTAGE C.C. C.V. FINE COARSE AMPS FINE COARSE POWER 0~60V, 0~3A The constant voltage indicator C.V. Constant lights up when the power supply voltage indicator is in constant voltage mode. The constant current indicator Constant C.C.
  • Page 12 T3PS1000 series User Manual Positive polarity terminal Positive output terminal Ground terminal Ground terminal Negative polarity terminal Negative output terminal Displays the current output Current Display Displays the voltage output Voltage display Power switch POWER Selects high or low current range. Range selector AMPS...

  • Page 13: Cv/Cc Crossover Characteristics

    OVERVIEW CV/CC Crossover Characteristics T3PS power supplies automatically switch Background between constant voltage mode (CV) and constant current mode (CC), according to the load conditions. When the current level is smaller than C.V. the output setting, T3PS operates in Constant Voltage mode. The C.V. indicator on the front panel turns green.

  • Page 14: Rear Panel Overview

    T3PS1000 series User Manual Rear Panel Overview 115V input: T 10A 250V; 230V DISCONNECT POWER CORD Fuse holder BEFORE REPLACING FUSE input: T 6.3A 250V Power Socket 115V / 230V AC line select AC line select AC LINE SELECT A positive input voltage S+ sense terminal remote sense terminal.
  • Page 15 OVERVIEW Positive output 0 12V OUTPUT 0 30A terminal Ground Negative output terminal Overvoltage protection OVP adjuster O.V.P adjustment Remote control jumper. Remote control terminal Open = Remote output off REMOTE CONTROL Short = remote output on...

  • Page 16: Output Current/Temperature Characteristics

    T3PS1000 series User Manual Output Current/Temperature Characteristics The chart below shows the current output Background characteristics versus temperature. Diagram Current output (%) 100% 0˚ 40˚ 60˚ Environtment temperature (˚C)

  • Page 17: Setup

    SETUP ETUP This chapter describes how to properly power up and configure T3PS before operation. For checking the functionality, refer to the Performance verification chapter, page 27. Installation Location ..........18 Power Up .............. 18 Over Voltage Protection Set Up ......19 Load Cable Connection .........

  • Page 18: Installation Location

    T3PS1000 series User Manual Installation Location Please ensure there is adequate ventilation and Ventilation and that the cooling fan has enough clearance to allow cooling fan clearance adequate airflow. Power Up Press the Power switch to Power On turn on the power. The current and voltage display will light up.

  • Page 19: Over Voltage Protection Set Up

    SETUP Over Voltage Protection Set Up Over Voltage Protection (OVP) protects T3PS and OVP setup DUT from excessive output Voltage. The user sets Background the maximum output voltage limit before operation. When the output voltage exceeds this limit, the output is shut off immediately. 1.

  • Page 20: Load Cable Connection

    T3PS1000 series User Manual Over voltage protection is always on and cannot be Note disabled. The OVP voltage however, can be set to the rating voltage +5.5%. Load Cable Connection Insert the plug into the Standard socket. accessory 1. Turn the terminal Test lead counterclockwise and loose the screw.
  • Page 21 SETUP UL (CSA) Model 1015 TEW Twisted wire Component 11/0.16 17/0.16 21/0.18 34/0.18 26/0.254 41/0.254 65/0.254 65/0.32 pc/mm Cross sectional 0.22 0.34 0.53 0.87 1.32 2.08 3.29 5.23 area (mm Outer diameter 0.64 0.78 0.95 1.21 1.53 2.03 2.35 3.00 Maximum 88.6 62.5...

  • Page 22: Setting The Current Level

    T3PS1000 series User Manual Setting the Current Level The current level must be set each time a new Background current level is needed. 1. Determine the maximum safe current for the Panel operation EUT. 2. Short the positive (+) and negative (-) terminals.

  • Page 23: Setting The Remote Control

    SETUP Setting the Remote Control The T3PS output can be controlled remotely using Background the remote control pins on the rear panel. Remote control pins open. Output Off REMOTE CONTROL Remote control pins shorted. Output On REMOTE CONTROL...
  • Page 24 T3PS1000 series User Manual PERATION Constant Voltage Mode ......... 25 Using the Sense Terminals ........26...

  • Page 25: Operation

    DC Power Supply SPS-606 60V 6A OPERATION Constant Voltage Mode Before voltage can be output, please see page 22 to Background set the current level. CURRENT VOLTAGE 1. Connect the test leads to the EUT Setting step C.C. C.V. with the power off. FINE COARSE AMPS...

  • Page 26: Using The Sense Terminals

    T3PS1000 series User Manual Using the Sense Terminals The sense terminals are used to compensate for the Background voltage drop seen across the test leads during quick changes in current output. Meter side sense terminals. M+, M- Connect the M+ terminal to the + positive output terminal of the power supply.

  • Page 27: Performance Adjustment

    PERFORMANCE ADJUSTMENT ERFORMANCE ADJUSTMENT Overview ............... 28 Equipment ............28 Adjustment Points ..........29 Rating Voltage Adjustment ........30 Rating Current Adjustment ........31...

  • Page 28: Overview

    T3PS1000 series User Manual Overview Performance adjustment checks that the T3PS Background power supply is performing at the correct specification level. Rating Voltage Verification item  Voltage coarse/fine level  Rating Current  Current coarse/fine level  Equipment DCV Accuracy < 0.1% Digital Multimeter ...

  • Page 29: Adjustment Points

    PERFORMANCE ADJUSTMENT Adjustment Points VR301, VR303, Right View VR304 VR301 VR303 VR304 VR1, VR310, VR2 Top View VR310...

  • Page 30: Rating Voltage Adjustment

    3. Adjust VR301 so that the OUTPUT OUTPUT multimeter matches the following values ON / OFF ON / OFF T3PS11230 12.5V T3PS12415 24.5V T3PS16006 60.50V 4. Adjust VR2 so that the voltage value of the voltage display matches the voltage shown in the multimeter.

  • Page 31: Rating Current Adjustment

    PERFORMANCE ADJUSTMENT Rating Current Adjustment Connection T3PS series T3PS16006 60V 6A DC Power Supply Digital Multimeter (Rear) 1. Press the AMPS key to set the Verification step current range to high. 2. Turn the current coarse and fine knobs fully ant- CURRENT clockwise to the minimum positions.
  • Page 32 C.C. FINE COARSE 8. Adjust VR303 so that the multimeter displays the following values. T3PS11230 30.1A T3PS12415 15.1A T3PS16006 6.10A 9. Adjust VR2 so that the current value of the ammeter display matches the current shown in the multimeter. 10. Press the AMPS key to set the current range to low.

  • Page 33: Appendix

    APPENDIX PPENDIX Fuse Replacement 1. Take off the power cord and remove the fuse Step socket using a minus driver. 2. Replace the fuse in the holder. Line Voltage 230V T 10A 250V Rating Line Voltage 115V T 6.3A 250V...

  • Page 34: Specification

    T3PS1000 series User Manual Specification 11230 12415 16006 T3PS Max rating Max Voltage Max Current Input rating Watts T 10A 250V Fuse 230V T 6.3A 250V 115V 3.3 kg Weight 128(W)x145(H)x285(D)mm Dimensions Indoor, Altitude up to 2000m, Operation Installation Category II, Environment Pollution degree 2 0˚...
  • Page 35 APPENDIX 0 to rating current (adjustable) Constant Current Output current ≤ 3mA Line regulation ≤ 10mA Load regulation ≤ 30m Arms ≤ 10m Arms ≤ 3mA rms Ripple and Noise 3 1/2 Digits 0.39” Green LED Indicator Meter Voltage display display Voltage Accuracy ±(0.5% of rdg + 2 digits) 3 1/2 Digits 0.39”...

  • Page 36: Index

    T3PS1000 series User Manual NDEX Caution symbol ......4 symbol ..........4 Cleaning the instrument ..... 6 list of features ......10 constant current mode ....13 load connection constant voltage mode ..13, 25 procedure ........20 cooling fan ........18 wire type ........
  • Page 37    !"                  "     )        #   #        %     #       ...
