  • Page 2 Teledyne LeCroy company. The information in this manual was correct at the time of printing. However, Teledyne LeCroy continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Table of Contents SAFETY INSTRUCTION ............ 4 OVERVIEW ..............8 T3PS36006 Main Features ........9 Front Panel Overview ..........10 Rear Panel Overview ..........13 SETUP ................14 Installation Location ..........15 Power Up ............... 16 Over Voltage Protection Setup ....... 17 Load Cable Connection ..........

  • Page 4: Safety Instruction

    T3PS36006. Safety Symbols These safety symbols may appear in this manual or on T3PS36006. Warning: Identifies conditions or practices that WARNING could result in injury or loss of life.

  • Page 5: Safety Guidelines

    Do not discharge static electricity to T3PS36006.  Do not block or obstruct the cooling fan vent  opening. Leave a space around T3PS36006, at least 3cm to  the left and right. Do not perform measurement at circuits directly ...
  • Page 6 Temperature: 0°C to 40°C  (Pollution Degree) EN 61010-1:2010 specifies the pollution degrees and their requirements as follows. T3PS36006 falls under degree 2. Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.
  • Page 7 SAFETY INSTRUCTION Power cord for the United Kingdom When using T3PS36006 in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED...
  • Page 8 T3PS36006 Quick Start Guide VERVIEW This chapter describes T3PS36006 in a nutshell, including its main features and front / rear panel introduction. After going through the overview, follow the Setup chapter (page 14) to properly power up and set operation environment.

  • Page 9: Overview

    OVERVIEW T3PS36006 Main Features Low noise (≤ 50dB, Cooling fan controlled by Performance  Heatsink temperature) High efficiency power conversion, minimum  70% with full load Fast Output On/Off response (≤100ms)  Low temperature coefficient  (≤100ppm/°C+3mV, ≤150ppm/°C+3mA) Compact size, light weight (6kg) ...

  • Page 10: Front Panel Overview

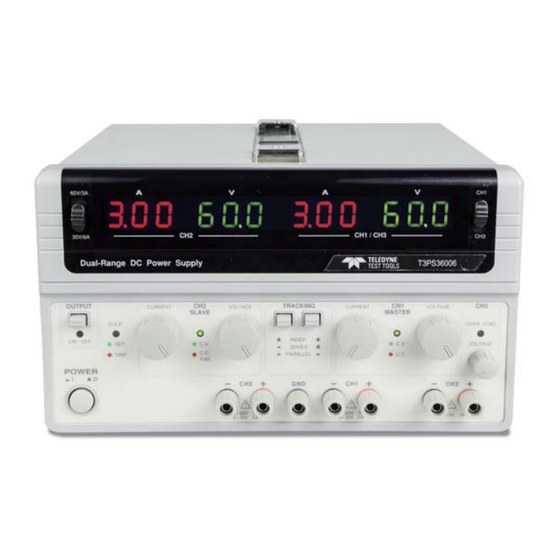

    T3PS36006 Quick Start Guide Front Panel Overview Tracking Mode Output Range CH2 Meter CH1/3 Meter CH1/CH3 Switches Switch Meter Switch 60V/3A 30V/6A CH1 / CH3 Dual-Range DC Power Supply T3PS36006 Output CH3 Overload Indicator CURRENT CURRENT VOLTAGE VOLTAGE OUTPUT TRACKING...
  • Page 11 OVERVIEW CH Activates and selects the tracking Tracking mode TRACKING mode. switches INDEP. SERIES PARALLEL Independent Tracking Series Tracking Parallel Displays Channel 1 or Channel 3 current (A) and CH1/3 meter + voltage (V). The switch on the right selects the switch channel 1 (up) or 3 (down).
  • Page 12 T3PS36006 Quick Start Guide Turns green when operating in Channel 1 Constant Voltage (CV) mode, red CV/CC indicator C.V. in Constant Current (CC) mode. C.C. Independent mode: Channel 2 Turns green in Constant Voltage CV/CC/PAR C.V. indicator (CV) mode, red in Constant C.C.

  • Page 13: Rear Panel Overview

    OVERVIEW Rear Panel Overview Power Cord / Remote Control OVP Setting Cooling Fan Fuse Socket Terminal Point NORAL O.V.P. SET WARNING C1 C C3 DISCONNECT POER CORD EFORE REPLACING FUSE REPLACE FUSE AS SPECIFIED FUSE RATING 115V T10A 50V 30V ATTS VA A...

  • Page 14: Setup

    T3PS36006 Quick Start Guide ETUP This chapter describes how to properly power up and configure T3PS36006 before the operation. Installation Location ..........15 Power Up .............. 16 Over Voltage Protection Setup ......17 Load Cable Connection ......... 19 Output On/Off ............20...

  • Page 15: Installation Location

    SETUP Installation Location Ventillation space Leave at least 3cm around T3PS36006, to the left and right. > 3cm > 3cm The cooling fan is located on the rear panel. Cooling fan Allocate extra space on the back of T3PS36006 so...

  • Page 16: Power Up

    T3PS36006 Quick Start Guide Power Up Press the Power switch to Power On turn On the power. The CH1/CH2 indicators and meters turn On. CURRENT CURRENT VOLTAGE VOLTAGE MASTER SLAVE C.V. C.V. C.C. C.C. PAR. CURRENT CURRENT VOLTAGE VOLTAGE MASTER SLAVE C.V.

  • Page 17: Over Voltage Protection Setup

    SETUP Over Voltage Protection Setup Over Voltage Protection (OVP) protects T3PS36006 Background and DUT from excessive output Voltage. The user sets the maximum output voltage limit before operation. When the output voltage exceeds this limit, the indicator shows the over voltage status and the output is shut off immediately.
  • Page 18 T3PS36006 Quick Start Guide * When setting the OVP for channel 3, select CH3 meter using the CH1/CH3 meter switch. 5. When finished, slide the rear panel switch to the “Normal” NORAL O.V.P. Set position. The OVP indicator on C1 C...

  • Page 19: Load Cable Connection

    SETUP Load Cable Connection 1. Turn the terminal Standard counterclockwise and accessory (GTL-104) loose the screw. 2. Insert the cable terminal. 3. Turn the terminal clockwise and tighten the screw. Insert the plug into the Banana plug socket. When using load cables other than the attached, Wire type make sure they have enough current capacity for minimizing cable loss and load line impedance.

  • Page 20: Output On/Off

    T3PS36006 Quick Start Guide Output On/Off Panel operation Pressing the Output key once OUTPUT OUTPUT Turns On the output, all channels 1/2/3 at once. ON / OFF ON / OFF Pressing again turns Off the OUTPUT OUTPUT output. ON / OFF...
  • Page 21 SETUP Red CV/CC indicator when OUTPUT CV/CC red output Off indicates internal C.V. without output error. Contact the service center. C.C. ON / OFF...

  • Page 22: Appendix

    T3PS36006 Quick Start Guide PPENDIX Specification 0 ~ 30V / 0 ~ 6A Output Ratings CH1/CH2 Independent 0 ~ 60V / 0 ~ 3A 0 ~ 60V / 0 ~ 6A CH1/CH2 0 ~ 120V / 0 ~ 3A Series...
  • Page 23 APPENDIX ≤ 100ms (≤95% rating load) Output On/Off Voltage Up Response Time (10% ~ 90%) ≤ 100ms (≥10% rating load) Voltage Down (90% ~ 10%) ± (0.5% of reading + 0.5V) Accuracy 3 ½ digits 0.5" LED display Meter Type ±...
  • Page 24    !"                  "     )        #   #        %     #       ...
