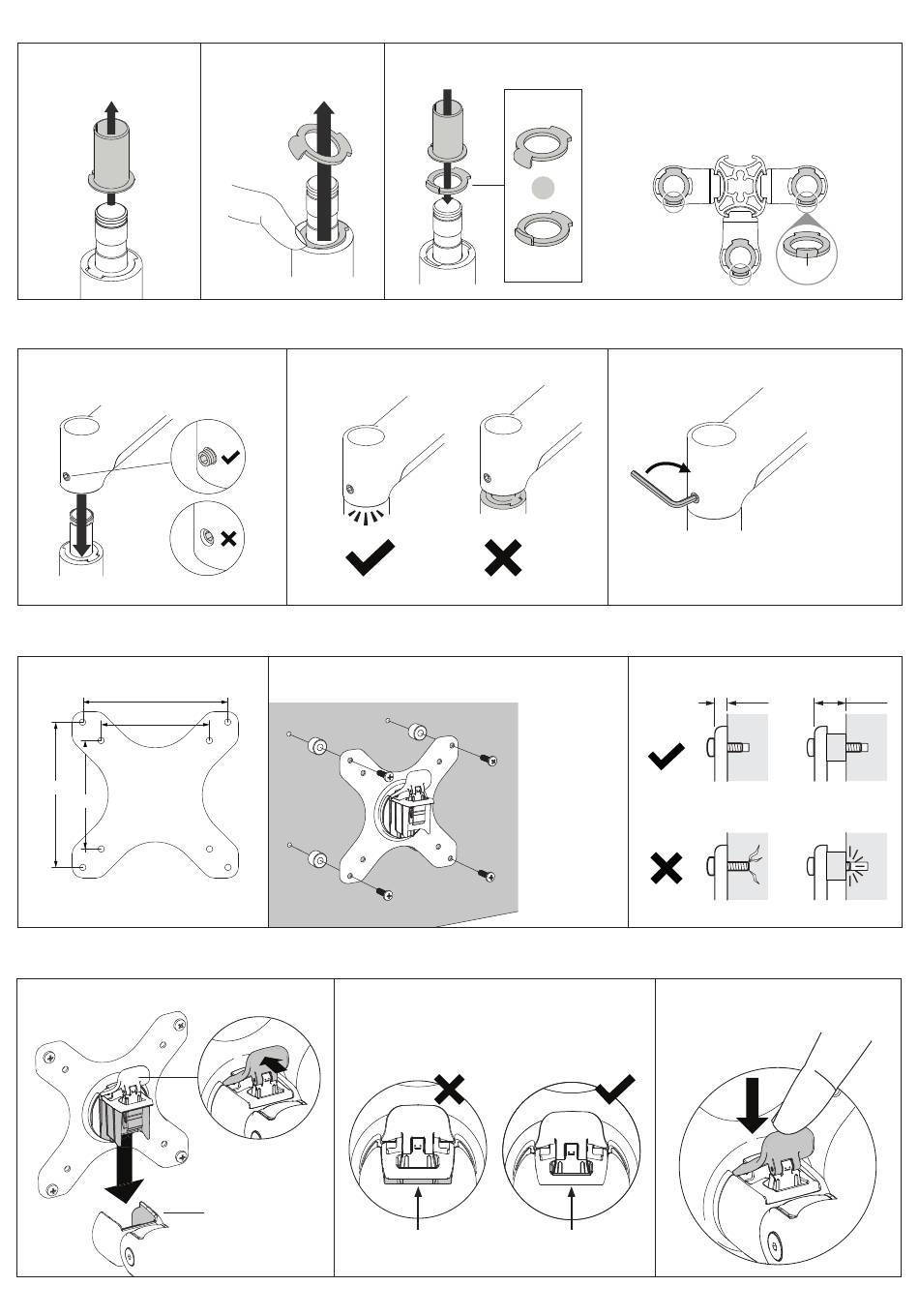

Atdec AWMS-DW6 Installation Manual page 5

1. Set arm rotation to 180° (optional)
1.1 On the Base or Channel
Clamp (sold separately)
Remove plastic sleeve.
2. Fit arm onto Base or Channel Clamp (sold separately)
2.1 Push arm onto shaft.
3. Attach VESA head to monitor
3.1 VESA mounting compatibility
100mm
75mm
100mm
75mm
Note: For other sizes, use a suitable
adaptor plate (sold separately).
4. Mount monitor on arm
4.1 Insert VESA head into the monitor arm
1.2 Remove rotation ring.
2. Lift
1. Press
2.2 Ensure arm is fully pushed onto shaft.
3.2 Attach VESA head onto monitor with
provided screws.
4.2 Ensure that the VESA head sits flush within
the monitor arm. There should be no gap.
Monitor arm
1.3 Place rotation ring in the
desired position.
Default
Position
360°
OR
180°
Flipped
Position
Note:
Spacers may
be required
for curved,
recessed
or uneven
monitor
surfaces.
Gap No Gap
Channel Clamp Ring Position
When setting channel clamp rotation,
orientate the ring depending on what
post channel the arm will be attached
to. The tag on the ring should always
face towards the user.
Tag
2.3 Tighten joint screw.
Note: Check the
arm rotation is
smooth after
tightening.
3.3 Be sure to use correct screw length
5mm
Flush
Too long
4.3 Push the lever down to secure
it to the arm assembly
AWMS-DW6 | Page 5 of 7
12mm
Spacer
Too short
