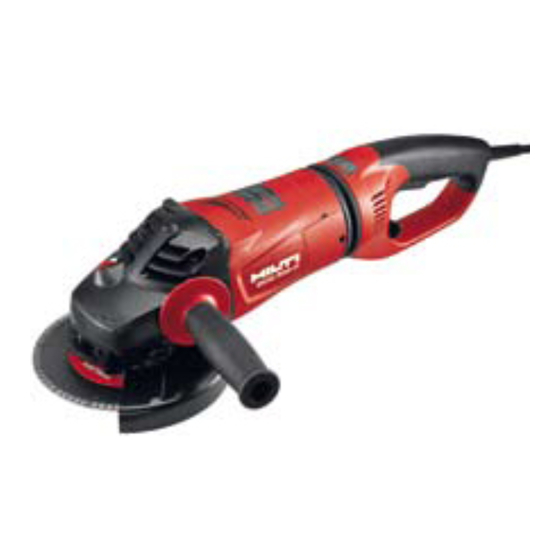

DCG 700-P
English
Printed: 29.03.2018 | Doc-Nr: PUB / 5164458 / 000 / 01

Advertisement

loading
Need help?

Need help?

Do you have a question about the DCG 700-P and is the answer not in the manual?

Questions and answers

Related Manuals for Hilti DCG 700-P

Summary of Contents for Hilti DCG 700-P

  • Page 1 DCG 700-P English Printed: 29.03.2018 | Doc-Nr: PUB / 5164458 / 000 / 01...
  • Page 2 Printed: 29.03.2018 | Doc-Nr: PUB / 5164458 / 000 / 01...
  • Page 3 Information about the documentation About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...
  • Page 4 ▶ Make a note of the designation and serial number printed on the identification plate in the following table. ▶ Always quote this information when you contact a Hilti representative or Hilti Service to enquire about the product.
  • Page 5 ▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. ▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
  • Page 6 ▶ Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. ▶ The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool.
  • Page 7 ▶ Do not use the power tool if it starts suddenly or with a jolt. This may indicate a fault in the electronics. Have the power tool repaired by Hilti Service right away. ▶ Apply appropriate safety measures at the opposite side of the workpiece in work that involves breaking through.
  • Page 8 ▶ Grinding discs must be stored and handled carefully in accordance with the manufacturer’s instructions. ▶ Have the tool checked by Hilti Service after breakage of a disc, if the tool has been dropped or has fallen, or in the event of other mechanical damage.
  • Page 9 Description Overview of the product Spindle lockbutton Clamping flange § Threaded bushing for the side handle Hood Side handle Adjusting screw Release lever for pivot able side handle Clamping lever ∙ On/off switch Spindle & Wrench Keyed locating lug £ Clamping nut Steadying rib Abrasive cutting disc / abrasive grinding...
  • Page 10 Items supplied Angle grinder, guard, side handle, clamping flange, clamping nut, wrench and operating instructions. Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group | USA: www.hilti.com Starting current limitation The electronic starting current limiter reduces the starting current drawn by the power tool and thus prevents the mains fuse blowing.
  • Page 11 Discs Application Designation Material Abrasive cutting disc Cutting, slitting AC­D Metal Diamond cutting disc Cutting, slitting DC­D Mineral Abrasive grinding disc Rough grinding AG­D, AF­D, AN­D Metal Diamond grinding disc Rough grinding DG­CW Mineral Suitability of discs for the equipment used Equipment AC­D AG-D...
  • Page 12 1. Release the clamping lever. 2. Fit the guard onto the spindle collar so that the keyed locating lug engages in the recess provided. 3. Rotate the guard to the required position. 4. Secure the guard by closing the clamping lever. The guard is already set to the correct tension by way of the adjusting screw.
  • Page 13 Diamond discs must be replaced when their cutting or grinding performance drops significantly. This generally is the case when the diamond segments reach a height of less than 2 mm (1/16"). Other discs must be replaced when their cutting performance drops significantly or other parts of the angle grinder (not the disc) come into contact with the material you are working on.
  • Page 14 Adjusting the side handle WARNING Risk of injury. If the grip position is adjusted while the tool is in operation it is no longer possible to hold the tool in a stable position, resulting in a risk of accident. ▶ Do not, under any circumstances, attempt to adjust the grip while the tool is running. ▶...
  • Page 15 Check electric tools or appliances for damage after long periods of transport or storage. Troubleshooting If the trouble you are experiencing isn’t listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. Trouble or fault Possible cause Action to be taken The power tool doesn’t start.
  • Page 16 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
