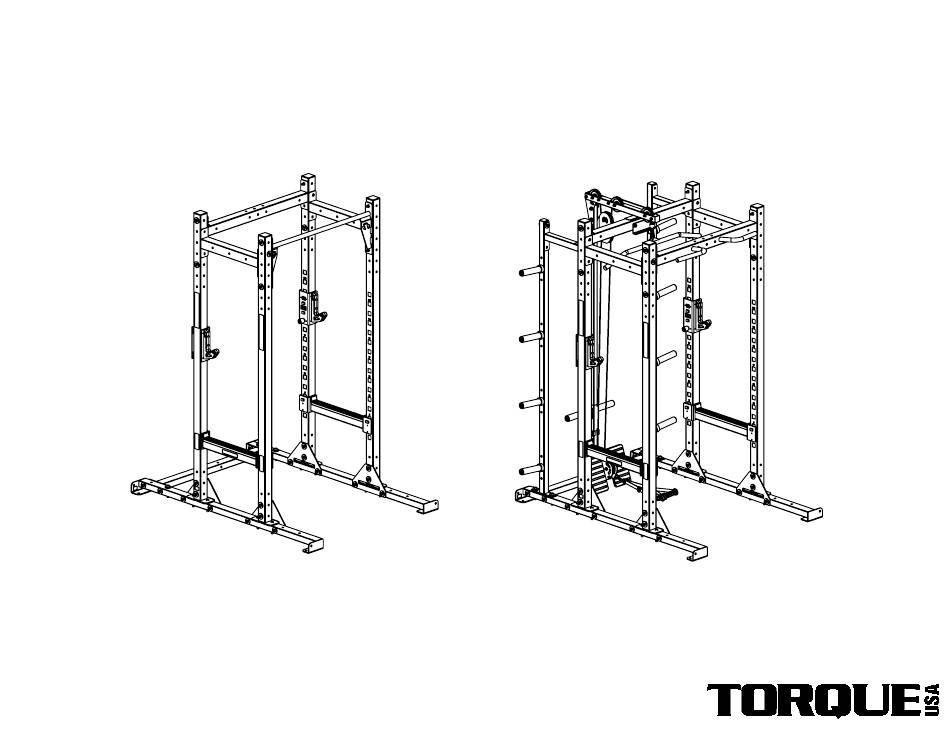

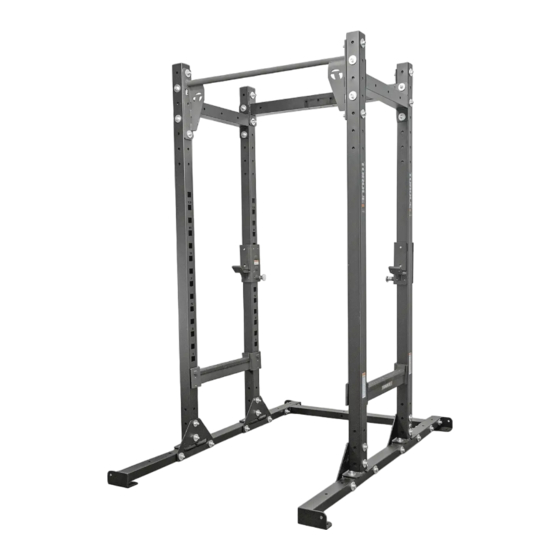

- Page 1 X-GYM POWER RACK ASSEMBLY GUIDE VERSION: XGYM-PR24 PART #: 5876001-B XGYM-PR24-1.0 XGYM-PR24-9.0...
- Page 2 5360001 LABEL, SERIAL-MARKING 56260PA PTD ASSY, UNIVERSAL HEAVY BAG MOUNT 5442801 WLDMT, 4' SINGLE CROSS HBT-100LB-45.4KG HEAVY BAG, TORQUE 100LB (45.4KG) 58207PA PTD ASSY, XGYM 4FT MULTI GRIP CROSS 5715701 FINAL ASSY, RELENTLESS ROPE TRAINER 57424PA ASSY, LOW PULLEY 5706901...
- Page 3 Children and pets must not be allowed near this machine. Supervise teenagers. This product is not a toy. • If unsure of proper use of this product, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm CST). www.service@torquefitness.com Important Safety Instructions for Assembling Equipment •...
- Page 4 If any items are missing, page. To correctly measure the bolts, measure connections that should be securely tightened, contact Torque Fitness Customer service at: from underneath the bolt head to the end of the while secondary connections need to be loosen 763-754-7533 (8:30 am - 5:00 pm CST).
- Page 5 STEP 1 NOTE: LOOSELY tighten bolt connections in this step.
- Page 6 STEP 2 NOTE: LOOSELY tighten bolt connections in this step.
- Page 7 STEP 3 NOTE: LOOSELY tighten bolt connections in this step.
- Page 8 STEP 4 NOTE: LOOSELY tighten bolt connections in this step.
- Page 9 STEP 5 NOTE: LOOSELY tighten bolt connections in this step.
- Page 10 STEP 6 LONGER END MUST BE POSITIONED ON THE 3.4 in TOP SIDE. 2.5 in NOTE: CROSS MUST BE MOUNTED AS SHOWN. LONGER PLATE SIDE MUST BE UP. LOOSELY tighten bolt connections in this step.
- Page 11 STEP 7A NOTE: THE STANDARD SINGLE CROSS AND RECTANGLE OPTIONAL NINJA CROSS CROSS IS SHOWN FOR ASSEMBLY. THE OPTIONAL NINJA CROSS, DOUBLE CROSS AND TRIPLE CROSS ASSEMBLE TO THE UNIT THE EXACT SAME WAY. IF YOU PURCHASED THE OPTIONAL MULTI GRIP CROSS, PLEASE REFER TO NEXT PAGE FOR ASSEMBLY.
- Page 12 STEP 7B (OPTIONAL MULTI GRIP CROSS) 3.4 in NOTE: MOUNT MULTI GRIP WITH LONGER PLATE END UP. 2.5 in NOTE: SECURELY tighten all bolt connections in this step and previous steps.
- Page 13 STEP 8 (BAR CATCHES) INSERT BAR CATCHES INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE TO REMOVE BAR CATCHES FROM UPRIGHTS, LIFT UP AND PULL OUT...
- Page 14 STEP 9 (OPTIONAL BAR SUPPORTS) INSERT BAR SUPPORTS INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE NOTE: WARNING LABEL TO REMOVE BAR SUPPORTS FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK. LIFT UP AND PULL OUT...
- Page 15 STEP 10 (OPTIONAL VERTICAL WEIGHT STORAGE) NOTE: LOOSELY tighten bolt connections in this step.
- Page 16 STEP 11 (OPTIONAL VERTICAL WEIGHT STORAGE) NOTE: UPRIGHT CONNECTOR IS SHOWN IN ASSEMBLED POSITION (2X) NOTE: SECURELY tighten all bolt connections in this step and previous steps.
- Page 17 STEP 12 (OPTIONAL GROUND ROTATIONAL TRAINER) NOTE: SECURELY tighten all bolt connections in this step.
- Page 18 STEP 13 (OPTIONAL BATTLE ROPE ANCHOR) NOTE: SECURELY tighten all bolt connections in this step.
- Page 19 STEP 14A & 14B (OPTIONAL BALL TARGET) LOOSEN AND REMOVE RE-USE WASHERS BOLTS, WASHERS AND AND NUTS FROM NUTS. PREVIOUS STEP NOTE: DISCARD BOLTS NOTE: USE NEW BOLTS NOTE: SECURELY tighten all bolt connections in this step.
- Page 20 STEP 15A & 15B (OPTIONAL UPPER BAND PEG ATTACHMENT) LOOSEN AND REMOVE REUSE BOLTS, WASHERS, AND BOLTS, WASHERS AND NUTS FROM PREVIOUS STEP NUTS. NOTE: SECURELY tighten all bolt connections in this step.
- Page 21 STEP 16A & 16B (OPTIONAL ENDLESS ROPE TRAINER) RE-USE BOLTS, WASHERS AND NUTS FROM PREVIOUS STEP LOOSEN AND REMOVE BOLTS, WASHERS AND NUTS NOTE: SECURELY tighten all bolt connections in this step.
- Page 22 STEP 16C (OPTIONAL ENDLESS ROPE TRAINER) NOTE: SECURELY tighten all bolt connections in this step.
- Page 23 STEP 17A & 17B (OPTIONAL UNIVERSAL HEAVY BAG MOUNT) LOOSEN AND REMOVE BOLTS, RE-USE BOLTS, WASHERS AND NUTS WASHERS AND NUTS FROM PREVIOUS STEP NOTE: SECURELY tighten all bolt connections in this step.
- Page 24 STEP 17C (OPTIONAL UNIVERSAL HEAVY BAG MOUNT)
- Page 25 STEP 18A AND 18B (OPTIONAL DOUBLE PLAY ATTACHMENT) RE-USE BOLTS, LOOSEN AND WASHERS AND REMOVE BOLTS, NUTS FROM WASHERS AND NUTS PREVIOUS STEP NOTE: SECURELY tighten all bolt connections in this step.
- Page 26 STEP 19A AND 19B (OPTIONAL VERTICAL DUMBBELL STORAGE WITH VERTICAL WEIGHT STORAGE) NOTE: NOTE: BOLTS MUST BE BOLTS MUST BE INSTALLED IN INSTALLED IN THIS DIRECTION THIS DIRECTION NOTE: SECURELY tighten all bolt connections in this step.
- Page 27 STEP 20 (OPTIONAL HIGH LOW CABLE ATTACHMENT)
- Page 28 STEP 20A (OPTIONAL HIGH LOW CABLE ATTACHMENT) NOTE: LOOSELY tighten all bolt connections in this step.
- Page 29 STEP 20B (OPTIONAL HIGH LOW CABLE ATTACHMENT) NOTE: LOOSELY tighten all bolt connections in this step.
- Page 30 STEP 20C (OPTIONAL HIGH LOW CABLE ATTACHMENT) CAREFULLY SLIDE CARRIAGE OVER UPRIGHT CARRIAGE...
- Page 31 STEP 20D (OPTIONAL HIGH LOW CABLE ATTACHMENT) NOTE: CARRIAGE DIRECTION AND POSITION MUST BE AS SHOWN NOTE: SECURELY tighten all bolt connections in this step.
- Page 32 STEP 20E (OPTIONAL HIGH LOW CABLE ATTACHMENT) 2) SLIDE OFF CABLE END 3) PULL OFF CABLE END 1) REMOVE SCREWS 4) SLIDE OFF CABLE END TO START: NOTE: THREAD JAM NUT ON TO BEFORE ROUTING CABLES CABLE END. REMOVE BOTH CABLE END THREAD CABLE END ASSEMBLIES SHOWN ABOVE.
- Page 33 STEP 20F (OPTIONAL HIGH LOW CABLE ATTACHMENT) 1) SLIDE OVER CABLE END 4) ASSEMBLE 27 TO 28 2) SLIDE OVER CABLE END 3) SLIDE OVER CABLE END CABLE END VIEW NOTE: SECURELY tighten all bolt connections in this step.
- Page 34 STEP 20G (OPTIONAL HIGH LOW CABLE ATTACHMENT) 3) SLIDE OVER CABLE END 2) SLIDE OVER CABLE END 4) ASSEMBLE 27 TO 28 1) SLIDE OVER CABLE END CABLE END VIEW NOTE: SECURELY tighten all bolt connections in this step.
- Page 35 STEP 20H (OPTIONAL HIGH LOW CABLE ATTACHMENT) NOTE: If there is a gap between the carriage and the stop, loosen jam nut and turn threaded end clockwise until the head plate touches the first plate. SECURELY tighten jam nut To add tension to the cable, turn the threaded end counter clockwise.
- Page 36 STEP 20I PLATE LOADING NOTE: ALWAYS USE LOCK COLLAR NOTE: LOAD PLATES EVENLY AS POSSIBLE ON BOTH SIDES...
- Page 37 STEP 19G FOR ADJUSTING CABLE TENSION) FRAME: Wipe down and damp cloth. GRIPS: Inspect and replace if they appear worn or damaged. For customer service contact Torque Fitness Customer service at: 763-754- 7533 (8:30 am - 5:00 pm CST). or www.service@torquefitness.com...
- Page 38 STEP 21 (OPTIONAL BAR CATCHES) INSERT BAR CATCHES INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE NOTE: WARNING LABEL TO REMOVE BAR CATCHES FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK. LIFT UP AND PULL OUT...
- Page 39 STEP 22 (OPTIONAL DIP ATTACHMENT) INSERT DIP ATTACHMENTS INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE NOTE: WARNING LABEL TO REMOVE DIP ATTACHMENTS FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK. LIFT UP AND PULL OUT...
- Page 40 MAINTENANCE: • NUTS/BOLTS: Inspect periodically, tighten and/or adjust as needed. FRAME: Wipe down frame with a damp cloth. • Torque Fitness 11201 Xeon Street NW Ste 101 Coon Rapids, MN USA 55448 GENERAL WARNING LABEL www.torquefitness.com 763-754-7533 (8:30 am – 5:00 CST).
