- Page 1 USER MANUAL ENGLISH Cedda 200W LED Floodlight Product code: 31412 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Cedda 200W LED Floodlight Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Cedda 200W LED Floodlight Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Product Lifespan ..............................3 LEDs Lifespan ............................... 3 Text Conventions ..............................4 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety .................................. -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Cedda 200W LED Floodlight with IP54 power cable with Schuko plug + Schuko socket (6 m) ● User manual Fig. -
Page 5: Text Conventions
Cedda 200W LED Floodlight Text Conventions Throughout the user manual the following text conventions are used: ● Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons” ● References: References to chapters and parts of the device are in bold lettering, for example: “Refer to 2. -
Page 6: Safety
Cedda 200W LED Floodlight Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions DANGER Danger for children For adult use only. - Page 7 Cedda 200W LED Floodlight WARNING Risk of burns due to hot surface The surface and the inner parts of the device can become very hot during operation. ● Do not touch the device during operation. ● Allow the device to cool down for at least 15 minutes before handling. Attention Power supply ●...
-
Page 8: Requirements For The User
Cedda 200W LED Floodlight Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. ●... -
Page 9: Description Of The Device

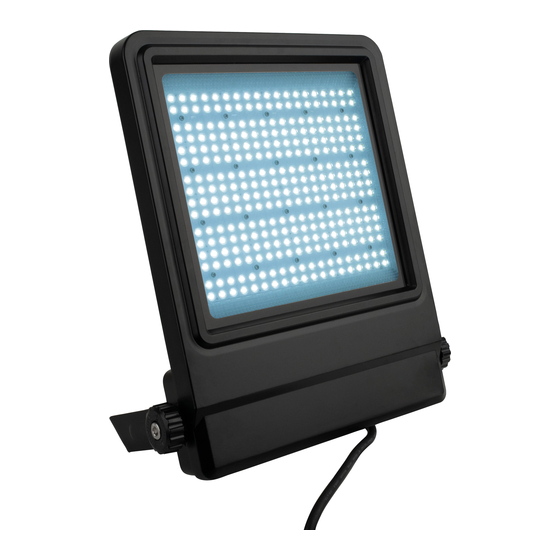

Description of the Device Showtec’s Cedda 200W LED Floodlight is a floodlight with 320 x 0,4 watt LEDs that produces a total of 24.000 lm at a color temperature of 4200 K. The device can be installed with a clamp or can be mounted on a wooden or concrete wall. -
Page 10: Back
Cedda 200W LED Floodlight Back Fig. 03 07) Cooling fins Product code: 31412... -
Page 11: Product Specifications
Cedda 200W LED Floodlight Product Specifications Model: Cedda 200W LED Floodlight Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 200 W Physical: Dimensions: 495 x 365 x 60 mm (L x W x H) Weight: 6,2 kg Optics: Light source: 320 x NW (0,4 W) LEDs Lumen:... -
Page 12: Dimensions
Cedda 200W LED Floodlight Dimensions Fig. 04 Product code: 31412... -
Page 13: Installation And Operation
Cedda 200W LED Floodlight Installation and Operation Safety Instructions WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. Attention Power supply Before connecting the device to the power supply, make sure that the current, voltage and frequency... -
Page 14: Mounting
Cedda 200W LED Floodlight Mounting The device can be mounted to a truss or other rigging structure in any orientation or can be mounted to a wall. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during rigging and/or derigging. -
Page 15: Installation On A Wall
Cedda 200W LED Floodlight Installation on a Wall To install the device, follow the steps below: 01) Turn the torx T40 counterclockwise to loosen the 2 hex screws inside the 2 adjustment screws (06) . (Fig. 07). 02) Remove the 2 adjustment screws (06). The device and the mounting bracket (03) will disconnect. 03) Hold the mounting bracket (03) against the wall and mark the mounting locations (Fig. -
Page 16: Drilling Into Wood
Cedda 200W LED Floodlight 07) Insert the 2 adjustment screws (06) to connect the device to the mounting bracket (03). 08) Turn the 2 adjustment screws (06) clockwise to tighten them (Fig. 11). Fig. 11 Drilling into Wood If you drill into wood, use hardwood drill bits. Predrill before inserting screws, to remove drill dust and to avoid damaging of the wood. -
Page 17: Angle Adjustment
Cedda 200W LED Floodlight Angle Adjustment You can adjust the angle of the device with the adjustment screws (06). 01) Turn the adjustment screws (06) counterclockwise to release them. 02) Tilt the device to the desired angle (Fig. 14). 03) Turn the adjustment screws (06) clockwise to tighten them. Make sure that the device cannot move freely. -
Page 18: Power Linking Of Multiple Devices
Cedda 200W LED Floodlight Power Linking of Multiple Devices This device supports power linking. Power can be relayed to another device via the Schuko socket. Power linking of multiple devices must be carried out only by instructed or skilled persons. WARNING Incorrect power linking may lead to overload of the electrical circuit and result in serious injuries and damage of property. -
Page 19: Maintenance
Cedda 200W LED Floodlight Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ●... -
Page 20: 6.2.2. Draining Condensation Water
Cedda 200W LED Floodlight 6.2.2. Draining Condensation Water The Cedda 200W LED Floodlight is IP54 rated. The device can resist water splashes. If the device is exposed to extreme humid conditions during servicing, condensation may collect inside the device. This can happen also during transportation, if the device is exposed to extreme temperature variations. -
Page 21: Deinstallation, Transportation And Storage
Cedda 200W LED Floodlight Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 22 Cedda 200W LED Floodlight Product code: 31412...
- Page 23 Cedda 200W LED Floodlight Product code: 31412...
- Page 24 ©2023 Showtec...
