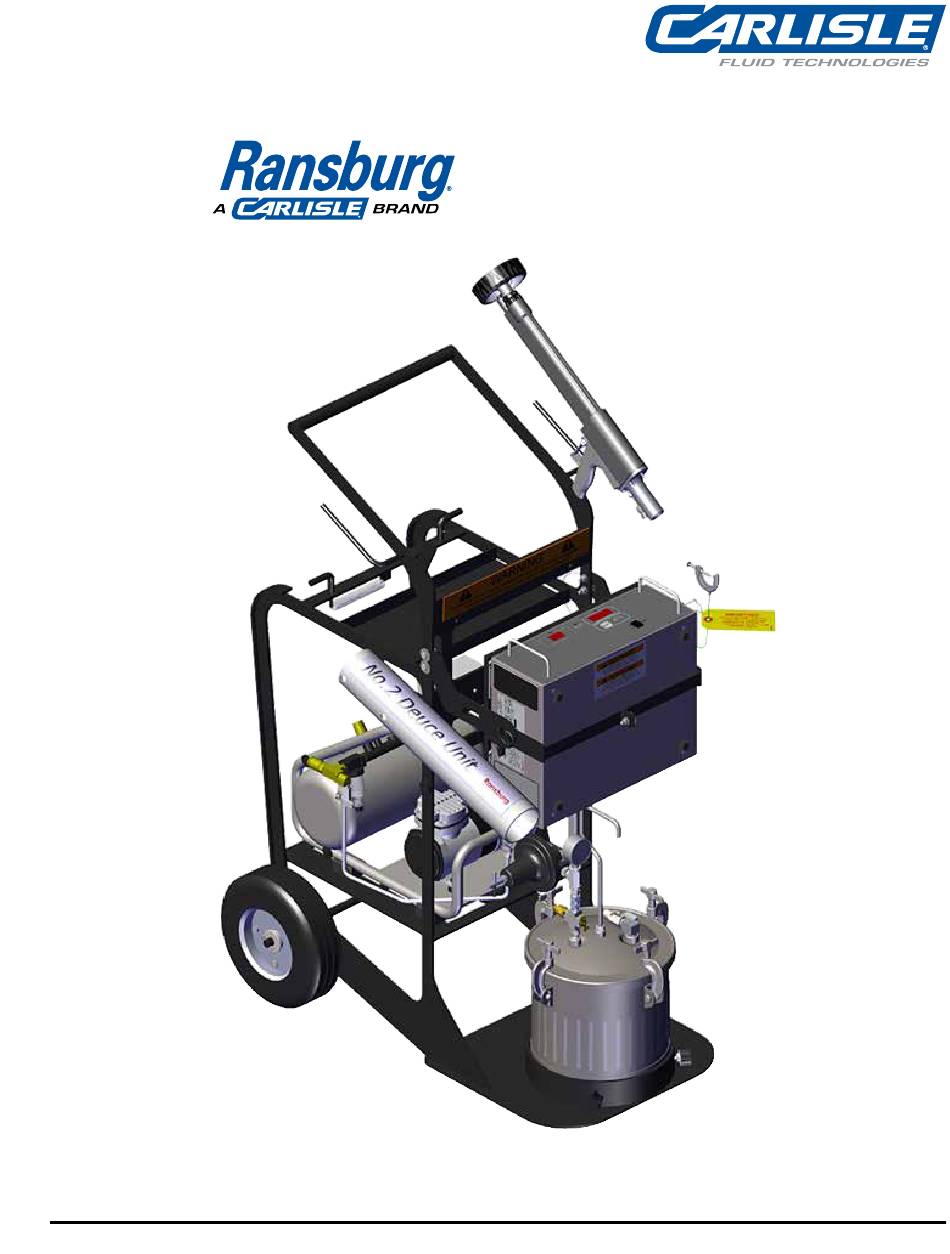

- Page 1 SERVICE MANUAL Deuce Cart Package Model 79297 AH-22-01-R1 (5/2023) 1 / 18 www.carlisleft.com...
- Page 2 MANUAL CHANGES NOTE: This manual has been changed from SI-04-02.8 and replaced by AH-22-01. AH-22-01-R1 (5/2023) 2 / 18 www.carlisleft.com...
-
Page 3: Table Of Contents
CONTENTS CONTENTS SAFETY: Safety Precautions ............................4 Hazards / Safeguards ............................5 INTRODUCTION: Description ............................... 9 79297 Deuce Cart Package Options ........................9 INSTALLATION: Power Supply Mounting Instructions ......................... 10 Mounting Power Supply to Cart - Diagram ......................10 OPERATION: 11-12 Preperation .............................. -
Page 4: Safety
If you do not have the manuals and safety literature for your equipment, contact your local Carlisle Fluid Technologies representative or Carlisle Fluid Technol- ogies technical support. -
Page 5: Hazards / Safeguards
SAFETY AREA SAFEGUARDS HAZARD Tells where hazards Tells how to avoid the hazard. Tells what the hazard is. may occur. Spray Area Fire Hazard Fire extinguishing equipment must be present in the Improper or inadequate operation spray area and tested periodically. and maintenance procedures will cause a fire hazard. - Page 6 SAFETY AREA SAFEGUARDS HAZARD Tells where hazards Tells how to avoid the hazard. Tells what the hazard is. may occur. Spray Explosion Hazard Area Improper or inadequate operation Electrostatic arcing must be prevented. Safe sparking and maintenance procedures will distance must be maintained between the parts being cause a coated and the applicator.
- Page 7 SAFETY AREA SAFEGUARDS HAZARD Tells where hazards Tells how to avoid the hazard. Tells what the hazard is. may occur. Electrical Discharge Spray Area / High Voltage Parts being sprayed and operators in the spray area must be There is a high voltage device Equipment properly grounded.
- Page 8 SAFETY AREA SAFEGUARDS HAZARD Tells where hazards Tells how to avoid the hazard. Tells what the hazard is. may occur. Electrical Discharge Electrical Equipment High voltage equipment is Unless specifically approved for use in hazardous locations, utilized in the process. Arcing the power supply, control cabinet, and all other electrical in the vicinity of flammable or equipment must be located outside or applicable country...
-
Page 9: Introduction

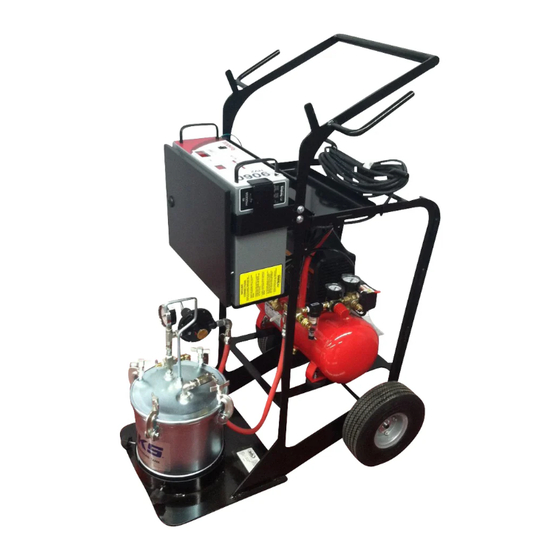

INTRODUCTION INTRODUCTION DESCRIPTION The deuce cart is a self contained unit on wheels and can be frames, patio furniture, window extrusions, guard railings, transported and used in remote areas. It is a portable way steel roofing, conductive glass coatings, farm implements, to supply material and store the No. -
Page 10: Installation
INSTALLATION INSTALLATION POWER SUPPLY MOUNTING INSTRUCTIONS Assemble U-brackets around power supply with the supplied NOTE hardware and tighten till the power supply is free of movement between the U-brackets. Assure the cart frame mounting † Follow instruction for assembly of power supply brackets are mounted tight againt the cart frame. -
Page 11: Operation
OPERATION OPERATION PREPERATION 1. Attach the supplied power-supply ground cable to a 2. Attach the supplied cart frame ground cable to a known known good Earth ground source. The same ground good Earth ground source. The same ground source can source can be used to ground the cart frame. -
Page 12: Instructions
OPERATION INSTRUCTIONS WARNING † Any time the pressure pot lid is opened, the power to power supply and compressor must be dissconnected. 1. Fill the pressure pot with appropriate fluid. Tighten the lid properly to seal pressure. Adjust the pressure pot regulator to a small amount of pressure to insure the bell of the No. -
Page 13: Parts Identification
PARTS IDENTIFICATION PARTS IDENTIFICATION Figure 2: 80002 Cart Assembly www.carlisleft.com 13 / 18 AH-22-01-R1 (5/2023) -
Page 14: 80002 Cart Assembly - Parts List
PARTS IDENTIFICATION 80002 CART ASSEMBLY - PARTS LIST (Figure 2) Item # Description Part # Two-Wheel Cart Assembly 79989-00 Air Compressor Assembly 80001-00 PT Code Pressure Tank Assembly (Zinc Plated) 79281-00 Bracket Arm 80162-00* U-Bracket 80163-00* Flat Washer 1/4 SS-6505-CD* Knob 80164-00* 1/4-20 Screw, Hex Head Cap... -
Page 15: 80001 Air Compressor Assembly - Parts List
PARTS IDENTIFICATION NOTE † Illustration shown differs from actual delivered unit. Figure 3: 80001 Air Compressor Assembly 80001 AIR COMPRESSOR ASSEMBLY - PARTS LIST (Figure 3) Item # Description Part # Air Compressor 80911-00 Q.D. Air Fitting Reference Reference Tee 1/4 NPT 3364-02 Hex Nipple 1/4 NPT 8115-01... -
Page 16: 79281 Pressure Pot Assembly
PARTS IDENTIFICATION Figure 4: 79281 Pressure Pot Assembly AH-22-01-R1 (5/2023) 16 / 18 www.carlisleft.com... -
Page 17: 79281 Pressure Pot Assembly - Parts List
PARTS IDENTIFICATION 79281 PRESSURE POT ASSEMBLY - PARTS LIST (Figure 4) Item # Description Part # Pressure Pot 83C-210 St. Elbow, 3/8 NPT SSP-1939 Ball Valve, 3/8 NPT(M) x 3/8 NPS(M) VA-527 Nipple, Hex, 1/4 NPT(M) SSP-462-ZN Valve, Safety, 40 PSI TIA-4040 Valve, Drain SS-2707... - Page 18 WARRANTY POLICY This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided, may invalidate any warranty.
