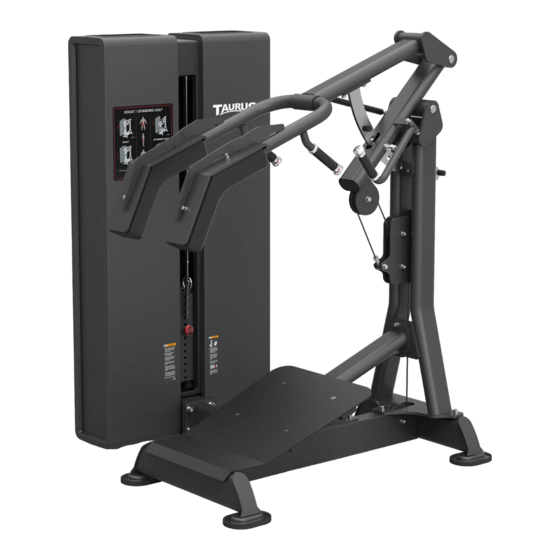

- Page 1 Assembly and Operating Instructions max. 180 kg ~ 120 Min. 278 kg L 130 | W 125 | H 150 SESS7139.01.01 SKU: SESS7139 Taurus Dual Pro Squat/Calf Machine...
- Page 2 Squat/Calf Machine...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Squat/Calf Machine...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and dimensions: Packaging dimensions (L x W x H) and weight approx: No.1: 163 cm x 91 cm x 19.5 cm 25 kg/ 55 lbs No.2: 152 cm x 89 cm x 28.5 cm 35 kg/ 77 lbs No.3: 148 cm x 85 cm x 37.5 cm 126 kg/ 278 lbs... -
Page 8: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... - Page 12 Carton 5-3 Carton 5-3 ITEM NO. NAME. DESCRIPTION. QTY. OPERATER. 10lb top weight Cable set Foot frame 33-2 Front support frame 34-2 Transverse joint frame 35-2 Middle bottom Frame 36-2 Floor stander 37-2 Load-bearing frame Swing span Adjusting bracket Gas spring cylinder Squat/Calf Machine...
- Page 13 Carton 5-4 Carton 5-4 ITEM NO. NAME. DESCRIPTION. QTY. OPERATER. Shoulder pads Carton 5-5 Carton 5-5 ITEM NO. NAME. DESCRIPTION. QTY. OPERATER. 20lb weight stack plate...
-
Page 14: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of Frame and Middle Bottom Frame Assemble the transverse joint frame (34-2) to the middle bottom frame (35-2) by using four... - Page 16 Step 2: Assembly of Front Support Frame and Floor Stander Assemble the floor stander (36-2) to the middle bottom frame (35-2) by using three screws (77), three spring washers (82) and three plain washers (85). Assemble the front support frame (33-2) to the middle bottom frame (35-2) by using two screws (77), two spring washers (82) and two plain washers (85).
- Page 18 Step 3: Assembly of Swing Span to Load-Bearing Frame Assemble the adjusting bracket (39) to the swing span (38) by using two screws (77), two spring washers (82) and two plain washers (85). Assemble the load-bearing frame (37-2) to the swing span (38) by using one axle (46) and two circlips (70).
- Page 19 Step 4: Assembly of Load-Bearing Frame to Floor Stander Assemble the load-bearing frame (37-2) to the floor stander (36-2) by using one axle (45) and two circlips (70). Name Specification Qty. 36-2 Floor stander 37-2 Load-bearing frame Swing span Axle 1 Φ25*198 Circlips for shaft Φ25...
- Page 20 Step 5: Assembly of the Pulleys and Cable Routing NOTICE The majority of the pulleys are pre-assembled when delivered. These pulleys need to be disassembled in order to perform the cable routing. The two pulleys (012 and 013) for the frame are not pre-assembled. Route the cable (50) over the pulley set (013) and assemble the pulley set (013) to the upper side of the frame (001) and pulley baffle (004) with the pre-assembled screw (026), two flat washers (031) and one nut (034-1).
- Page 21 034-1 034-1...
- Page 22 Step 6: Assembly of Foot Frame Assemble the foot frame (40) to the front support frame (33-2) by using four screws (71), four plain washers (85) and four lock nuts (88). Assemble the foot frame (40) to the middle bottom frame (35-2) by using two screws (71) and two plain washers (85).
- Page 23 Step 7: Assembly of Shoulder Pads Assemble the shoulder pads (42) to the swing span (38) by using four screws (75), four spring washers (81) and four plain washers (84). Name Specification Qty. Swing span Shoulder pads Hex socket head cap screw M8*25 Spring washer Plain washer...
- Page 24 Step 8: Assembly of Weight Stack Plate and Label NOTICE The guide rods are pre-assembled to the frame. Disassemble the upper part of the guide rods (002) by removing the socket set (021), the guide rod fixing sleeves (003), the split washers (028) and the bumpers (014). Slide the 13 weight stack plates (49) onto the guide rods (002).
- Page 26 Step 9: Assembly of Side Shields and Trays NOTICE The left and right shields are pre-assembled with a front or rear middle trim. Make sure to align the shields in the respective direction (front/rear). Assemble the left and right shields (005 & 006) with the rear and front middle trim (008 & 009) to the frame (001) with four screws (022).
-
Page 28: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 29: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 30: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 31: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 32: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Squat/Standing Calf SKU: SESS7139... -
Page 33: Parts List
Parts List Name Specification Qty. Frame Guide rod Guide rod fixing sleeve Pulley baffle Left Shield Right Shield Side Shield Rear middle Trim Front middle Trim Connecting strip Pulley set φ89*25.8 Pulley set φ114*32 Bumper φ38*φ21*10 Floor mat Bumper φ62*φ20*26 Guide rod upper cap Hook stop collar Single Side glue cushion... - Page 34 Flat washer Φ24*Φ13*2.5 033-1 Spring washer 034-1 Nylon nut 035-1 Nut 036-1 Stopple Φ10*Φ5.3*1 037-1 Elastic cylindri cal pin φ10*45 33-2 Front support frame 34-2 Transverse joint frame 35-2 Middle bottom Frame 36-2 Floor stander 37-2 Load-bearing frame Swing span Adjusting bracket Foot frame Adjusting bolt column...
- Page 35 Limiting rubber φ20*17*M8 Pulley φ114*25.8 Handle grip φ31.5*φ24*110 Tube stopper D50*70*3 Rubber mat 180*120*16 Circlips for shaft φ25 Countersunk hex socket screws M10*70 Hex socket head cap screw M5*50 Hex socket head cap screw M8*20 Hex socket head cap screw M8*25 Hex socket head cap screw M10*25...
-
Page 36: Exploded Drawing
Exploded Drawing Squat/Calf Machine... - Page 37 Exploded View...
-
Page 38: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 39 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 40: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 41 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 42 Notes Squat/Calf Machine...
- Page 44 Taurus Squat/Standing Calf...
