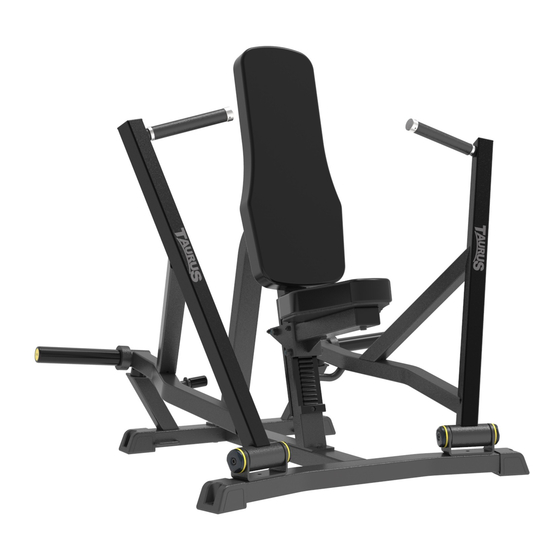

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 60 Min. 64 kg L 128 | W 98 | H 125 SESS7150.01.01 SKU: SESS7150 Taurus Pro Iso Seated Chest Press...
- Page 2 Seated Chest Press...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Seated Chest Press...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions: Article weight (gross, incl. packaging) approx.: 72 kg Article weight (net, excl. packaging) approx.: 64 kg Packaging dimensions (L x W x H) approx.: 117.5 cm x 106.5 cm x 35 cm Set-up dimensions (L x W x H) approx.: 127.6 cm x 98.4 cm x 124.8 cm Maximum user weight: 150 kg... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 11 Hardware Manual Pack Item no. Description Quantity Bottom Frame ASSY Main Frame ASSY Arm Frame 1 ASSY Arm Frame 2 ASSY Seat Pad Frame ASSY Weight Horn ASSY Support sleeve Φ15*Φ9*82 Stop plate Back Pad Seat Pad Plastic sleeve Φ19*Φ13*80 Extension spring Φ31.5*Φ2.5*165 Axis Φ25*133*M10 Hardware Pack...
-
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. - Page 13 Step 1: Assembly of the Main Frame Assemble the main frame (2) to the bottom frame (1) with four screws (19), four flat washer (23) and four spring washers (25). Tighten the bolts and nuts with a wrench.
- Page 14 Step 2: Assembly of the Arm Frames Assemble the arm frame 1 (3) to the bottom frame (1) with one axis (13), two big flat washers (16), two circle rings (15), two caps (14) and two screws (20). Assemble the arm frame 2 (4) to the bottom frame (1) with one axis (13), two big flat washers (16), two circle rings (15), two caps (14) and two screws (20).
- Page 15 Step 3: Assembly of the Seat Pad Frame and Weight Horns Assemble the seat pad frame (5) to the main frame (2) with one support sleeve (7), one plastic sleeve (11), one bolt (17), one bolt (21), one flat washer (22), three flat washers (24) and two lock nuts (27).
- Page 16 Step 4: Assembly of the Seat Pad and Back Pad Assemble the seat pad (10) to the seat pad frame (5) with two bolts (18) and two flat washers (23). Assemble the back pad (9) and one stop plate (8) to the main frame (2) with two bolts (18) and two flat washers (23).
- Page 17 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the floor. Store unused weight plates on a weight rack or respective weight horn. To load the weight horn, carefully grab one weight plate at a time with both hands.
-
Page 18: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 19: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Cushions Legend: C = clean;... -
Page 20: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 21: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Pro Iso Seated Chest Press SKU: SESS7150... -
Page 22: Parts List
Parts List Overall Item No. Part No. Description Qty. IFP120101ASSY Bottom Frame ASSY IFP120102ASSY Main Frame ASSY IFP120103ASSY Arm Frame 1 ASSY IFP120104ASSY Arm Frame 2 ASSY IFP120105ASSY Seat Pad Frame ASSY IFP120106ASSY Weight Horn ASSY IFP12010700 Support sleeve Φ15*Φ9*82 IFP12010800 Stop plate IF93015100V1... - Page 23 Bottom Frame ASSY (1) Grade No. Part No. Description Qty. IFP12010100 Bottom Frame IFP12013300 BottomPlug RS17000400 Bumper GB17880.5M6*16.5DS17 Rivet Nut M6 GB70M10*20DHS20NL Socket Head Cap Screw M10*20 GB818M6*20DHS2 U-nut M6*20 Main Frame ASSY (2) Grade No. Part No. Description Qty. IFP12010200 Main Frame IFP12013100...
- Page 24 Arm Frame 2 ASSY (4) Grade No. Part No. Description Qty. IFP12010400 Arm Frame 2 026-01PL0235-23 Grip STΦ36*Φ29*213 KPSFID3000 Plug 50.8 Ø SL70180700 Shaft Sleeve Φ32.8*Φ24.8*53.5 V39000 Aluminum Grip Cap Φ32 V38900 Aluminum Grip Ring Φ32 GB2766205-2ZC3 Bearing 6205 GB77M8*6DHS2 Socket Set Screw M8*6 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2...
-
Page 25: Exploded Drawing
Exploded Drawing Overall... - Page 26 Bottom Frame ASSY (1) Main Frame ASSY (2) Arm Frame 2 ASSY (4) Arm Frame 1 ASSY (3) Seated Chest Press...
- Page 27 Seat Pad Frame ASSY (5) Weight Horn ASSY (6)
-
Page 28: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 29 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 30: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fitshop.dk info@fitshop.fr �� technik@sport-tiedje.de ��... - Page 31 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.
- Page 32 Notes Seated Chest Press...
- Page 33 Notes...
- Page 34 Notes Seated Chest Press...
- Page 36 Taurus Pro Iso Seated Chest Press...
