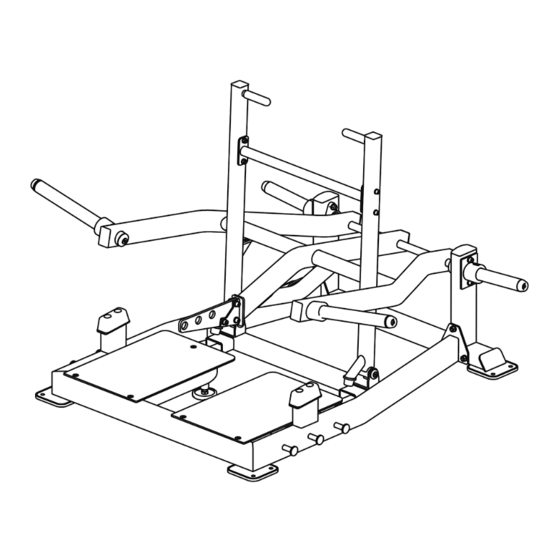

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 75 Min. 146 kg L 197 | W 154 | H 114 SESS7011.01.01 SKU: SESS7011 Taurus Elite Iso Belt Squat...
- Page 2 Belt Squat...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Belt Squat...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions: Packaging dimensions (L x W x H) and weight approx.: Box 1: 150 cm x 147 cm x 30 cm 98.2 kg Box 2: 126.5 cm x 125.5 cm x 33 cm 68 kg Article weight (net, excl. -
Page 8: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... - Page 12 Content of Box 2 Hardware Pack Manual Item no. Description Quantity Load Rack ASSY Safety Frame1 ASSY Safety Frame2 ASSY Connection Frame Hanging Plate Weighted Rod Rack ASSY Hook Belt Bearing Unit Shaft Φ25.4*76 Rubber Bumper Hardware Pack Manual Belt Squat...
-
Page 13: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. - Page 14 Step 1: Assembly of the Rear Support Frame NOTICE Do not fully tighten the bolts. Assemble the rear support frame (2) to the chassis (1) with twelve flat washers (27), six lock nuts (25) and six screws (24). Belt Squat...
- Page 15 Step 2: Assembly of the Safety Frames and Connection Frame NOTICE Do not fully tighten the bolts. Assemble the safety frame 1 (4) and the safety frame 2 (5) to the chassis (1) with two shafts (14) four aluminium caps (18) and four screws (19). Assemble the connection frame (6) to the safety frame 1 (4) and safety frame 2 (5) with eight flat washers (28), four lock nuts (26) and four screws (20).
- Page 16 Step 3: Assembly of the Bearing Units and Weight Plate Frames NOTICE Do not fully tighten the bolts. Do not assemble the load rack upside down. Attach two bearing units (13) to the load rack (3). Attach four spacer sleeves (17) to the bearing units (13). Assemble the load rack (3) and two weight plate frames (8) to the rear support frames (2) with eight flat washers (27), four lock nuts (25) and four screws (22).
- Page 17 Step 4: Assembly of the Weighted Rod Racks and Belt Assemble one weighted rod rack (9) and one rubber bumper (15) on each side of the load rack (3) with two screws (21), two aluminium caps (16) and four set screws (29). NOTICE Make sure that both sides are symmetrical.
- Page 18 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the floor. Store unused weight plates on a weight rack or respective weight horn. To load the weight horn, carefully grab one weight plate at a time with both hands.
- Page 19 Adjustments and Exercises NOTICE The weight horns are compatible with 50 mm weight plates with a maximum external diameter of 450 mm. Weight plates and weight collars are not included in the scope of delivery. Do not load more than 150 kg on each weight horn (training). Do not load more than 100 kg on each weight horn (storage).
-
Page 20: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 21: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Legend: C = clean;... -
Page 22: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 23: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Elite Iso Belt Squat SKU: SESS7011... -
Page 24: Parts List
Parts List Overall Item No. Part No. Description Qty. SL705501ASSY Chassis ASSY SL705502ASSY Rear Support Frame ASSY SL705503ASSY Load Rack ASSY SL705504ASSY Safety Frame1 ASSY SL705505ASSY Safety Frame2 ASSY SL70550600 Connection Frame SL70551000 Hanging Plate SL704007ASSY Weight Plate Frame ASSY SL704008ASSY Weighted Rod Rack ASSY SL70551100... - Page 25 Chassis ASSY (1) Grade No. Part No. Description Qty. SL70550100 Chassis SL70552100 Pedal PL380800 Cushion CWRVL0051200 Ground Floor Mat PE3000900 Adjust The Rack PE3001200 Rubber Mat GB17880.5M10*19.5DS17 Hexagon Rivet Nuts With Flat Head CNLM10*25DHS20 Flat Head Cap Screw M10*25 GB70M12*30DHS20 Socket Head Cap Screw M12*30 Rear Support Frame ASSY (2) Grade No.
- Page 26 Safety Frame 2 ASSY (5) Grade No. Part No. Description Qty. SL70550500 Safety Frame2 M02502000 Copper Bearing KPSFID3000 Pipe Plug Ø 50.8 BNH0523 Glove SL70383300 Plastic Sheet2 IT60033300 Plastic Sheet PBG10002 Cushion GB70M10*25DHS20 Socket Head Cap Screw M12*25 GB17880.5M6*16.5DS17 Hexagon Rivet Nuts With Flat Head 5.10 GB819M6*12DHS2 Cross Recessed Countersunk Head Screws...
-
Page 27: Exploded Drawing
Exploded Drawing Overall... - Page 28 Chassis ASSY (1) Rear Support Frame ASSY (2) Load Rack ASSY (3) Belt Squat...
- Page 29 Safety Frame 1 ASSY (4) Safety Frame 2 ASSY (5) 5-10 4-10 5-10 Weighted Rod Rack ASSY (9) Weight Plate Frame ASSY (8)
-
Page 30: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 31 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 32: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fitshop.dk info@fitshop.fr �� technik@sport-tiedje.de ��... - Page 33 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.
- Page 34 Notes Belt Squat...
- Page 36 Taurus Elite Iso Belt Squat...
