SETUP AND INSTALLATION

FEET ASSEMBLY

Remove the front right foot (11 – accessories list) from the plastic bag. Carefully lift the turntable and screw

the foot into the thread pin from the bottom of the turntable. Balance the turntable by using a spirit level before

next steps.

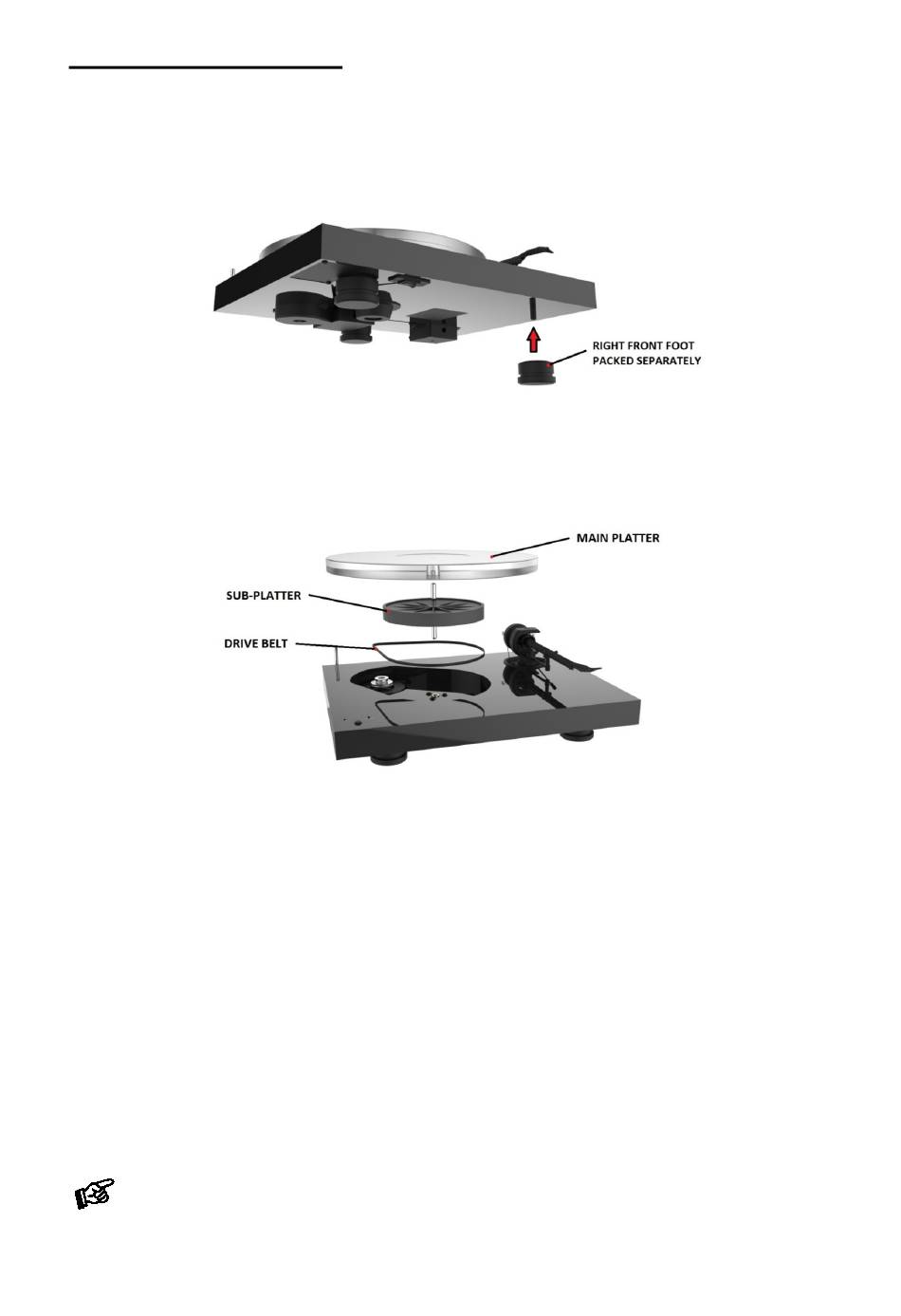

Install the drive belt (5) and the main platter (1) as shown in following illustration.

All cartridges with half inch mounting holes can be mounted. Leave the needle's protection cover on, fit the

cartridge to the headshell by using the supplied screws by passing one screw through each slot in the headshell

(12). Do not tighten the nuts yet.

Connect the tonearm wires with the cartridge pins as follows:

white

left channel positive (L+)

red

right channel positive (R+)

green

right channel return (R-)

blue

left channel return (L-)

The full sound quality of the record player can only be achieved if the cartridge is adjusted correctly. Particular

tools like the Pro-Ject Audio Systems alignment tool are required to accomplish this job properly. If you are not well

acquainted with the adjustment of cartridges, please call for the willing help of your Pro-Ject Audio Systems

dealer.

Please note: adjusting a cartridge and tonearm calls for the greatest care in order to avoid damaging

the cartridge or tonearm bearings. Ask your local dealer for help if you are unsure in any of the

necessary steps and precautions which must be taken.
