CARTRIDGE DOWNFORCE ADJUSTMENT

The counterweight (8) supplied is suitable for cartridges weighing between 7 - 10g (counterweight no. 46).
Adjust the downforce prior to setting the anti-skating force.
Place counterweight (8) halfway along the counterweight support rod at rear of arm, so that the downforce
scale shows towards the front of the player. Lower the armlift and position the cartridge in the space between
arm rest and platter. Carefully rotate the counterweight (8) until the armtube balances out. The arm should
return to the balanced position if it is moved up or down. This adjustment must be done carefully. Do not forget
to remove the cartridge protection cap if fitted.
Once the arm is correctly balanced return it to the rest. Hold the counterweight (8) without moving it, and gently
revolve the downforce scale ring until the zero is in line with the anti-skating prong. Check whether the arm still
balances out.
Rotate the counterweight counter clockwise (seen from the front) to adjust the downforce according to the
cartridge manufacturer's recommendations. One mark on the scale represents 1 mN (= 0.1g / 0.1 Pond) of
downforce.
The recommended downforce for the factory fitted cartridge is 18mN.
5.

ANTI-SKATING FORCE ADJUSTMENT

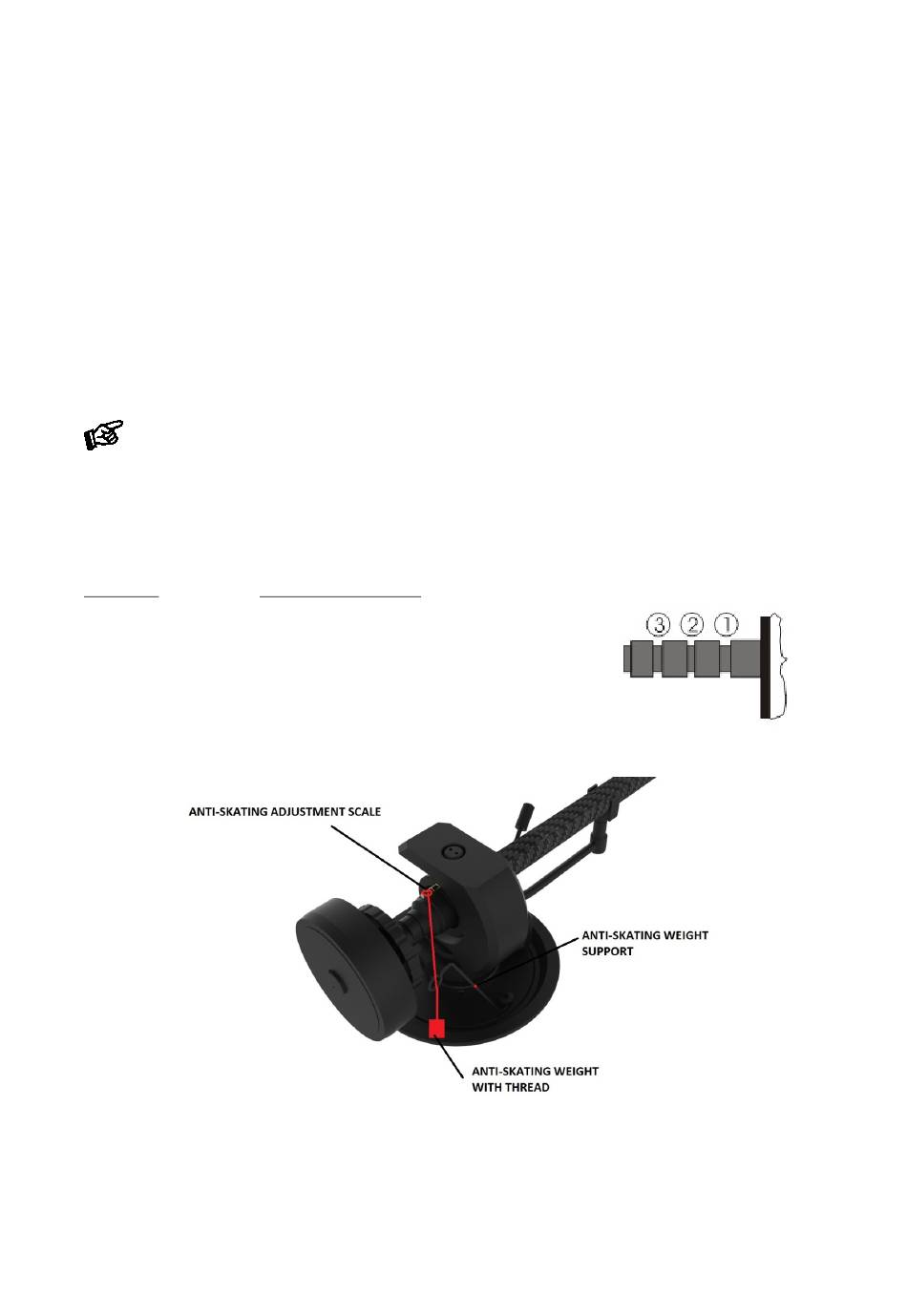

Put the anti-skating thread hook over the anti-skating adjustment scale.
The anti-skating force must be adjusted corresponding to the downforce as follows:
Downforce
10 - 14mN
15 - 19mN
20mN and bigger
8
© Pro-Ject Audio Systems · Pro-Ject X1 · Revision 2019.07.09
Groove in the stub (15)
1 from bearing rings
st
2 " " "
nd
3 " " "
rd
