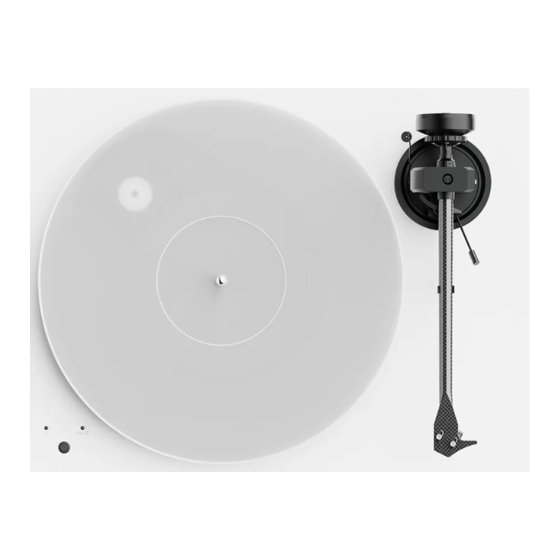

Pro-Ject Audio Systems X1 Setup Manual

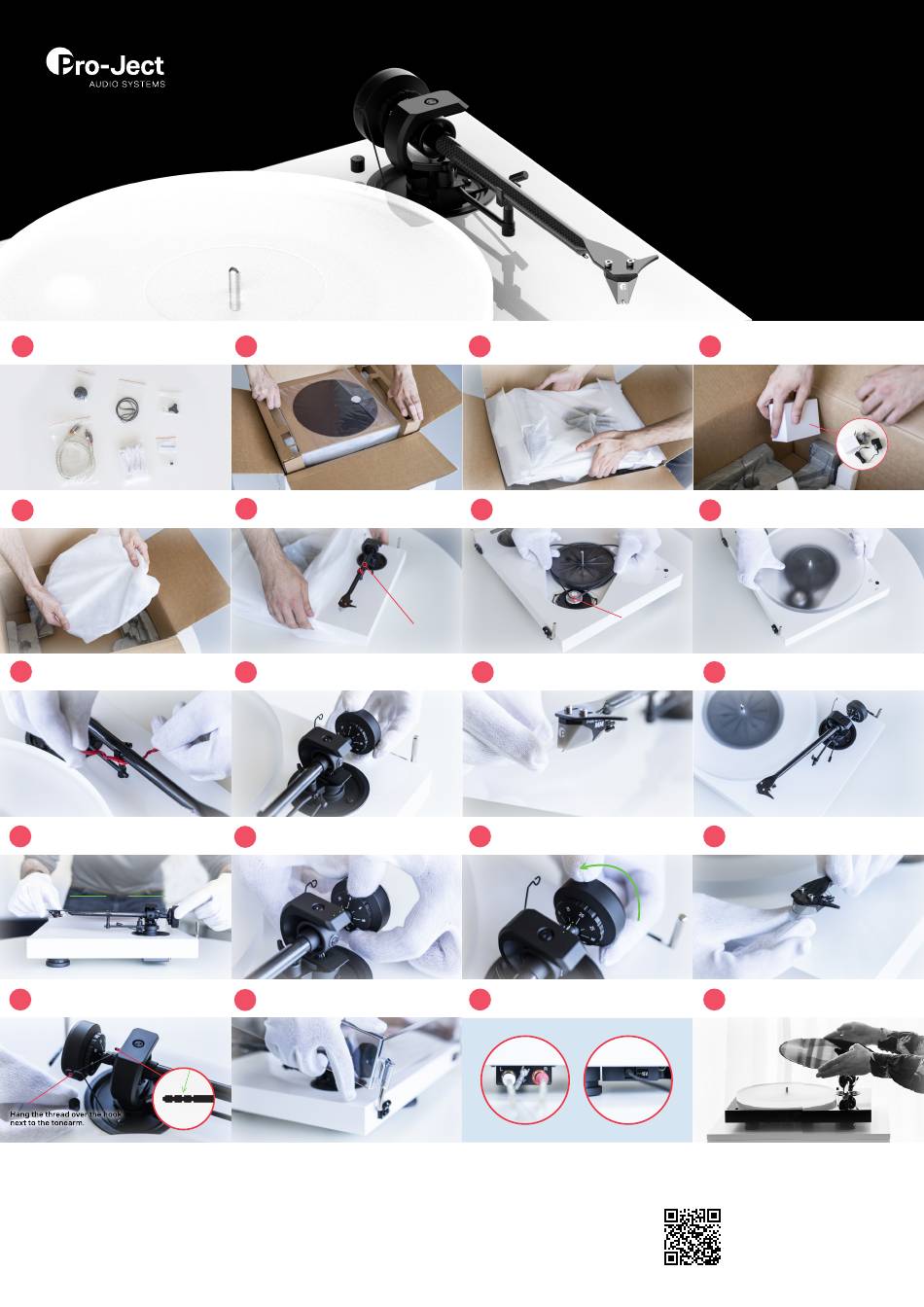

X1 Setup Guide
Please read before unpacking.
1
Unpack all items from accessory bag.
single adapter
counterweight drive belt
& Allen key
Connect it E Antiskating
gloves
RCA cable Weight
5
Unpack the acrylic platter.
9
Remove tonearm twist tie.
13 Balance the tonearm by turning the
counterweight until it stays level.
0°
17 Put the loop of the Antiskating Weight
in the second groove on the tonearm
Technical Data
Speed 33, 45, 78 (electronic speed change)
Principle belt drive
Speed cariance 33: 0.30% 45: 0.25%
Wow & flutter 33: 0.15% 45: 0.13%
Platter 20mm thick, 1.5 kg heavy acryl
Main bearing stainless steel/brass
Tonearm 8,6" carbon/aluminium sandwich
2
Remove dust cover carton from the box.
6
Carefully remove the protection covering.
Tonearm is fragile!
10
Put the counterweight in place.
Turn the front scale of the counterweight
14
to Zero without moving the weight itself.
18 Unpack Dust Cover and put it on
the turntable.
Effective arm length 218,5 mm
Overhang 18 mm
Effective tonearm mass 10,0g
Tracking force range 0 - 30mN
Power consumption 5,0 watts max /< 0.3 watt standby
Dimensions 415 x 125 x 335 mm (WxHxD)
Weight 7 kg net / 9.5 kg gross weight
Getting started:
Make sure you have enough space to unpack your turntable.
Always unpack and setup in a clean enviroment
Important for warranty: Do not throw packaging away.
3
Lift the wrapped turntable out of the box.
7
Put the drive belt on the pulley
& sub-platter.
Small pulley- 33/45 RPM
Big pulley - 78 RPM (round belt)
11
Remove the needle protection cover.
Turn the counterweight counterclockwise
15
until the scale reads roughly 18.
19
Plug in power supply and Connect it E.
www.project-audio.com/en/products/x1
4
Unpack the power supply.
8
Put the platter on the turntable.
12
Lower the tonearm lift and place the
tonearm between platter & armrest.
Put the needle protection cover back
16
on the cartridge.
20 Connect to your sound system and you
are ready to enjoy your records!
