Pro-Ject Audio Systems XAB Setup Manual

XAB
Getting started:
• Make sure to have enough space to unpack your turntable.
• Always unpack and set up in a clean environment.
• Please Do NOT throw away the packaging! If you need
service or want to return your product, please send it
in the original packaging including all inserts. In case of
damage due to alternative packaging your dealer cannot
guarantee a full refund.
• complete manual:
www.project-audio.com/en/product/debut-xa-b
1

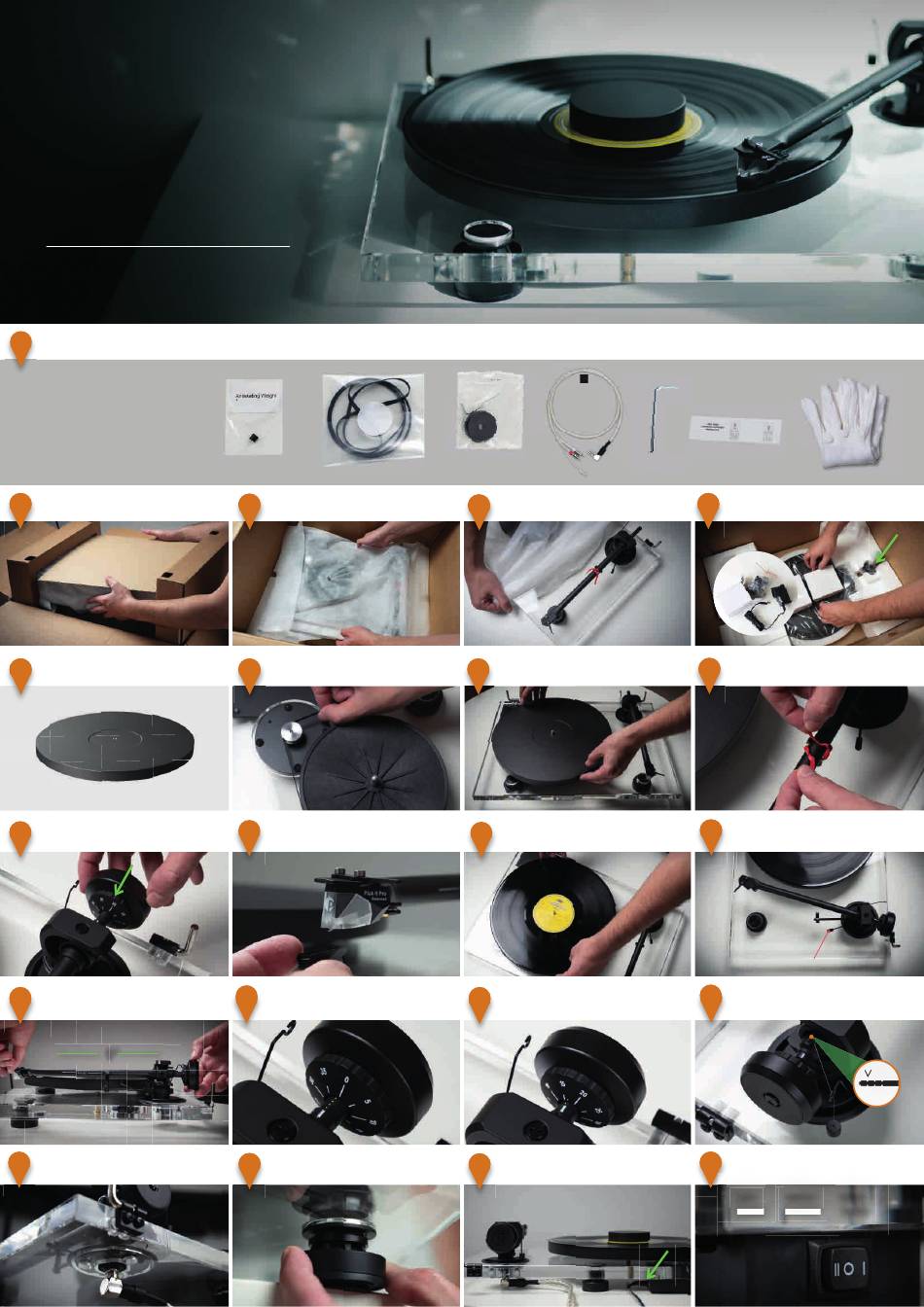

Unpack all items from accessory bag:
a) Anti Skating Weight
b) Drive Belt
c) Adapter for 7" singles / Allen keys
d) Connect it E RCA cable
e) Allen key VTA adjustment
f) Cartridge alignment protractor
g) Cotton gloves
2
Remove dust cover carton from the box.
6
Unpack the aluminium platter.
10
Put the counterweight in place.
Balance the tonearm by turning
14
the counterweight forwards
and backwards on the rod.
0°
18
Plug in the Phono cable.
a)
3
Lift the wrapped turntable out of the box.
7 Put the drive belt on the pulley
and sub-platter.
11
Remove the needle protection cover.
Turn the front dial of the counterweight
15
(not the whole weight) so the '0' is in line
with marker at the back of the tonearm.
19
If necessary, level the turntable by
adjusting the feet.
d) d)
b)
c)
4
Carefully remove the protective cover.
8
Put the platter on the turntable.
12
Put a record on the turntable.
16
Turn the whole counterweight counter-
clockwise until the scale reads 18 - 20.
20
Plug in the power cable.
g)
e)
f)
Unpack power supply, record puck and
5
counterweight from the bottom inserts.
9
Remove tonearm twist tie.
13 Place the tonearm between platter
and armrest.
Lower the tonearm with the lift.
17
Put the loop of the Anti Skating Weight (a)
in the outer notch on the tonearm post.
21
Use the rocker-switch on the left to
select the playback speed.
LEFT: MIDDLE:
STANDBY STANDBY
33 RPM 33 RPM
RIGHT:
45 RPM
