Summary of Contents for Deif MIB 8000

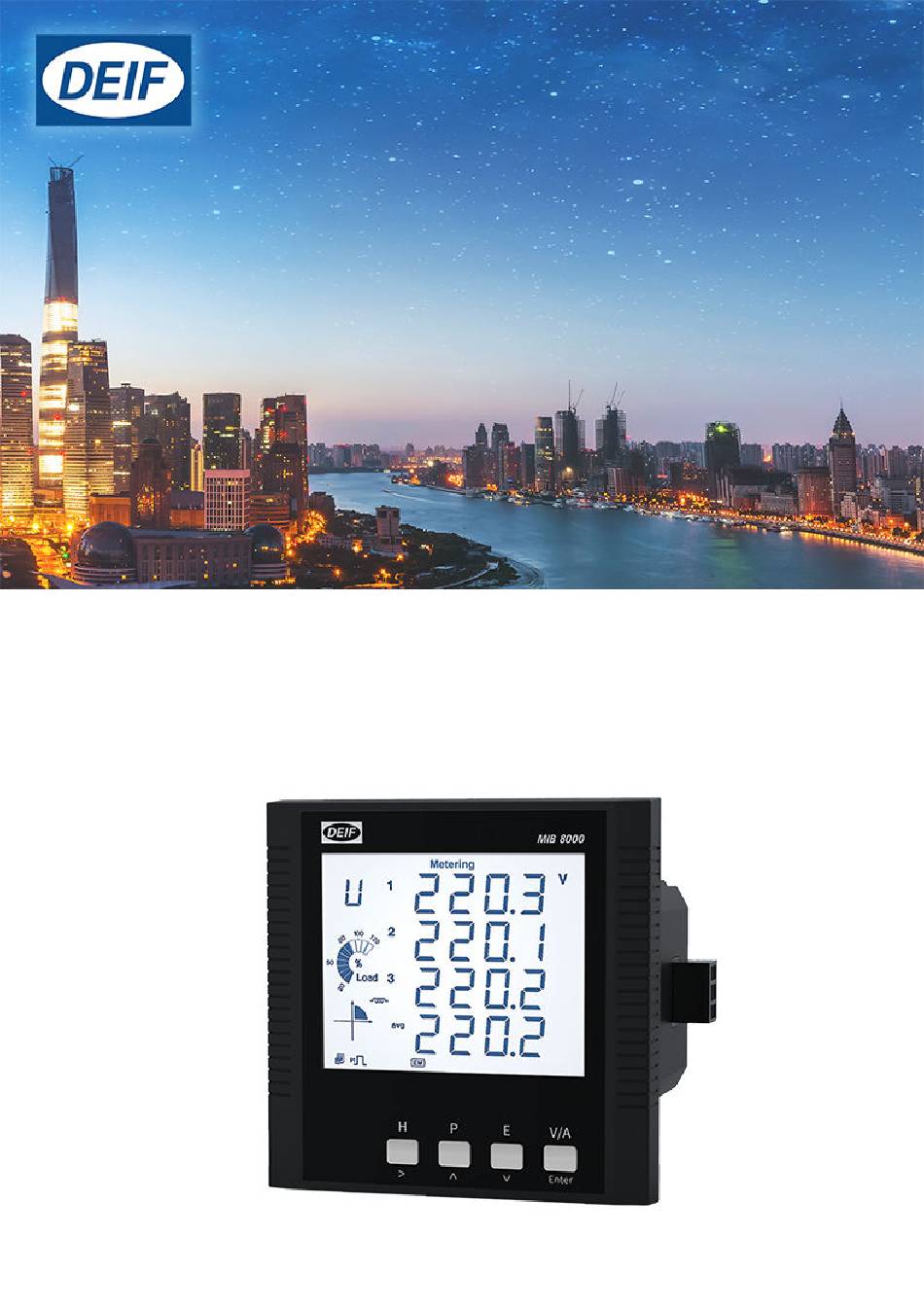

  • Page 1 DESIGNER'S HANDBOOK MIB 8000 Multi-instrument 4189320063D...
  • Page 2: Table Of Contents

    1. About the Designer's handbook 1.1 Document information ..........................................1.1.1 Intended users of the Designer's handbook ................................1.1.2 Symbols for general notes ......................................1.1.3 Symbols for hazard statements ....................................1.2 Warnings and safety ..........................................1.3 Support information ..........................................1.4 Legal information ............................................
  • Page 3: About The Designer's Handbook

    1. About the Designer's handbook Document information 1.1.1 Intended users of the Designer's handbook This Designer's Handbook is mainly intended for the panel builder designer, and provides overall information about the MIB and functions. This document also provides information needed to operate or configure the MIB. 1.1.2 Symbols for general notes NOTE...
  • Page 4: Warnings And Safety

    Warnings and safety General safety guidelines DANGER! Incorrect use Unjustified removal of protection devices, incorrect use, faulty installation or inappropriate operation could represent a serious risk to personnel and equipment. All work relating to transportation, installation, commissioning and maintenance must be performed by experienced, qualified personnel (see IEC 364, CENELEC HD 384 or DIN VDE 0100, as well as national specifications for installation and accident prevention).
  • Page 5: Support Information

    Download free without registration any of the MIB technical documentation from the DEIF website: https://www.deif.com/documentation/mib/ Service and support DEIF is committed to being available to our customers and partners 24 hours a day, seven days a week, to guarantee the highest levels of service and support. https://www.deif.com/support Training DEIF arranges training courses at DEIF offices worldwide.
  • Page 6: About The Mib

    The measurements are shown on the built-in display. The MIB is available in two versions: • MIB 8000 (basic) • MIB 8000C (with communication + optional I/O extension module) True RMS values on all 3-phase network topologies are measured with/without neutral and with both balanced and unbalanced load.
  • Page 7: Dimensions

    2.1.3 Dimensions Communication (only MIB 8000C) Suitable for SCADA systems, RS-485 serial output, and Modbus RTU protocol. The communication port and protocol are RS-485 and Modbus RTU. Communication Comm Port The terminals are A, B and S (14, 15, 16). •...
  • Page 8: Measurements

    The shield of the RS-485 cable must be connected to the ground at one end only Measurements Measurement Description Voltage Actual voltage of each phase-phase and phase-neutral. Current Actual current of each phase and neutral current. Active power (P) Active power of each phase. Reactive power (Q) Reactive power of each phase.
  • Page 9: Measurements And Functions

    3. Measurements and functions Measured and calculated values Almost all the electric parameters in power systems can be measured by the MIB. Some of the parameters which are special will be described in this part. Reactive power (Q) MIB adopts two definitions of reactive power: 1.
  • Page 10 In the formula, U is RMS value of the voltage fundamental and U is RMS value of the voltage harmonic with order n. Harmonic parameter : Each harmonic rate The percentage of each harmonic divided by fundamental. Demand Demand of total power and reactive power of system, demand of 3-phase current. The demand statistics method in MIB is sliding windows.
  • Page 11 Example : DO11+DO12 alarm output Alarm occurs with current I1 goes over 1 A for a duration of more than 15 seconds. 1. Set the mode of DO11 as mode 1 (alarm output). 2. Set alarm time to 15 seconds, 1 digit represents 300 ms: The value is: 15 ÷...
  • Page 12: Wiring

    4. Wiring Input wiring Input configurations ( 5 Aac / 1 Aac): LINE LINE L1 L2 L3 N L1 L2 L3 1A FUSE 1A FUSE Terminal block Terminal block 10 9 10 9 V3 V2 V1 V3 V2 V1 LOAD LOAD Input configurations 333 mV / 100 mV (Rogowski coil) / 200 mA / 6.68 mA: LINE...
  • Page 13: Communication Wiring (Only Mib 8000C)

    MIB has 1 auxiliary power supply option for different applications (terminals 11, 12, and 13). Universal (standard) : 100 to 415 Vac, 50 to 60 Hz, 100 to 300 Vdc 1A FUSE Power supply Ground Communication wiring (only MIB 8000C) MIB uses RS-485 serial communication and the Modbus-RTU protocol.
  • Page 14: Operation

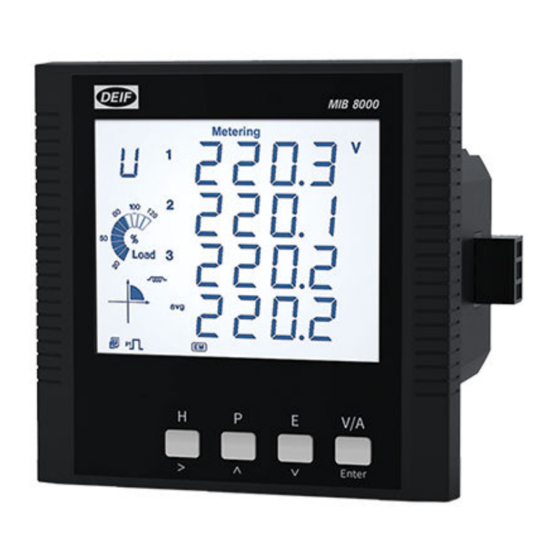

    5. Operation MIB display and buttons The MIB has a white backlight display used for all measured values and for configuration during the setup process. MIB 8000 Load Demand Unbl kvar Mvar Imp. Exp. Run Hrs. kvarh Name Function Shows measured values and used for configuration modes.
  • Page 15: Lcd Display

    LCD display Load Demand Unbl kvar Mvar Imp. Exp. Run Hrs. kvarh Name Symbol Function Communication Shows communication is active. (Only for MIB 8000C) U: Voltage I: Current P: Active power Item label Load q: Reactive power PF: Power factor For harmonic rate, the little 8 segment displays harmonic value.
  • Page 16: Default Password

    Default password The parameter setting mode is protected by a four digit password each time. The default password is 0000. DESIGNER'S HANDBOOK 4189320063D EN Page 16 of 23...
  • Page 17: Modbus

    6. Modbus How it works The MIB is based on a digital processing platform. All current and voltage input signals are digitally sampled and all values are calculated from these sampled signals. The MIB can also measure total harmonic distortion of voltage and current. Measuring principles 6.2.1 Voltage (U)
  • Page 18: Reactive Power (Q)

    If you use Modbus to collect the power data, you need to use this equation to calculate the power values: where Rx = register value, CT1 and CT2 = current transformer data, and PT1 and PT2 = voltage transformer data. 6.2.4 Reactive power (Q) The MIB calculates the three-phase reactive power and the total reactive power of the system.
  • Page 19: Reactive Energy (Eq)

    where Rx = register value. 6.2.8 Reactive energy (Eq) The reactive energy is the time integral of reactive power, and the unit is kVArh. Import of reactive energy is equal to inductive reactive energy, and is positive. Export of reactive energy is equal to capacitive reactive energy and is negative. You can see the reactive energy counters on the display.
  • Page 20: Total Harmonic Distortion (Thd)

    where Rx = register value, CT1 and CT2 = current transformer data, and PT1 and PT2 = voltage transformer data. Apparent power (S) where Rx = register value, CT1 and CT2 = current transformer data, and PT1 and PT2 = voltage transformer data. Current, I1 where Rx = register value, CT1 and CT2 = current transformer data, and PT1 and PT2 = voltage transformer data.
  • Page 21: Maximum And Minimum Statistics

    You can see the unbalance factors on the display. You can also view the values remotely using RS485 communication and MIBLink, the MIB utility software. If you use Modbus to collect the unbalance factor data, you need to use these equations to calculate the values: where Rx = register value.
  • Page 22: Download Modbus Tables

    Download Modbus tables To download the Modbus tables, follow these steps: 1. Go to www.deif.com/documentation/mib/ 2. Go to the Reference section, and select Communication. 3. Select the Modbus tables to start the download. DESIGNER'S HANDBOOK 4189320063D EN Page 22 of 23...
  • Page 23: End-Of-Life

    In Europe, the disposal of WEEE is governed by the WEEE directive issued by the European Parliament. DEIF complies with this directive. You must not dispose of WEEE as unsorted municipal waste. Instead, WEEE must be collected separately, to minimise the load on the environment, and to improve the opportunities to recycle, reuse and/or recover the WEEE.
