Summary of Contents for Deif MIQ96-2

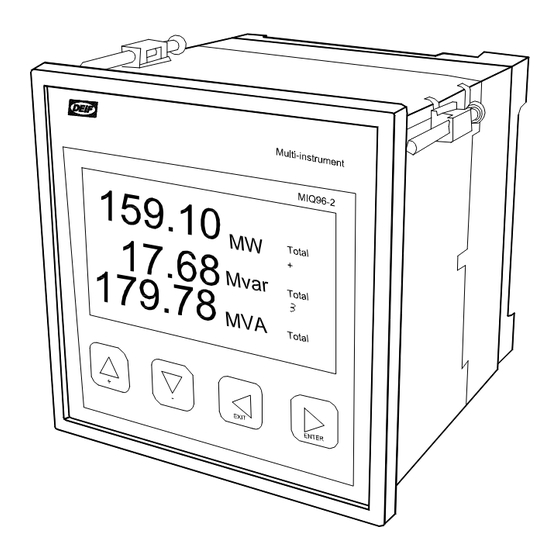

- Page 1 User’s Manual (Appendix) Multi-instrument type MIQ96-2 4189320013A • Limit switches • 2 impulse outputs for kWh import, kvarh import • Customer specified display DEIF A/S Tel.: (+45) 9614 9614 Frisenborgvej 33, DK-7800 Skive Fax: (+45) 9614 9615 Denmark E-mail: deif@deif.com...
- Page 2 “Contrast” will appear. • Press arrow down once, and the menu for changing of the “Customer display” will appear. Tel.: (+45) 9614 9614 • Fax: (+45) 9614 9615 • E-mail: deif@deif.com Page 2 of 7...
- Page 3 User’s manual (Appendix), multi-instrument MIQ96-2 CUSTOM 1: U2 2. P1 Q1 S1 CUSTOM 1: U2 2. P1 Q1 S1 • When the “Enter” button is pressed, the display will go in “Set” mode, and the actual parameter that can be changed will be underlined.
- Page 4 Press “Enter” again, and the settings for output 1 will appear. Use arrow up or arrow down to choose between output 1 and output 2. Tel.: (+45) 9614 9614 • Fax: (+45) 9614 9615 • E-mail: deif@deif.com Page 4 of 7...
- Page 5 User’s manual (Appendix), multi-instrument MIQ96-2 The example below shows setting of the pulse duration for output 1. OUT1: (200ms) 1P/Wh Press ”Enter”, and ”SET” appears. OUT1: (200ms) 1P/Wh Press ”Enter”, and ”SET” appears for pulse duration. Change the value with arrow up or arrow down.
- Page 6 When the limits have been set, the window below will be displayed. LIMIT 1: 010s ON : U1 < 200.00V OFF: U1 > 230.00V Tel.: (+45) 9614 9614 • Fax: (+45) 9614 9615 • E-mail: deif@deif.com Page 6 of 7...
- Page 7 User’s manual (Appendix), multi-instrument MIQ96-2 3.2 Function of limit set-up Ex. 1 Off: 110V 200V 230V LIMIT 1: 010s ON : U1 < 200.00V OFF: U1 > 230.00V Ex. 2 Off: 110V 200V 230V LIMIT 1: 010s ON : U1 > 230.00V OFF: U1 <...
