Installation instructions
DLQA96/144
Marine bridge instrumentation
4189350016B (UK)
•
360° indication with disc pointer
• Linearized to class 0.5
• LED illumination of scale and disc
• 100% identical illumination of scale and disc
• Shock resistant up to 50 g
• Enclosure IP52/54 or IP66 (only Q96 size)
• Approved according to the European Marine Directive
DEIF A/S
Frisenborgvej 33, DK-7800 Skive Fax:
Denmark
Tel.:
(+45) 9614 9614
(+45) 9614 9615
E-mail: deif@deif.com
Advertisement
Related Manuals for Deif DLQA96
Summary of Contents for Deif DLQA96

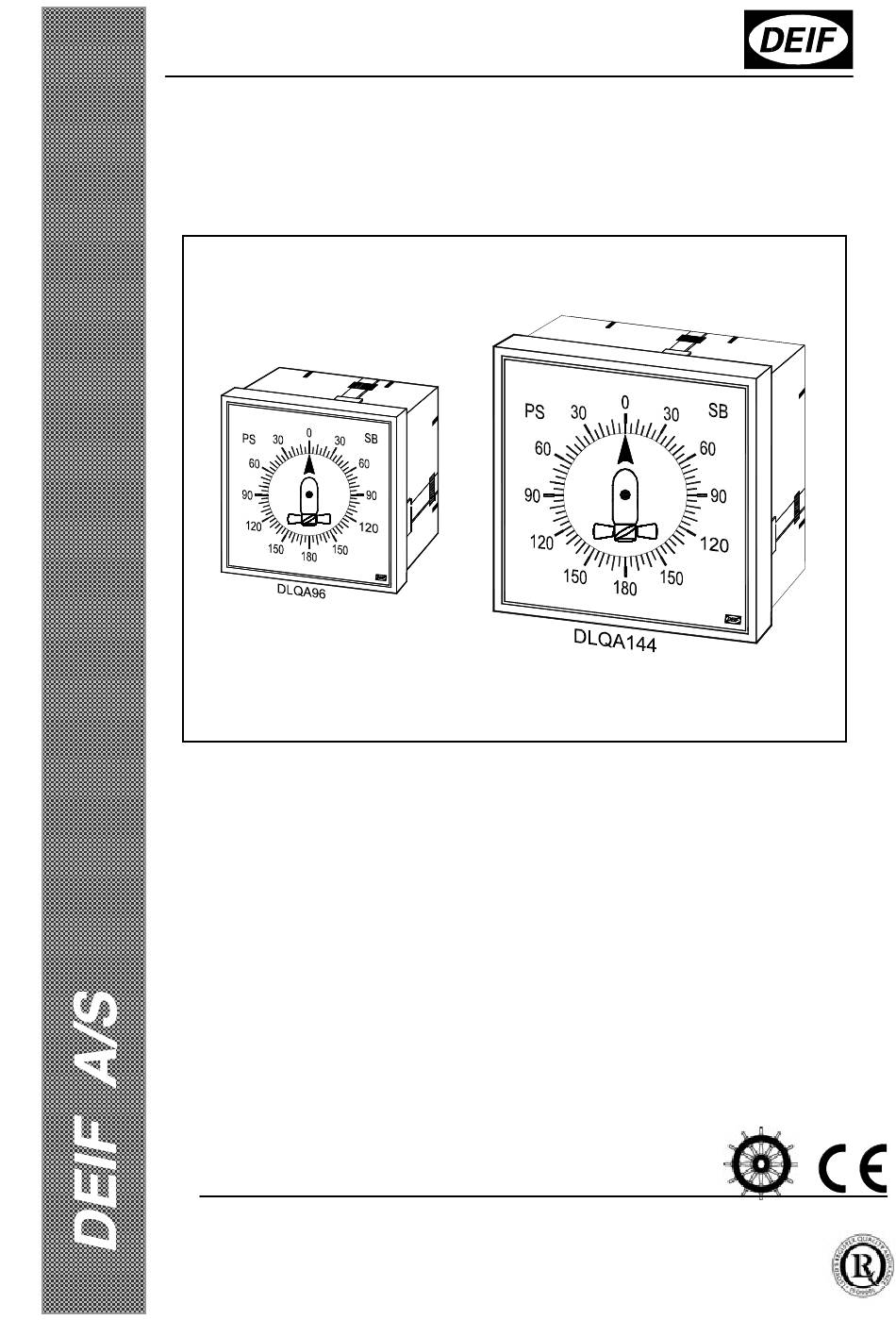

- Page 1 Installation instructions DLQA96/144 Marine bridge instrumentation 4189350016B (UK) • 360° indication with disc pointer • Linearized to class 0.5 • LED illumination of scale and disc • 100% identical illumination of scale and disc • Shock resistant up to 50 g •...
-
Page 2: Mounting Instructions
X-coil system and not on a moving-coil system like the other instruments in the product programme of DEIF A/S. Due to the X-coil technology it is possible to have an instrument with a scale curve of 360°, which is not possible in the conventional moving-coil systems. - Page 3 Installation instructions, DLQA96/144 DLQA96/144 is protected against ESD (static electricity). Therefore, when connecting the instrument, no special protection from ESD is needed. When the instrument is mounted in the console/switchboard, the terminal on the rear side is connected to the cable.
-
Page 4: Adjustment And Control
12.0mA 4.0mA 4.0mA 12.0mA 0.5mA 1.0mA 0/360 1.0mA 0.5mA 0...1mA 0.5mA 0.0mA 0.0mA 0.5mA 0.0V +10.0V 0/360 +10.0V 0.0V -10...0...10V 0.0V -10.0V -10.0V 0.0V Tel.: (+45) 9614 9614 • Fax: (+45) 9614 9615 • E-mail: deif@deif.com Page 4 of 7... -
Page 5: Technical Specifications
Installation instructions, DLQA96/144 5. Technical specifications Basic accuracy: Class 0.5 (-10...15...30...55°C) according to EN 60051 and IEC 51 Adjustments: None Instrument sizes: 96 x 96mm and 144 x 144mm according to DIN 43700 Bezel: Slim bezels according to DIN 43718... - Page 6 Separate screw terminals for instrument input, power supply and illumination Max. 2.5mm² multi-stranded or 4.0mm² single-stranded Materials: All outer materials are self-extinguishing according to UL94 (V0) Tel.: (+45) 9614 9614 • Fax: (+45) 9614 9615 • E-mail: deif@deif.com Page 6 of 7...
- Page 7 -/+ and input for ILLUM -/+ is required, these inputs are to be protected externally. The protection must be positioned no more than 10 m from the DLQA96/144 instrument and must meet the requirements of the class and the legislation.
