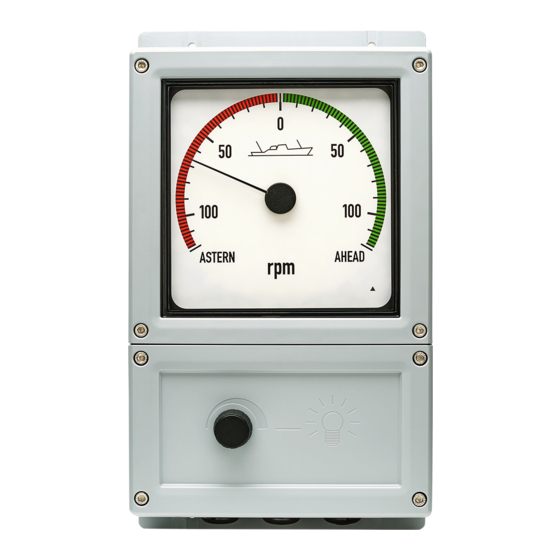

Deif BRW-2 Quick Manual

Hide thumbs Also See for BRW-2:

Note about accuracy

As this is a special version of the BRW-2 with additional circuits to simulate BRW-1

operation, the standard specified accuracy (Class 0.5) is not met.

BRW-2 Replacement is specified to: Class 1.0.

For future replacement, it is not necessary to replace the entire BRW-2 indicator. It may

be sufficient to change the XL192 indicator part (the top part of the product). This will

facilitate reinstallation.

Please note that when replacing the XL192 indicator built into the BRW-2, the measuring

range is either 0 to 1 mA or ±1 mA. Please refer to the type label on the XL192 indicator.

BRW-2 Replacement for BRW-1

Refer to www.deif.com for complete documentation

QUICK GUIDE

Document no.: 4189350057A

Table of Contents

Do you have a question about the BRW-2 and is the answer not in the manual?

Page 1 Note about accuracy As this is a special version of the BRW-2 with additional circuits to simulate BRW-1 operation, the standard specified accuracy (Class 0.5) is not met. BRW-2 Replacement is specified to: Class 1.0. Future replacement For future replacement, it is not necessary to replace the entire BRW-2 indicator. It may be sufficient to change the XL192 indicator part (the top part of the product).
Page 2 The BRW-2 is protected from ESD (static electricity), so no special protection from ESD is needed during mounting. ...
