Deif BRW-2 Quick Manual

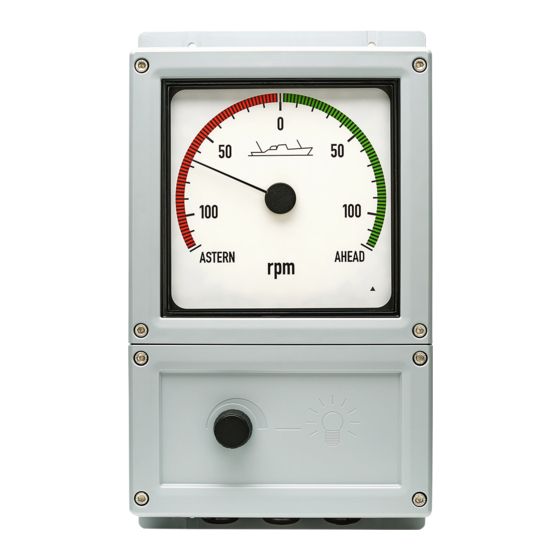

Bridge wing indicator

Hide thumbs Also See for BRW-2:

BRW-2 replacement for

BRW-1

Bridge wing indicator

Quick guide

Table of Contents

Need help?

Do you have a question about the BRW-2 and is the answer not in the manual?

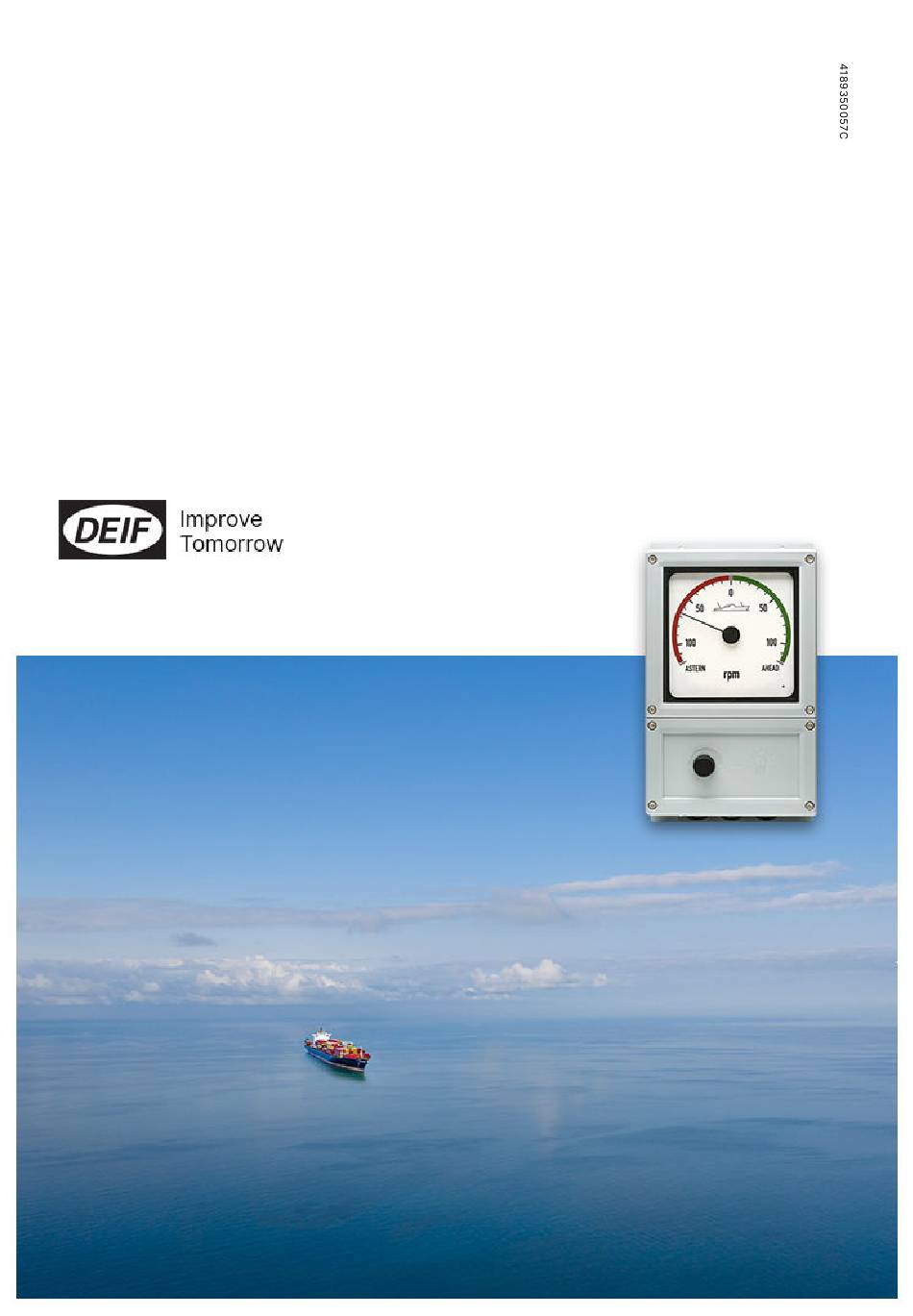

Page 1 BRW-2 replacement for BRW-1 Bridge wing indicator Quick guide...
Page 2 The three PG21 type cable glands on the bottom of the unit are suitable for cable gauge 13 to 18 mm. The BRW-2 is protected from ESD (static electricity). This means that no special ESD protection measures are required when mounting the unit.
Page 3 BRW-2 uses a 24 V DC supply for power and illumination. • BRW-1 uses either an AC or DC supply. This means that the polarity on the existing BRW-1 installation may be reversed.
Page 4 3. General Accuracy This is a special version of the BRW-2 with additional circuits to simulate BRW-1 operation. This means it does not meet the standard specified accuracy of Class 0.5. BRW-2 Replacement meets accuracy Class 1.0. Future replacement For future replacement, it is not necessary to replace the entire BRW-2 indicator. You may only need to replace the XL192 indicator part (the top part of the product).

Brw-1
