StarTech.com GNDBAR1U Instruction Manual

Instruction manual

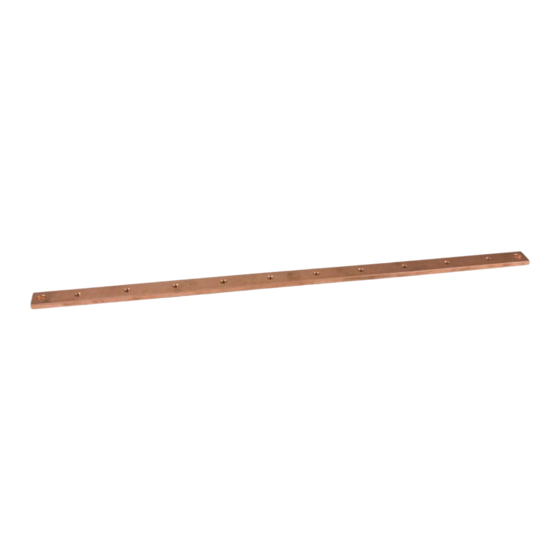

Copper grounding bar for server racks
GNDBAR1U
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com
Packaging contents
• 1 x copper grounding bar (1U or 10U)
• 12 x M5 (20 mm) screws
• 2 x M5 cage nuts
• 1 x instruction manual
System requirements
• A server rack with 1U of free space (horizontal installation) or 10U
of free space (vertical installation)
System requirements are subject to change. For the latest
requirements, please visit www.startech.com/GNDBAR1U.

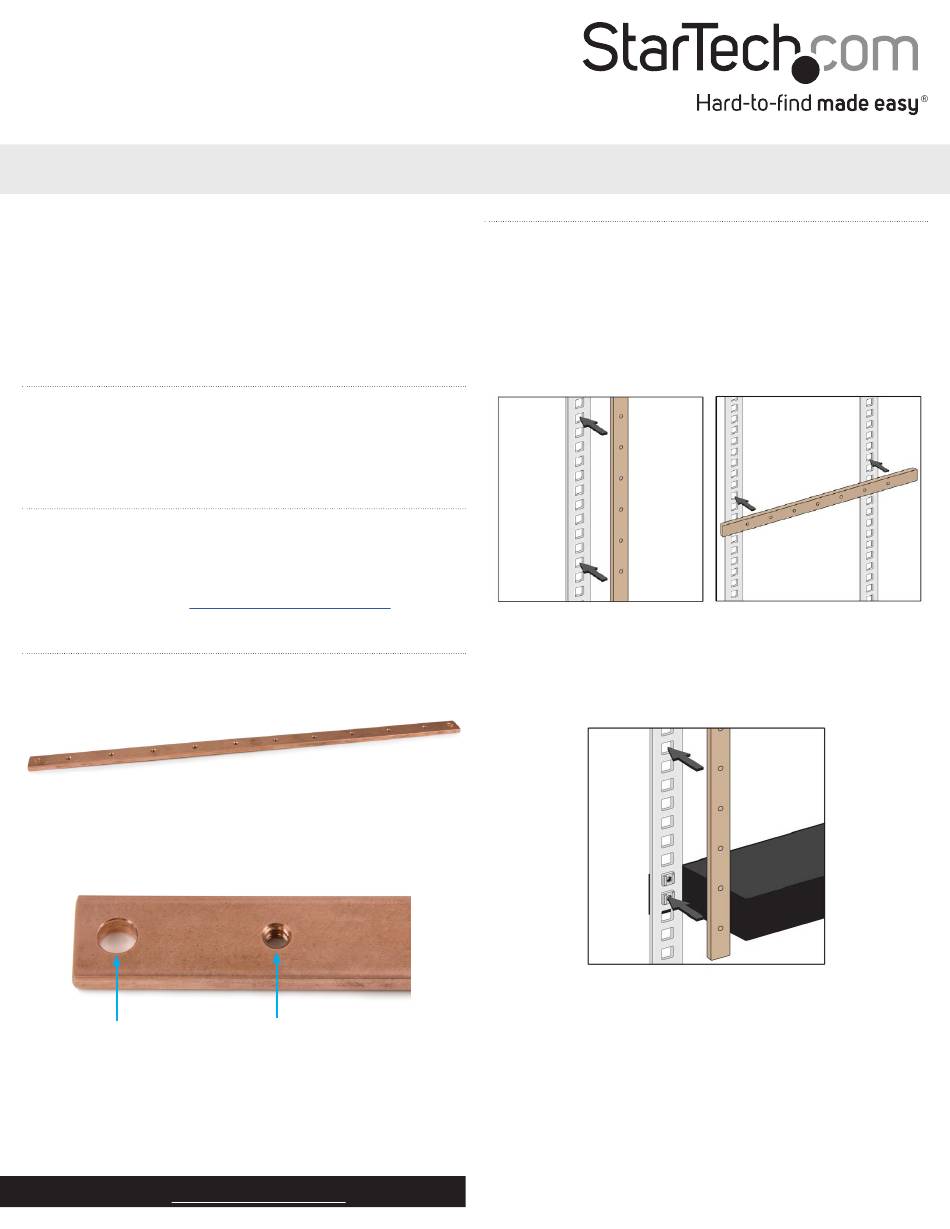

Product overview
Mounting hole
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/GNDBAR1U.
Grounding hole
*actual product may vary from photos
Install the grounding bar
The grounding bar can be installed either horizontally or vertically,
and can be installed on the inside or the outside of your server rack.
Using the holes located along the length of the grounding bar, you
can connect and ground up to ten devices.
1. Decide whether you want to install the grounding bar horizontally
or vertically, and select the area on your server rack where you
want to install the grounding bar.
2. Insert the included M5 cage nuts in the holes in your server rack
that line up with the mounting holes on the end of the grounding
bar.
3. Line up the mounting holes on the end of the grounding bar with
the holes in which you inserted the cage nuts.
4. Holding the grounding bar in place, insert the included M5 (20
mm) screws into the mounting holes located on each end of the
grounding bar.
5. Use a screwdriver to tighten the screws.
6. Attach the devices that you want to ground to the holes located
along the length of the grounding bar.
Note: If you install the grounding bar vertically and inside of the
server rack, the mounting screws used to hold equipment may need
to be replaced with the provided M5 (20 mm) screws.
Manual Revision: 07/06/2018
