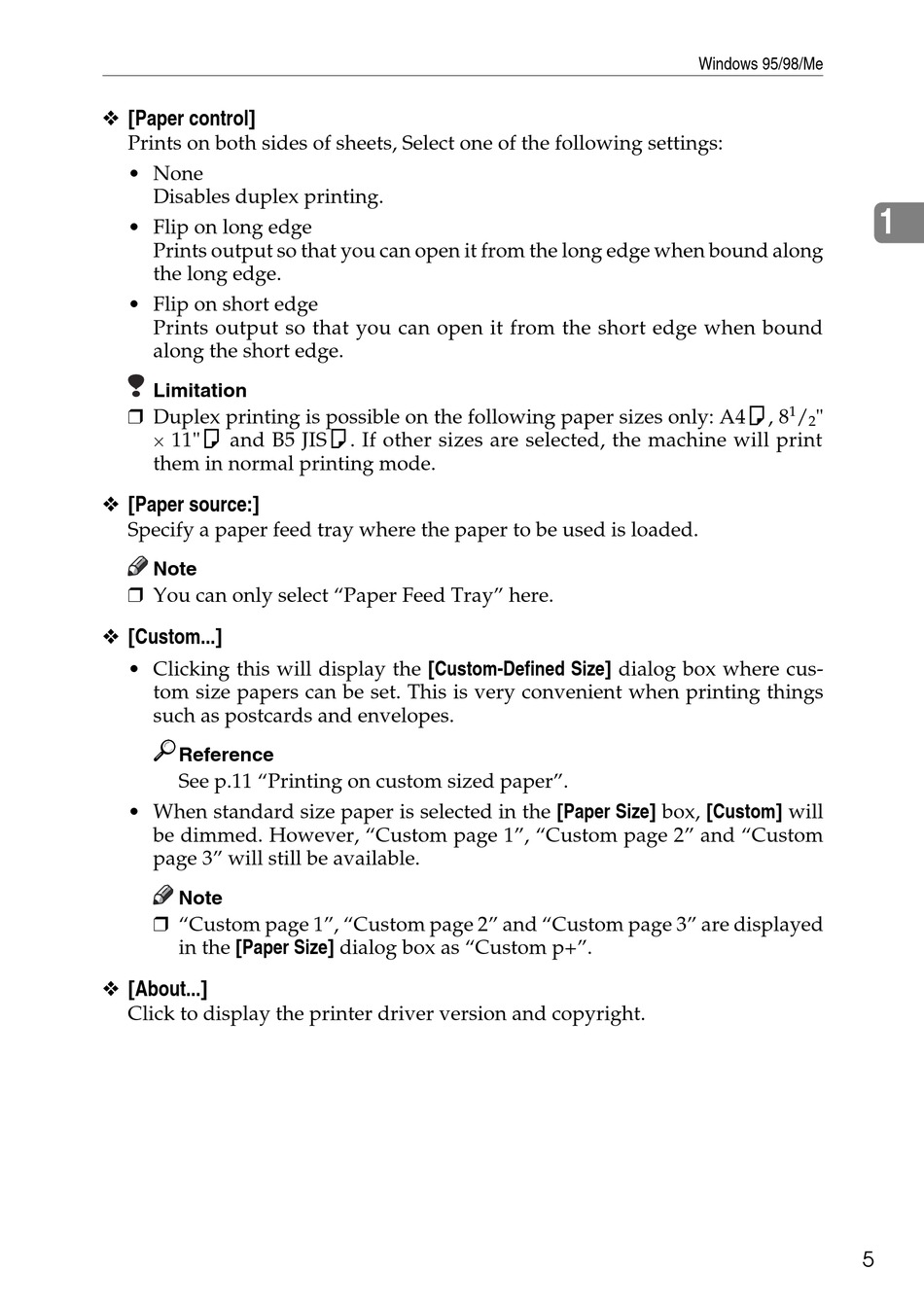

Ricoh PostScript3 Operating Instructions Manual page 9

❖ [Paper control]
Prints on both sides of sheets, Select one of the following settings:
• None
Disables duplex printing.
• Flip on long edge
Prints output so that you can open it from the long edge when bound along
the long edge.
• Flip on short edge
Prints output so that you can open it from the short edge when bound
along the short edge.
Limitation
❒ Duplex printing is possible on the following paper sizes only: A4K, 8
× 11"K and B5 JISK. If other sizes are selected, the machine will print
them in normal printing mode.
❖ [Paper source:]
Specify a paper feed tray where the paper to be used is loaded.
Note
❒ You can only select "Paper Feed Tray" here.
❖ [Custom...]
• Clicking this will display the [Custom-Defined Size] dialog box where cus-
tom size papers can be set. This is very convenient when printing things
such as postcards and envelopes.
Reference
See p.11 "Printing on custom sized paper".
• When standard size paper is selected in the [Paper Size] box, [Custom] will
be dimmed. However, "Custom page 1", "Custom page 2" and "Custom
page 3" will still be available.
Note
❒ "Custom page 1", "Custom page 2" and "Custom page 3" are displayed
in the [Paper Size] dialog box as "Custom p+".
❖ [About...]
Click to display the printer driver version and copyright.
Windows 95/98/Me
