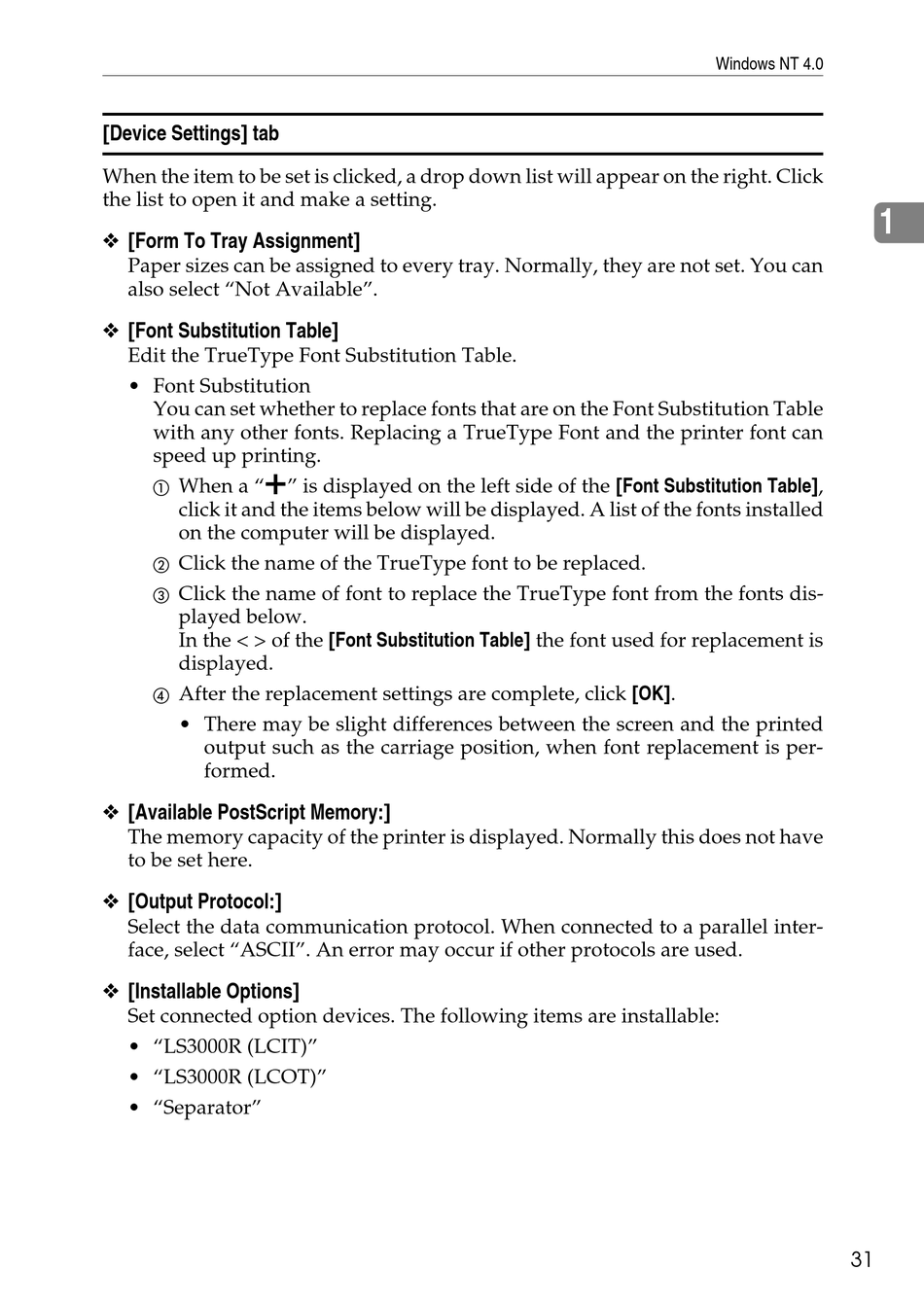

Ricoh PostScript3 Operating Instructions Manual page 35

[Device Settings] tab
When the item to be set is clicked, a drop down list will appear on the right. Click
the list to open it and make a setting.
❖ [Form To Tray Assignment]
Paper sizes can be assigned to every tray. Normally, they are not set. You can
also select "Not Available".
❖ [Font Substitution Table]
Edit the TrueType Font Substitution Table.
• Font Substitution
You can set whether to replace fonts that are on the Font Substitution Table
with any other fonts. Replacing a TrueType Font and the printer font can
speed up printing.
A When a "n" is displayed on the left side of the [Font Substitution Table],
click it and the items below will be displayed. A list of the fonts installed
on the computer will be displayed.
B Click the name of the TrueType font to be replaced.
C
Click the name of font to replace the TrueType font from the fonts dis-
played below.
In the < > of the [Font Substitution Table] the font used for replacement is
displayed.
D
After the replacement settings are complete, click [OK].
• There may be slight differences between the screen and the printed
output such as the carriage position, when font replacement is per-
formed.
❖ [Available PostScript Memory:]
The memory capacity of the printer is displayed. Normally this does not have
to be set here.
❖ [Output Protocol:]
Select the data communication protocol. When connected to a parallel inter-
face, select "ASCII". An error may occur if other protocols are used.
❖ [Installable Options]
Set connected option devices. The following items are installable:
• "LS3000R (LCIT)"
• "LS3000R (LCOT)"
• "Separator"
Windows NT 4.0
1
31
