PostScript3 printer driver - Setting Up for Printing
G

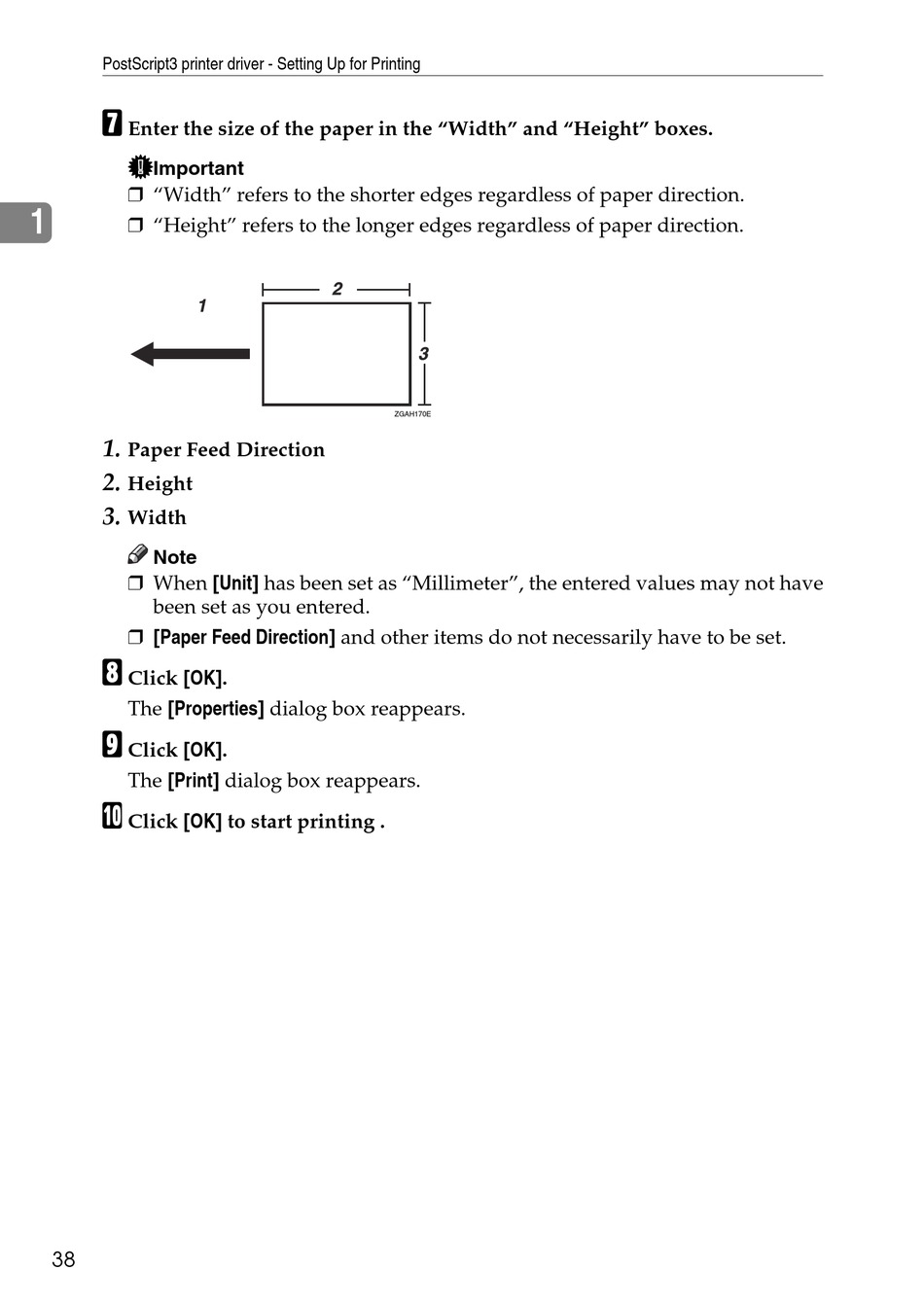

Enter the size of the paper in the "Width" and "Height" boxes.
Important
❒ "Width" refers to the shorter edges regardless of paper direction.
1
❒ "Height" refers to the longer edges regardless of paper direction.
1.
Paper Feed Direction
2.
Height
3.
Width
Note
❒ When [Unit] has been set as "Millimeter", the entered values may not have
been set as you entered.
❒ [Paper Feed Direction] and other items do not necessarily have to be set.
H
Click [OK].
The [Properties] dialog box reappears.
I
Click [OK].
The [Print] dialog box reappears.
J
Click [OK] to start printing .
