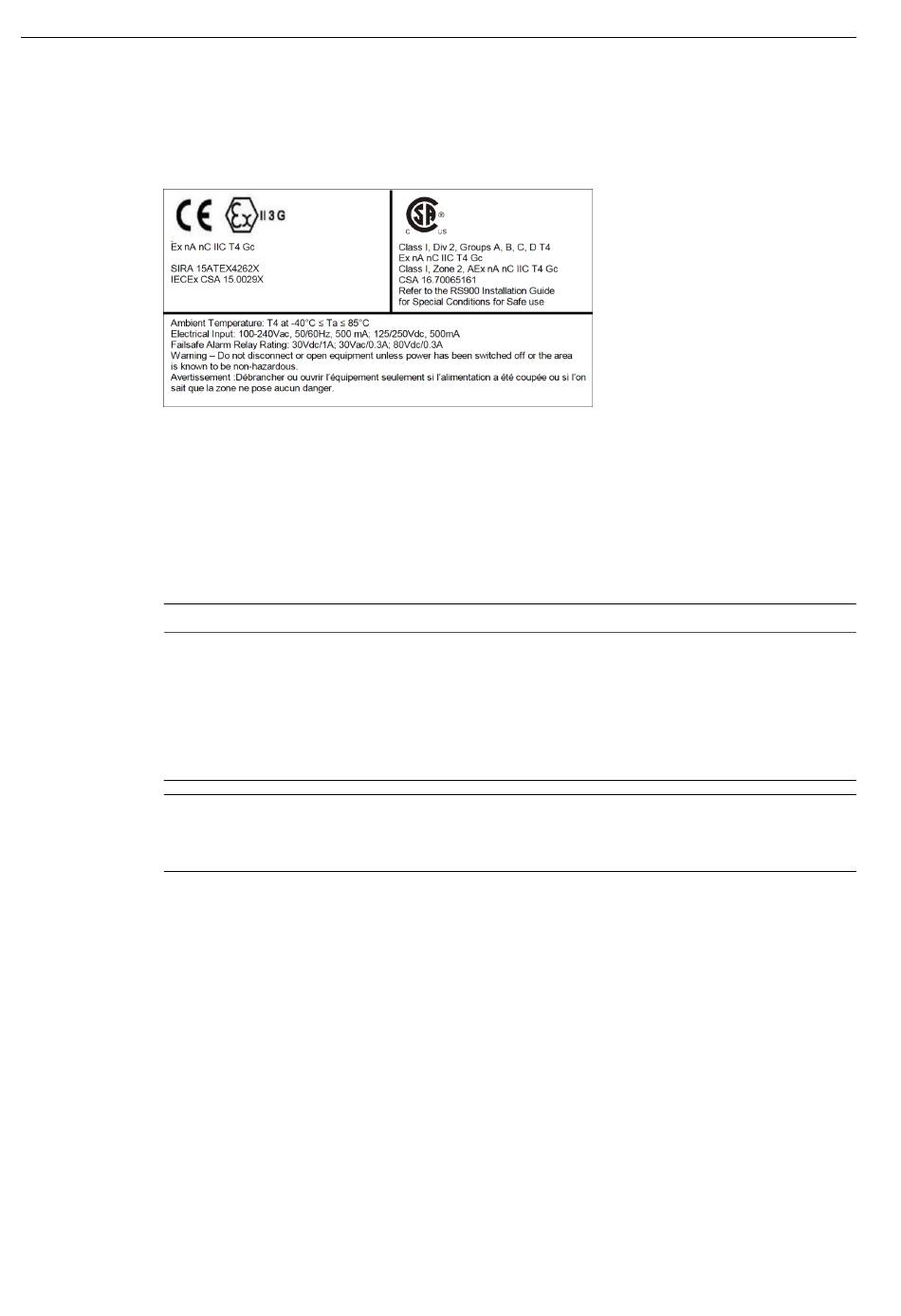

Sample Hazardous Location Label
The following is an example of the RUGGEDCOM RS900 hazardous location label:
Figure 2.1
2.3
Mounting the Device
The RUGGEDCOM RS900 is designed for maximum mounting and display flexibility. It
can be equipped with adapters that allow it to be attached to a DIN rail or panel.
IMPORTANT
Heat generated by the device is channeled outwards from the enclosure. As such, it
is recommended that 2.5 cm (1 in) of space be maintained on all open sides of the
device to allow for some convectional airflow.
Forced airflow is not required. However, any increase in airflow will result in a reduc-
tion of ambient temperature and improve the long-term reliability of all equipment
mounted in the rack space.
Note
For detailed dimensions of the device with either DIN rail or panel hardware installed,
refer to
2.3.1
Mounting the Device on a DIN Rail
The RUGGEDCOM RS900 can be ordered with a DIN rail adapter preinstalled on the
back of the chassis. Use the adapter to mount the device to a standard 35 mm (1.4
in) IEC/EN 60715 or TS35 DIN rail.
RUGGEDCOM RS900
Installation Manual, 02/2020, C79000-G8976-1024-10
Compliance Label (Example)
"Dimension Drawings (Page
26)".
Installing the Device
2.3 Mounting the Device
