Page 2: Precaution

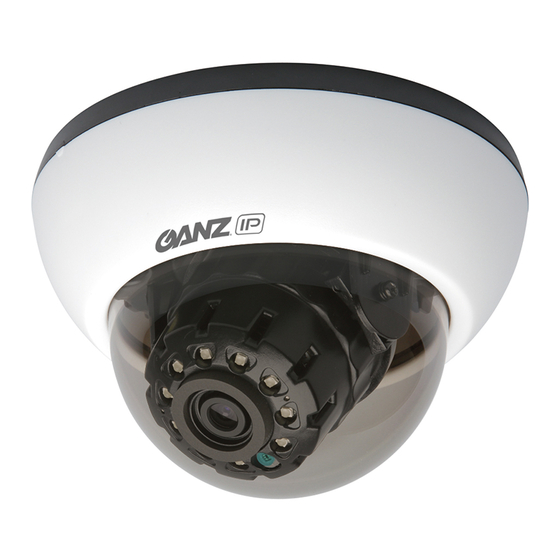

PixelPro GXi Series ZN1-D4FN5 Installation Guide Precaution Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. ... -
Page 3: Table Of Contents
PixelPro GXi Series ZN1-D4FN5 Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 7 4.1. Installation Template ......................8 4.2. Manual adjustment for 3-axis movements ................ 9 4.3. -
Page 4: Features
PixelPro GXi Series ZN1-D4FN5 Installation Guide 1. FEATURES Camera SONY EXMOR 1/2.9” 1080p CMOS Image Sensor Digital Day / Night Video H.264 Baseline, Main, High Profile(MPEG-4 Part 10/AVC), MJPEG(Motion JPEG) Max 30fps in 1080p Text Overlay Network ... -
Page 5: Package Contents
PixelPro GXi Series ZN1-D4FN5 Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The package contains: Camera DC Power Adaptor Universal Plugs Screws and anchor blocks Quick Installation Guide Camera Opener Ferrite Core Installation Template The contents above are subject to change without prior notice. -
Page 6: Part Names
PixelPro GXi Series ZN1-D4FN5 Installation Guide 3. PART NAMES * Models herein and their appearance are subject to change without any prior notice. ① Reset button The reset button can be used for restarting the device or resetting it to Factory Default. Refer to 6.3. -
Page 7: Installation
PixelPro GXi Series ZN1-D4FN5 Installation Guide 4. INSTALLATION 1) Place the installation template (outline shown on the next page) included in the package on the desired installation surface. 2) Drill holes in correct positions based on the template paper, and insert anchor blocks into the holes. -
Page 8: Installation Template
PixelPro GXi Series ZN1-D4FN5 Installation Guide 4.1. Installation Template lation template (Unit: mm) Installation template image’s size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package Caution separately. 03-2014-A... -
Page 9: Manual Adjustment For 3-Axis Movements
PixelPro GXi Series ZN1-D4FN5 Installation Guide 4.2. Manual adjustment for 3-axis movements A. Rotate the lens B. Pan the lens with C. Tilt the lens with with upper lens shell reinforced lower body horizontal platform Adjust the lens to the desired position by manually moving its upper lens shell, reinforced body or horizontal platform in the following directions. -
Page 10: Setting The Image Attribute
PixelPro GXi Series ZN1-D4FN5 Installation Guide 4.4. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The menu of image attribute is available under Video Appearance menu in Setup > Video & Audio > Camera. The following features can be adjusted: Brightness, Contrast, Saturation, Sharpness and Orientation For more detailed information, refer to the provided “PixelPro GXi series Web Page User's Manual”. -
Page 11: Connections
PixelPro GXi Series ZN1-D4FN5 Installation Guide 5. CONNECTIONS In Com Out Com 12VDC 03-2014-A... - Page 12 PixelPro GXi Series ZN1-D4FN5 Installation Guide ① Sensor (DI) connection The camera provides 1 channel D/I. It can be connected to either a voltage type sensor or a relay type sensor as the following figures. The interface type can be controlled by web user interface.
-
Page 13: Configuration
PixelPro GXi Series ZN1-D4FN5 Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 14: Custom Ip Environment
PixelPro GXi Series ZN1-D4FN5 Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area;... -
Page 15: View Video On Web Page
PixelPro GXi Series ZN1-D4FN5 Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click “Install” to proceed. When Setup installation pop-up window appears, click “Install”... -
Page 16: View Video Using Ipadmin Tool
PixelPro GXi Series ZN1-D4FN5 Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. 2. -
Page 17: Reset
PixelPro GXi Series ZN1-D4FN5 Installation Guide 6.3. Reset Perform the following procedures to reset your device: Press the reset button for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings. -
Page 18: Safe Mode
PixelPro GXi Series ZN1-D4FN5 Installation Guide 6.5. Safe Mode What is Safe Mode? Your IP camera or encoder could encounter an unexpected occasion such as broken firmware file or uncompleted loading of firmware file during system booting. To restore the device from the occasions, the device provides the emergency firmware as a factory default. - Page 19 PixelPro GXi Series ZN1-D4FN5 Installation Guide There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed procedure. Note If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance.
-
Page 20: Appendix (A): Specifications
PixelPro GXi Series ZN1-D4FN5 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.9” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 Min. ELECTRICAL Color: 1.0 lux, BW: 0.001 lux (DSS ON) Illumination AGC Control Auto Lens... -
Page 21: Electrical Characteristics
PixelPro GXi Series ZN1-D4FN5 Installation Guide Electrical Characteristics Power Source 12VDC / PoE Power Consumption 2.64W @ 12VDC Video Output Audio Input Audio Output Max 50mA@5VDC, TTL level, VIL=0.8V(max), VIH=2.0V(min) Max 50mA@24VDC On-state resistance: 50 Ω (max continuous) Environment Condition Operating Range Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) -
Page 22: Appendix (B): Power Over Ethernet
PixelPro GXi Series ZN1-D4FN5 Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The IEEE 802.3af-2003 standard allows up to 15.4 W of power the device. -
Page 23: Appendix (C): Dimensions
PixelPro GXi Series ZN1-D4FN5 Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 03-2014-A... -
Page 24: Appendix (D): Hexadecimal-Decimal Conversion Table
PixelPro GXi Series ZN1-D4FN5 Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. Hex Dec 03-2014-A... -
Page 25: Revision History
PixelPro GXi Series ZN1-D4FN5 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.03 09/04/2013 First release version 03-2014-A 03/28/2014 Correct explanation for PoE 03-2014-A...
