Ganz PixelPro GXi Series User Manual

H.264 network camera
Hide thumbs Also See for PixelPro GXi Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
(FW Version 1.8.0.8)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PixelPro GXi Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ganz PixelPro GXi Series

Summary of Contents for Ganz PixelPro GXi Series

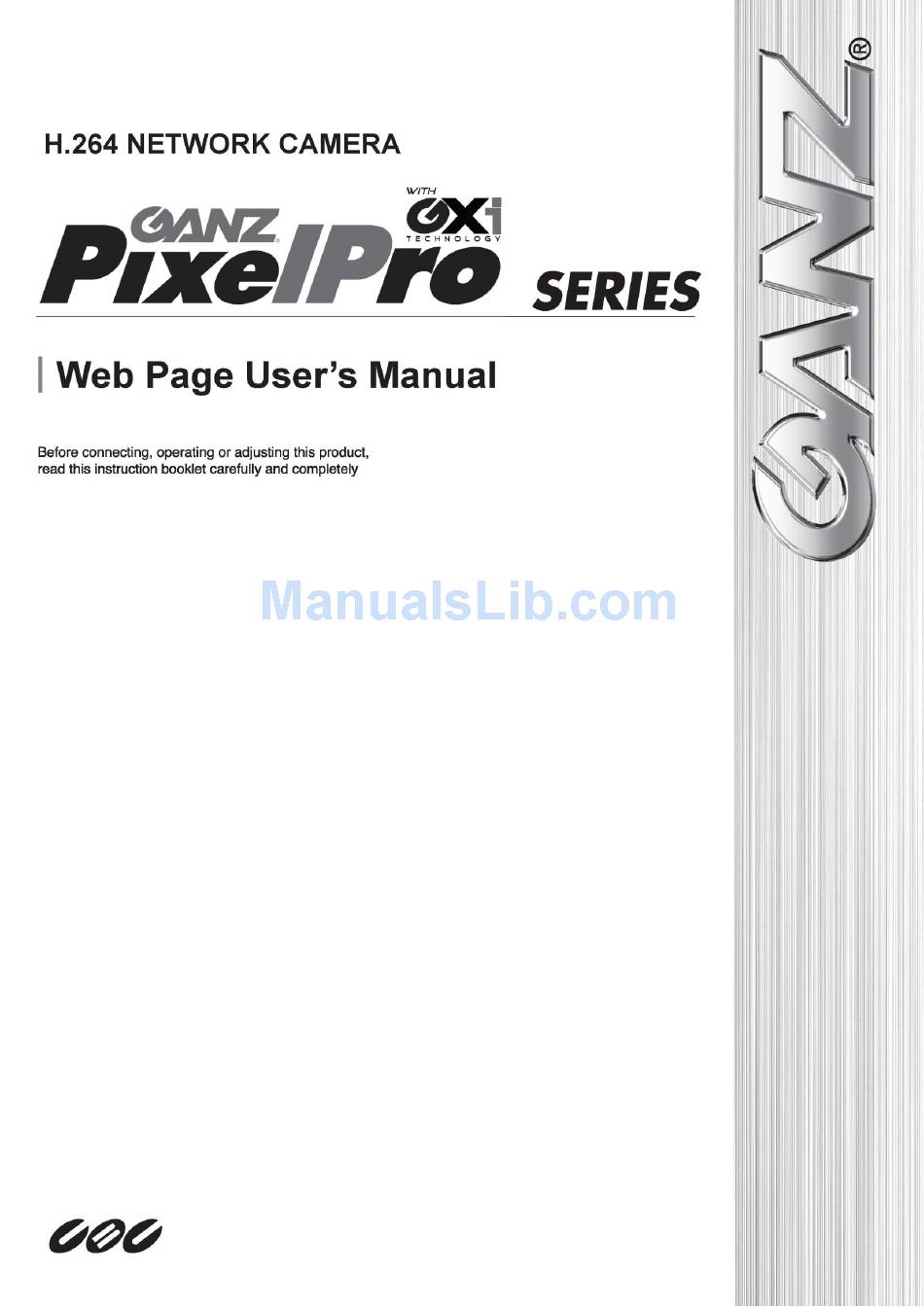

  • Page 1 (FW Version 1.8.0.8)

  • Page 2: Table Of Contents

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Table of Contents WHAT’S NEW ......................5 1. INTRODUCTION ....................7 1.1. Welcome ........................7 1.2. Getting Started ......................7 1.3. IP Address Setting ..................... 7 2. USING A WEB BROWSER ..................9 2.1.
  • Page 3 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.2.3. Zoom/Focus ....................... 33 5.2.4. Burnt-in Text......................34 5.2.5. Encoder profile ......................35 5.2.6. Stream ........................39 5.2.7. Privacy Mask ......................40 5.2.8. Video-Out ........................42 5.3. EVENT CONFIGURATION ..................43 5.3.1. Event Rules ........................ 43 5.3.2.
  • Page 4 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.6.3. Serial Port ........................79 5.7. PTZ settings ......................80 5.7.1 PTZ ..........................80 5.7.2. Touring ........................81 5.7.3. Autorun ........................81 5.7.4. Protocols ........................82 5.8. Maintenance ......................83 5.8.1. Users .......................... 83 5.8.2.

  • Page 5: What's New

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 WHAT’S NEW K1.6.0.4 [Added] Features relevant to the encoder [Added] Video-In menu for the encoder [Added] Video resolution for the encoder [Added] RS-485 configuration page [Change] PTZ configuration page [Added] RACK system information on About page...
  • Page 6 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 [Added] Network loss/detect option in event rules settings [Added] Active & Inactive options under Event Action tab [Change] Display name of recording option under Event Action tab [Added]Notification message added under Event Action tab...

  • Page 7: Introduction

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 1. INTRODUCTION 1.1. Welcome This manual explains how to interface with the H.264 codec supporting IP camera series using the Microsoft® Internet Explorer web browser. The Web Page of the product has been implemented with the protocols below: ...
  • Page 8 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 How to change the default IP address: IPAdminTool software allows users to search and change the IP address of connected devices. The figure below shows a main UI of the IPAdminTool. The IPAdminTool helps to search multiple devices.

  • Page 9: Using A Web Browser

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 2. USING A WEB BROWSER After the network and power connection are established, access the web browser to view the live streaming of the connected device. Installation of the ActiveX is required to see the live page and to access full controls in Microsoft®...
  • Page 10 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 4. Follow the instructions of the dialog boxes, and complete the installation. 5. When the dialog box appears to request user name and password, enter the default value for the administrator account (case-sensitive) as below:...

  • Page 11: Recommended Pc Specification

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 2.2. Recommended PC Specification The following table describes the recommended requirement of the PC system to use a Web browser with our products. Item Recommended D3D support Vista, 7, 8 Direct X Only Internet Explorer 8 or higher version x86 is officially supported.

  • Page 12: Live

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 3. LIVE PAGE CONFIGURATION When the device is accessed via the web browser, the live image of the device appears on the window. To go back to the Live page either from the Storage or Setup page, click Live on the upper left corner of the web page.

  • Page 13: Live

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 3.2. Live Page Menus Option Tab Panel: Clicking the Panel button enables users to hide/show the menu tabs. Stream: The drop-down box displays available streams of the camera for users to select from.
  • Page 14 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Video Control cannot be supported in any browser other than Internet Explorer. Note Record/Stop: Click the Record button to record the current scene of the live image as an AVI file, and click the Stop button when you need to stop recording.
  • Page 15 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Status Tab Status: Status panel displays items listed below. System : Shows Usage of CPU and memory. Time: Time after booting. First Stream/Second Stream/Snapshot: Configuration information of each stream. RTSP Connect List : shows all IP addresses currently accessing the webpage.
  • Page 16 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 PTZ Tab PTZ Tab is shown if the model supports PTZ operation or it is Speed PTZ camera. Movement: The arrow buttons can enable users to move Pan/Tilt. -Zoom In/Out: Click ‘+’ button to zoom in (Tele) and ‘-‘ button to zoom out (Wide).

  • Page 17: Storage Configuration

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 4. STORAGE CONFIGURATION From the Storage page, a user can configure a storage device and recording. 4.1. Storage device settings 4.1.1. USB/SD Storage To search for mounted USB or storage devices and check the device information, click Storage .

  • Page 18: Ftp

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 4.1.2. FTP To specify the FTP server to record the video and audio, click Storage > FTP. Please note that this is the configuration for FTP server used only for the event recording. Please refer to 4.2.3 Event recording and 5.3 Event Configuration for more details.

  • Page 19: Recording

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 4.2. Recording GXi series devices currently support recording limited for H.264 video codec. Please configure the video codec as H.264 if you need to record video. (Refer to 5.2.6 Stream for the codec configuration.) Note 4.2.1.
  • Page 20 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Recording Setting - Prefix of filename Give relevant name that will be used as the recorded file. For easier recognition of duplicate files, the end of every recording file name includes the date and time information as a default.

  • Page 21: Event Recording

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 4.2.3. Event recording To configure the event recording, click Storage > Recording > Configuration, and then select Event of Recording Format. On this page, users can choose the desired storage (SD card, or FTP server) for event recording and set related recording parameters.

  • Page 22: Search And Download

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 4.3. Search and Download 4.3.1. Continuous recording file download To view and download the recorded files, click Storage > Search & Download > Continuous Download. All of the recorded files are listed with maximum 40 files per page on the File Download page.
  • Page 23 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Clicking the playback button will bring a pop-up window with the distinguished user interface depending on the browser. (IE Browser) -Slide bar : it displays the progress of video paly. But it cannot be manually controlled...

  • Page 24: Setup

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5. SETUP To configure the setting values of the device, click Setup on the main page. To access the Setup page, ID and passwords are required. 5.1. Basic Configuration The Basic Configuration provides the menus required for the basic settings that users must configure after the camera installation.

  • Page 25: Focus Assist

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.1.5. Focus Assist This option helps users conveniently set the focus of the camera with vari-focal or fixed lens. This menu will appear only for the models supported with focus assist function.

  • Page 26: Video And Audio

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.2. Video and Audio To change the setting for video input, burnt-in text, encoder profile, and steam, go to the Video & Audio page by selecting Setup > Video & Audio. This menu is configured with five sub menus: Camera, Repositioning, Burnt-in Text, Encoder Profile, and Stream.
  • Page 27 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 09-2014-A...
  • Page 28 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Friendly name Users may provide friendly name (alias) to an individual camera in case when utilizing multiple channels and cameras. Using alias is recommended to distinguish the device where environment requires multiple image feedbacks with multiple monitoring devices.
  • Page 29 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 - Manual : If the auto mode doesn’t work properly or you want to fix the shutter speed, you may select this mode and set the shutter speed manually. - Flickerless : Under the florescent light, the flicker may happen and select proper light frequency to compensate the light flickering.
  • Page 30 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Day & Night Three different day/night modes are supported: Auto, Day, and Night. Select the desired mode based on the installation environment. Default value is Auto. Threshold value for Day to Night and Night to Day can be controlled when the Auto mode is set.

  • Page 31: Repositioning

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.2.2. Repositioning Note: This part is for the repositionable dome cameras only. To change the repositioning setting, go to Setup > Video & Audio > Repositioning 09-2014-A...
  • Page 32 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Movement - Arrow buttons: The camera can move to 4 directions; up, down, left, and right. The camera moves to the desired position while the button is clicked and held. Stop button can be used while using zoon/focus settings or auto focus settings.

  • Page 33: Zoom/Focus

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.2.3. Zoom/Focus Note: Zoom/Focus is for motorized lens cameras only. To change the Zoom/Focus setting, go to Setup > Video & Audio > Zoom/Focus - Zoom/Focus: Three levels of movements are available as wide, tele, near and far.

  • Page 34: Burnt-In Text

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.2.4. Burnt-in Text To change the burnt-in text setting, go to Setup > Video & Audio > Burnt-in Text. The setting of the Burnt-in Text is applied to first stream, second stream (if the device supports) and snapshot modes identically.

  • Page 35: Encoder Profile

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.2.5. Encoder profile To create pre-defined encoder profiles, go to Setup > Video & Audio > Encoder Profile. Stream Profile List: It shows a list of defined encoder profiles. Clicking a highlighted profile shows the detailed information about the profile.
  • Page 36 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 If you click either one of Add, Copy, or Modify button, the profile configuration page appears as shown below. On this page, users can name the profile, add description and configure the settings for each stream, snapshot and audio separately.
  • Page 37 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Resolution The supported resolution in pixels for the current stream profile is listed on the drop down box. Select the desired resolution. For encoders, refer to APPENDIX[A]:ENCODERS. 16:9 mode 4:3 mode 1920x1080 *...

  • Page 38: Audio Configuration

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Variable Bit Rate (VBR) VBR allows a higher bitrate (and therefore more storage space) to be allocated to the more complex segments of media files while less space is allocated to less complex segments. It is used when the system has enough storage and a high quality image is required.

  • Page 39: Stream

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.2.6. Stream To configure predefined stream profile, go to Setup > Video&Audio > Stream. This part has the same structure as in Setup > Encoder Profile, and actual stream is applied on this page.

  • Page 40: Privacy Mask

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.2.7. Privacy Mask To set up the privacy mask, go to Setup > Video & Audio > Privacy Mask. How to configure privacy mask zones except repositioning camera 1. Check Show button of the desired privacy zone ID on the information panel.
  • Page 41 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 repositioning camera 1. Move to the area where privacy mask is needed by clicking the arrow buttons under the Movement tab. 2. Tick the checkbox of a desired Zone ID, type an easily recognizable name under the name tab, and set the mask position and size by entering appropriate values under the Position tab based on Center and Range information.

  • Page 42: Video-Out

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 W(15) (Center50,45) T(45) P(57.5), H: 35 Object H(8.75) W: 60 < Example of Privacy Mask shown on the screen > How to draw the privacy mask above Let’s suppose there is an object you want to hide inside the privacy mask zone.

  • Page 43: Event Configuration

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.3. EVENT CONFIGURATION On the Event Configuration section, users can link event sources such as DI(Digital Input: sensor) and Motion Detection to event actions such as triggering alarms and sending notifications via email or FTP/HTTP/TCP servers.
  • Page 44 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 You can check the defined profile list on the main page, and add, copy, modify or remove an event rule. 1. Tick the checkbox of Enable event rules under Configuration tab, and click apply to begin creating event rules.
  • Page 45 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Event Source Configuration The supported event source may be different depending on the hardware/software specification of each model. Note The event sources can be categorized into three different groups for their mutually exclusive operations.
  • Page 46 PixelPro GXi Series Web Page User’s Manual V1.8.0.8  PIR Select PIR to enable PIR sensor as the event source. There is a hyperlink to access the PIR configuration page.  Alarm(DO#1) Select Sensor(DO#1) to enable DO as the event source. There are three modes: Active: Selecting Active enables detection of digital output.
  • Page 47 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 group (System)  Video loss/detect This option appears only for the encoder. - Loss: Tick this checkbox if you want to generate an event when there is video loss - Detect: Tick this checkbox if you want to generate an event when video is detected.
  • Page 48 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Event Action Configuration The supported event action may be different depending on the hardware/software specification of each model. Note  Active Alarm (DO) Tick the check box to activate the Dos for the event publisher. The number of DO check boxes varies depending on each device.
  • Page 49 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Prebuffer and Postbuffer specify the recording duration before and after the event occurs. But the buffer bar will be inactive when the following options are selected at Event Source tab. - Only Network Loss/detect is selected.

  • Page 50: Motion Detection

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.3.2. Motion Detection To set up the zones and rules configuration required for the motion detection, go to Setup > Event Configuration > Motion Detection. Motion Zone Please configure the motion detection zones by the following steps.

  • Page 51: Network Lost

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 What is Object size? The object size value means the proportion of the macro blocks which has exceeded the configured sensitivity. If you want to configure the zone less sensitive than the factory default (128), set the number value higher;...

  • Page 52: E-Mail Recipient

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.3.4. E-mail recipient To configure the email recipient list for event notification, go to Setup > Event Configuration > E-Mail Recipient. Send rate limit : Users can set a period to block repeated email notifications within the configured time period from o second to 600 seconds.

  • Page 53: Ftp Notification

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.3.5. FTP Notification To configure the FTP server for event notification, go to Setup > Event Configuration > FTP Notification. You can check the defined FTP server list on the main page, and add, modify, or remove server information.
  • Page 54 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Clicking either Add or Modify button will display the configuration page shown below. Name Specify the FTP server name. Description Input a brief description of the server to easily distinguish. Address Enter the IP address of the FTP server.

  • Page 55: Http Notification

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.3.6. HTTP Notification To configure the HTTP server for event notification, go to Setup > Event Configuration > HTTP Notification. You can check the defined HTTP server list on the main page, and add, modify, or remove server information.
  • Page 56 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Clicking either Add or Modify button will display the configuration page shown below. Name Specify the HTTP server name. Description Input a brief description of the server to easily distinguish. Address Enter the IP address of the HTTP server.

  • Page 57: Tcp Notification

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.3.7. TCP Notification To configure the TCP push for event notification, go to Setup > Event Configuration > TCP Push Notification. IP Address, port Type the configuration of TCP server. Connect Timeout TCP push tries to connect to TCP server during the setting time, but if connection is not made during the setting time, TCP push will stop to try to connect.
  • Page 58 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Message Customization Users can customize the message for TCP notification. Clicking the button of Message Customization will generate a pop-up window like below. - Message Header: To use the customized message header, click the checkbox of Enable using customized message header.

  • Page 59: Tcp Server

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.3.8. TCP Server To configure the TCP server, go to Setup > Event Configuration > TCP Server. You can use TCP server to get the event notification from the device and send them to the client application.

  • Page 60: Schedule

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.3.11. Schedule Users can create a list of schedules to use them for the combination with the other event sources. To configure schedules, go to Setup > Event Configuration > Schedule. You can add, modify, or remove the schedules on the main page.
  • Page 61 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Clicking Add or Modify will display the configuration page shown below. Name Type an easily recognizable name so that you can conveniently select it by the name on the drop-down list when using it in the event source.

  • Page 62: Network Configuration

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.4. Network Configuration 5.4.1. TCP/IP(DHCP, Static IP, DNS setting To change the TCP/IP setting, go to Setup > Basic Configuration > TCP/IP. 09-2014-A...

  • Page 63: Ip Address Configuration

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 IP Address Configuration User can set up network configuration of IPv4 or IPv6 here. Enable IPv4 : tick this option to activate and configure IPv4 settings. - IP Configuration by DHCP If you want to get your IP from DHCP server automatically, check this option and click the Apply button.

  • Page 64: Web Server

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.4.2. Web Server To change the HTTP server setting, go to Setup > Network Configuration > HTTP. The default value of web server is set to HTTP. To change its setting from HTTP to HTTPS, select HTTPS from the menu.
  • Page 65 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 HTTPS Setting The features rec-tangled in red will appear when HTTPS is selected on the configuration tab. Certificate Create & Install Create & install self-signed certificate: Click the Create button to create a self-signed certificate.

  • Page 66: Ntp Server

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.4.3. NTP Server To change the NTP server setting, go to Setup > Network Configuration > NTP. NTP Server Lists Users can set up to four NTP servers. To enable the NTP servers, DNS server setting must be completed from Setup >...

  • Page 67: Rtsp/Rtp (Multicast Or Unicast)

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.4.5. RTSP/RTP (multicast or unicast) For the RTSP/RTP setting, go to Setup > Network Configuration > RTSP/RTP. Select the correct streaming tab. The product supports multicast and unicast for both stream channels. Click the appropriate stream tab and configure the RTP session as required by your network system.
  • Page 68 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 RTSP Configuration Set the port number for RTSP streaming. RTSP Authentication option is available for those who have implemented the authentication process. It has two methods. - Basic: It uses simple way of encryption of ID and Password with plain text.

  • Page 69: Mdns (Multicast Dns)

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Port Set the port number used for router to receive the streaming data from the product (No need for unicast). The range of the port numbers is from 1 to 65535. Be sure that there are specific port numbers that you cannot use as they are already assigned to other necessary protocols.

  • Page 70: Smtp

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.4.8. SMTP To change the SMTP setting, go to Setup > Network Configuration > SMTP(E-Mail). You can set the user’s email account and server to apply this SMTP for the event subscriber or any other SMTP required purpose.

  • Page 71: Ddns (Dynamic Dns)

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Use authentication to log in this server If login information is mandatory before connecting to the server, check the box. Once the box is checked, the user name and password boxes appear for user to type.

  • Page 72: Snmp

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.4.10. SNMP Simple Network Management Protocol (SNMP) is used in network management environment to monitor network-attached devices for their conditions. By retrieving the system information, it allows to manage network architecture, performance, device, and security. To enable SNMP, select the Enable check box.
  • Page 73 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 How to add a user for VACM Setting 1. Input the User name and Password to create a profile. 2. Authentication Protocol : Select authentication protocol type as MD5 or SHA. 3. Privacy Protocol : Select privacy protocol as CBC_DES or CFB_AES.

  • Page 74: Ip Filtering

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.4.11. IP Filtering If you want to control the network traffic to your camera, go to Setup > Network Configuration > IP Filtering. Configuration - Enable: Tick the checkbox if you want to use IP filtering function.

  • Page 75: Hosted Service

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.4.12. Hosted Service To Configure the hosted service connection, go to Setup > Network Configuration > Hosted Service. Tunneled Link Setup Setting 1. When you enable Hosted Service, you should type server address, TCP pot of hosting server and update interval.

  • Page 76: Wireless Lan

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.4.13. Wireless LAN Note: This part is for the camera with wi-fi module only. To configure the wireless mode, the device needs to be connected to a wired network for the first time. Setup > Network Configuration > Wireless Lan 1.

  • Page 77: Vca

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Link-Local Address This is a built-in function that assigns the device an additional IP address, which can be used to access the unit from other hosts on the same segment of the local network. An IP address is automatically assigned when the camera boots up.
  • Page 78 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Sensor (DI) Configuration Resource type Select the type of sensor module. It can be either voltage [maximum 5 volts] or relay. Trigger type Select type ‘Normally open’ or ‘Normally closed’. Interval between triggers Set the detection time interval for event publishers.

  • Page 79: Pir

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.6.2. PIR Note: This part is for the camera with passive infrared (PIR) sensor only. Passive infrared sensor (PIR sensor) is a motion detector that senses object’s radiating infrared (IR) light in its field of view.

  • Page 80: Ptz Settings

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 SerialOverIP This section is enabled only when you select SerialOverIP for the serial port mode. Select the desired communication mode: UDP, TCP Client, or TCP Server. Once the mode has been selected, type the IP address of client and port number in the text boxes of SerialOverIP section.

  • Page 81: Touring

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.7.2. Touring Configure the Touring 1. Select the Touring number from 1 to 6 to define. 2. Select the Preset number to add. 3. Select the Interval in second which stops at.

  • Page 82: Protocols

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.7.4. Protocols Protocols configuration allows users to set the PTZ protocols and the PTZ address. Available protocols are; TBT(T-Pro), American Dynamics, Bosch, CDC, Elbex, JVC, Kalatel(ascii), Panasonic (CS850), Pelco-d(probe), Pelco-d, Pelco-p, Convex, and Samsung...

  • Page 83: Maintenance

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.8. Maintenance 5.8.1. Users To create/remove/modify a user group, go to Setup > Basic Configuration > Users. How to add a user To add a user for the webpage, 1. Go to Setup > Basic Configuration > Users.
  • Page 84 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 User Authentication Enable or disable for anonymous viewer to connect Live page. How to modify a user To change your password or user name, 1. Go to Setup > Basic Configuration > Users or Basic Configuration > Users.

  • Page 85: Date & Time

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.8.2. Date & Time Time setting is very significant for all parts of the product server because it affects the log of streaming and burnt-in text of video. To configure the date and time, go to Setup >...

  • Page 86: Api

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 New camera/encoder time Select one of 3 options:  Synchronize the camera/encoder time with current client system time  Synchronize the camera/encoder time with NTP server  Set the camera/encoder time manually 5.8.3.
  • Page 87 PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Firmware update via the tool To enable the firmware update via the IPAdminTool.exe, highlight the device to upgrade the firmware, and click Update button. Then, the FWUpdate window appears where users can set multiple devices to upgrade simultaneously.

  • Page 88: System Log

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.8.6. System Log To download system log, go to Setup > Maintenance > System Log and follow the directions as below. Click Download System Log, then file download dialog box will appear.

  • Page 89: Event Search

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Show notification list Clicking the button shows all available FTP notification list at the bottom. Load notification into setting Clicking Load notification into setting will copy pre-defined FTP server information in FTP Notification List under Event Configuration into FTP Log Backup Configuration.

  • Page 90: Reset All Settings

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.8.9. Reset All Settings All information is initialized except user, network and time zone. To reset the system setting to the factory default setting, go to Setup > Maintenance > Reset All Setting and follow the directions below.

  • Page 91: Reboot

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.8.10. Reboot To reboot the system on the web browser, go to Setup > Maintenance > Reboot. Click Reboot button to reboot the device. 5.9. Activation To activate the license for the device, go to Setup > Activation.

  • Page 92: About

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 5.10. About 5.10.1.Information To find the product information including the hardware specification and software version, go to Setup > About > Information. 5.10.2. License To find the license information of the open source software that is used in the camera/encoder.

  • Page 93: Appendix(A) : Encoders

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 APPENDIX(A) : ENCODERS Video-In This part is corresponding to 5.2.1. Camera (Channel naming/video format/color control) in Video and Audio. Only the different features from cameras will be covered on this part. For the other common features, refer to 5.2.1.

  • Page 94: Encoder Profile

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Encoder Profile This part is corresponding to Stream Configuration in 5.2.5. Encoder profile. Only the different features from cameras will be covered on this part. For the other common features for stream configuration, refer to 5.2.5. Encoder profile.

  • Page 95: Information

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 Information This part is corresponding to 5.9.1. Information in About. There is some additional information on the information page in case the device is a blade card, or an encoder, or a rack.

  • Page 96: Revision History

    PixelPro GXi Series Web Page User’s Manual V1.8.0.8 REVISION HISTORY MANUAL# DATE (M/D/Y) COMMENTS 01A.01 Nov/09/2011 Created 02A.01D Feb/29/2012 FW V 1.2.0. updated 02A.02 Apr/05/2012 Official FW V 1.2.0 updated 02A.03 May/17/2012 Contents update and fixes 02A.04 Aug/16/2012 Live Page screen capture (PTZ) part removed 02A.05...
