PixelPro GXi Series
ZN1-Q3FN2 Installation Guide
03-2014-A
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXELPRO SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for Ganz PIXELPRO SERIES

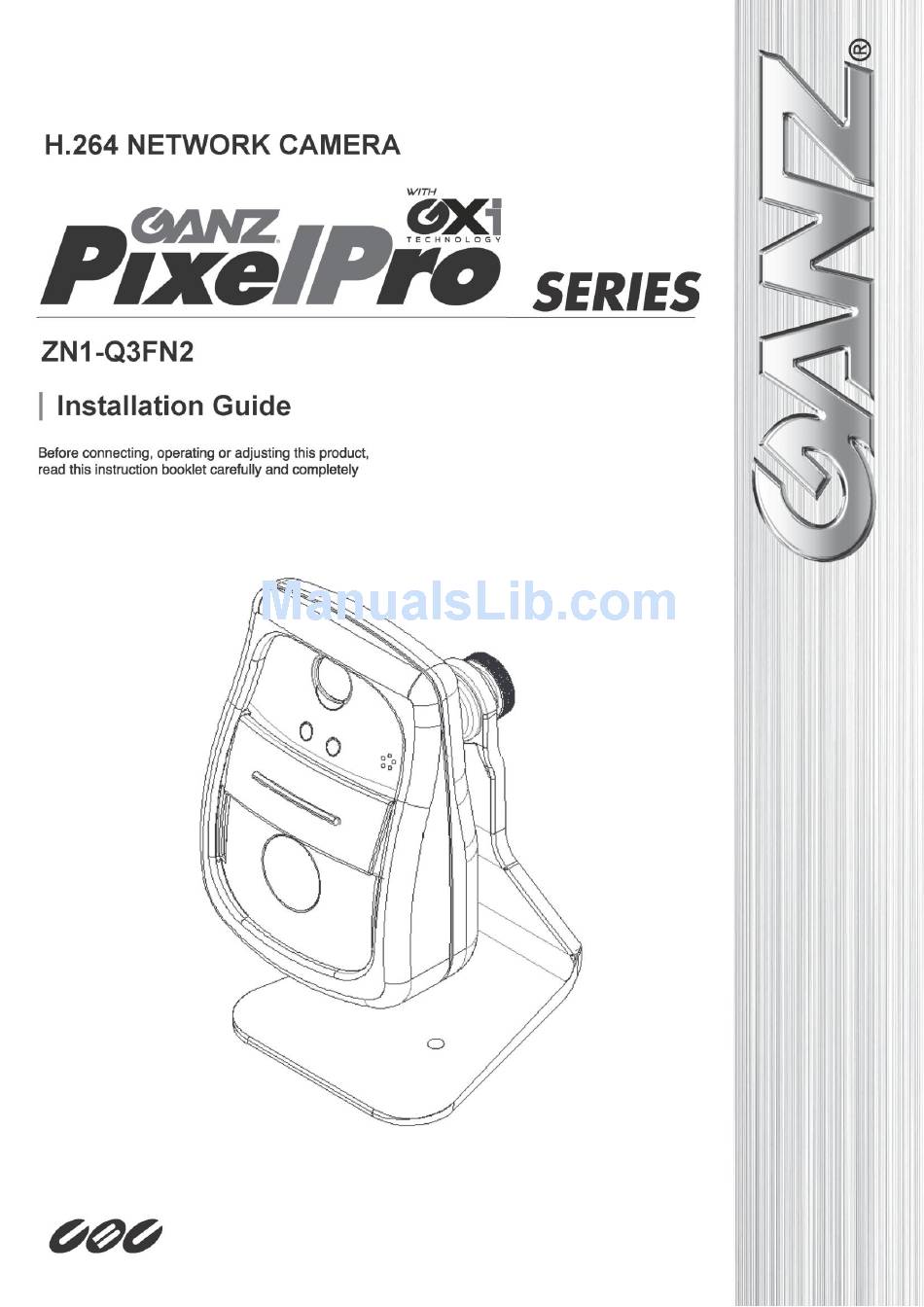

  • Page 1 PixelPro GXi Series ZN1-Q3FN2 Installation Guide 03-2014-A...
  • Page 2: Precaution

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide Precaution  Please read this manual carefully before installing the unit.  Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit.  Please do not install the camera in a place exposed to direct sunlight. ...
  • Page 3: Table Of Contents

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 7 4.1. Installing the camera ......................7 4.2. Setting the Image Attribute ....................8 5.
  • Page 4: Features

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 1. FEATURES Camera  1/4” 720p CMOS Image Sensor  Digital Day/Night   Built-in Passive infrared(PIR) motion sensor Video  H.264 Baseline, Main, High Profile(MPEG-4 Part 10/AVC), MJPEG(Motion JPEG)  Max 30fps in 720p ...
  • Page 5: Package Contents

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The package contains: Camera DC Power Adaptor Screws and Anchor Blocks Terminal Block DC12V ETHERNET Quick Installation Guide The contents above are subject to change without prior notice. Note 03-2014-A...
  • Page 6: Part Names

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 3. PART NAMES ① ⑥ ③ ② ⑪ ④ ⑦ ④ DC12V ⑤ ⑨ ETHERNET ETHERNET ⑧ ⑩ * Models herein and their appearance are subject to change without any prior notice. ① Passive Infrared(PIR) sensor The PIR sensor is used to detect movement of objects.
  • Page 7: Installation

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 4. INSTALLATION 4.1. Installing the camera Drill two holes on the desired position of installation, and insert anchor blocks into the holes. Position the mount bracket to anchor blocks. Fasten the mount bracket with screws. Manually position the camera to area where it will be monitored.
  • Page 8: Setting The Image Attribute

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 4.2. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The menu of image attribute is available under Video Appearance menu in Setup > Video & Audio > Camera. The following features can be adjusted: Brightness, Contrast, Saturation, Sharpness and Orientation.
  • Page 9: Connections

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 5. CONNECTIONS ② ① DC12V ④ ③ ETHERNET ① Sensor (DI) connection Sensor (DI) can be connected to either a voltage type sensor or a relay type sensor like the following figures. The interface type can be controlled by web user interface. Refer to the provided “PixelPro GXi series Web Page User's Manual”...
  • Page 10 PixelPro GXi Series ZN1-Q3FN2 Installation Guide ② Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VDC 50mA Do not exceed the maximum relay rating. Caution Internal Device Relay Type ③ LAN connection This is RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet cable (RJ45) to connect the device to a hub or a router in the network.
  • Page 11: Configuration

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device.
  • Page 12: Custom Ip Environment

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area: 1.
  • Page 13: Wireless Lan

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 6.1.3 .Wireless LAN To configure the wireless mode, the device needs to be connected to a wired network for the first time. Setup > Network Configuration > Wireless Lan 1. From the USB Wireless AP List tab, select the wireless network where the device will be located under.
  • Page 14 PixelPro GXi Series ZN1-Q3FN2 Installation Guide 4. Disconnect the wired cable from the camera and wait for 10~15 seconds. 5. Use IPAdminTool* to identify the device or type URL in Windows Explorer to access. Link-Local Address This is a built-in function that assigns the device an additional IP address, which can be used to access the unit from other hosts on the same segment of the local network.
  • Page 15: View Video On Web Page

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default user name and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click “Install”...
  • Page 16: View Video Using Ipadmin Tool

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras, and shows the product name, IP address, MAC address and etc. 1. From the IPAdmin Tool’s product list, select the device by highlighting it. 2.
  • Page 17: Reset

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 6.3. Reset Perform the following procedures to reset your device: Press the reset button for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings.
  • Page 18: Safe Mode

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide 6.5. Safe Mode What is Safe Mode? Your IP camera or encoder could encounter an unexpected occasion such as broken firmware file or uncompleted loading of firmware file during system booting. To restore the device from the occasions, the device provides the emergency firmware as a factory default.
  • Page 19 PixelPro GXi Series ZN1-Q3FN2 Installation Guide There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed procedure. Note If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance.
  • Page 20: Appendix (A): Specifications

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/4” 720p CMOS Effective Pixels 1280 x 720 Scanning System Progressive scanning AGC Control Auto Color:1.0 Lux Minimum Illumination B/W 0.001 Lux (DSS ON) Lens 2.7mm F2.0 Field of View 91°...
  • Page 21: Functional Features

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide Functional Features Digital Input and Output 1 / 1 PIR Sensor Supported 10 / 100 Base-T Network Wi-Fi Supported (IEEE 802.11b/g/n) QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS, Protocol DynDNS, NTP, SNMPv1/v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLSv1...
  • Page 22: Appendix (B): Dimensions

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide APPENDIX (B): DIMENSIONS DC12V ETHERNET (Unit: mm) 03-2014-A...
  • Page 23: Appendix (C): Hexadecimal-Decimal Conversion Table

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide APPENDIX (C): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. 03-2014-A...
  • Page 24: Revision History

    PixelPro GXi Series ZN1-Q3FN2 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.00 08/22/2012 Initial release version 01A.01 09/07/2012 Minimum Illumination spec revised 01A.02 10/05/2012 microSD class level explained 01A.03 10/17/2012 Model bracket stand design change 01A.04 10/24/2012 Wireless MAC Address Identification description added 01A.05 10/26/2012 Setup Procedure description updated...
